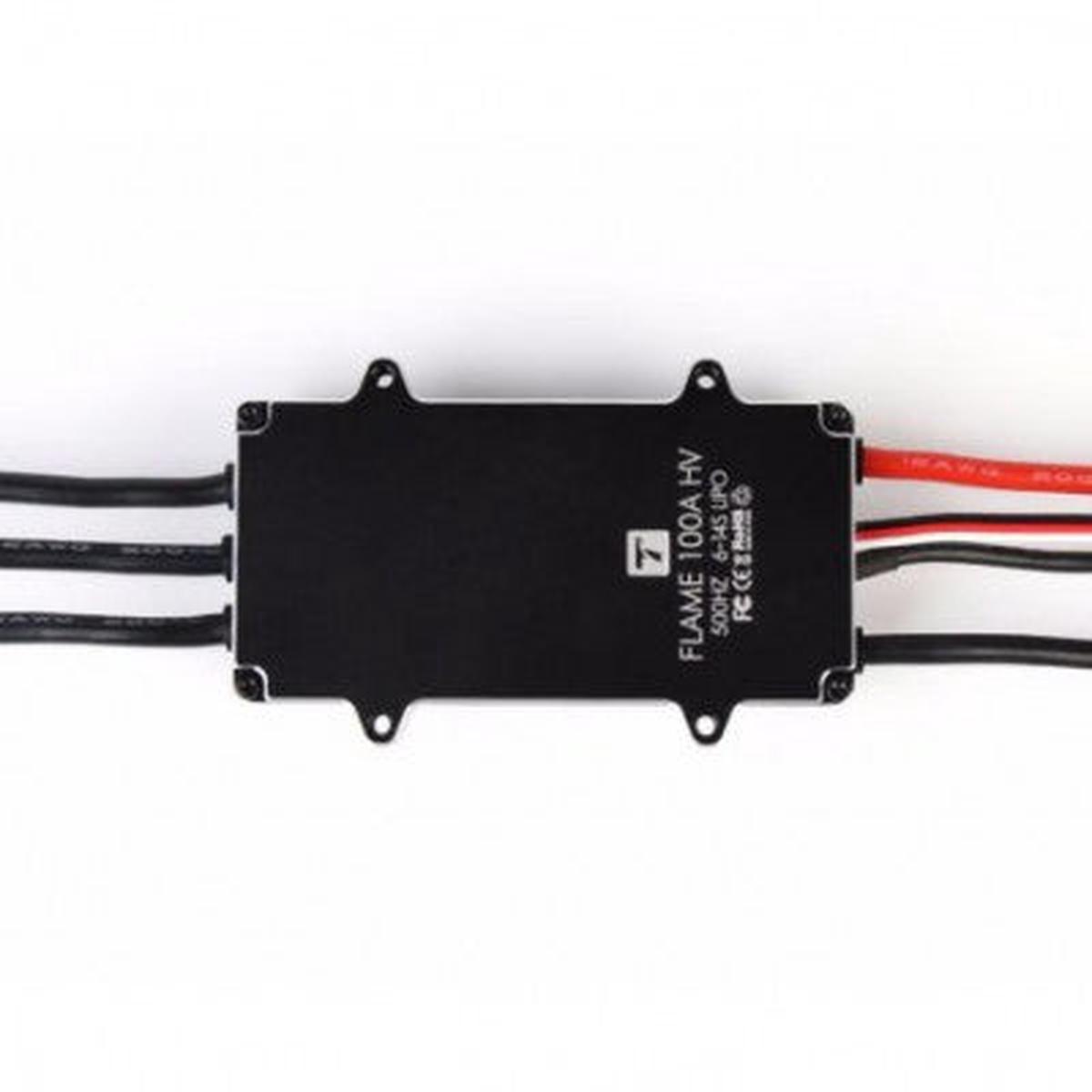

T Motor Flame 100A 14S ESC

T-motor 100A 500Hz 6-14S Flame Type ESC

Efficient and reliable ESC with waterproof and dustproof design

• Input Voltage: 6-14S
• Continuous Current: 100A
• Peak Current: 120A (10S)
• Compatibility: U12 Motors
• Special Design: Multi-rotors
• Protection Features: Low-voltage cut-off, over-heat, throttle signal loss
• Start Modes: Normal, Soft, Super-Soft
• Throttle Range: Configurable

Features:

• Efficient dissipation with layered structure
• IP55 Industrial Standard for waterproof and dustproof
• Multiple protection features for safe operation
• 3 start modes for different aircraft types

The T-motor 100A 500Hz 6-14S Flame Type ESC is a high-quality ESC designed for multi-rotors. It offers a continuous current of 100A and a peak current of up to 120A (10S). The ESC is compatible with U12 Motors and comes with multiple protection features including low-voltage cut-off, over-heat protection, and throttle signal loss protection.

With three start modes (Normal, Soft, Super-Soft), this ESC is suitable for fixed-wing aircraft and helicopters. The throttle range is configurable and fully compatible with all transmitters available on the market. It provides a smooth, linear, and precise throttle response for optimal performance.

For easy programming in the field, a pocket-sized Program Card is available for separate purchase. The program card allows you to activate the music-playing function of the ESC, with a selection of 15 songs to choose from.

Package Includes: 1 x T Motor Flame 100A 14S ESC

Images are for illustration only; actual product may vary.
