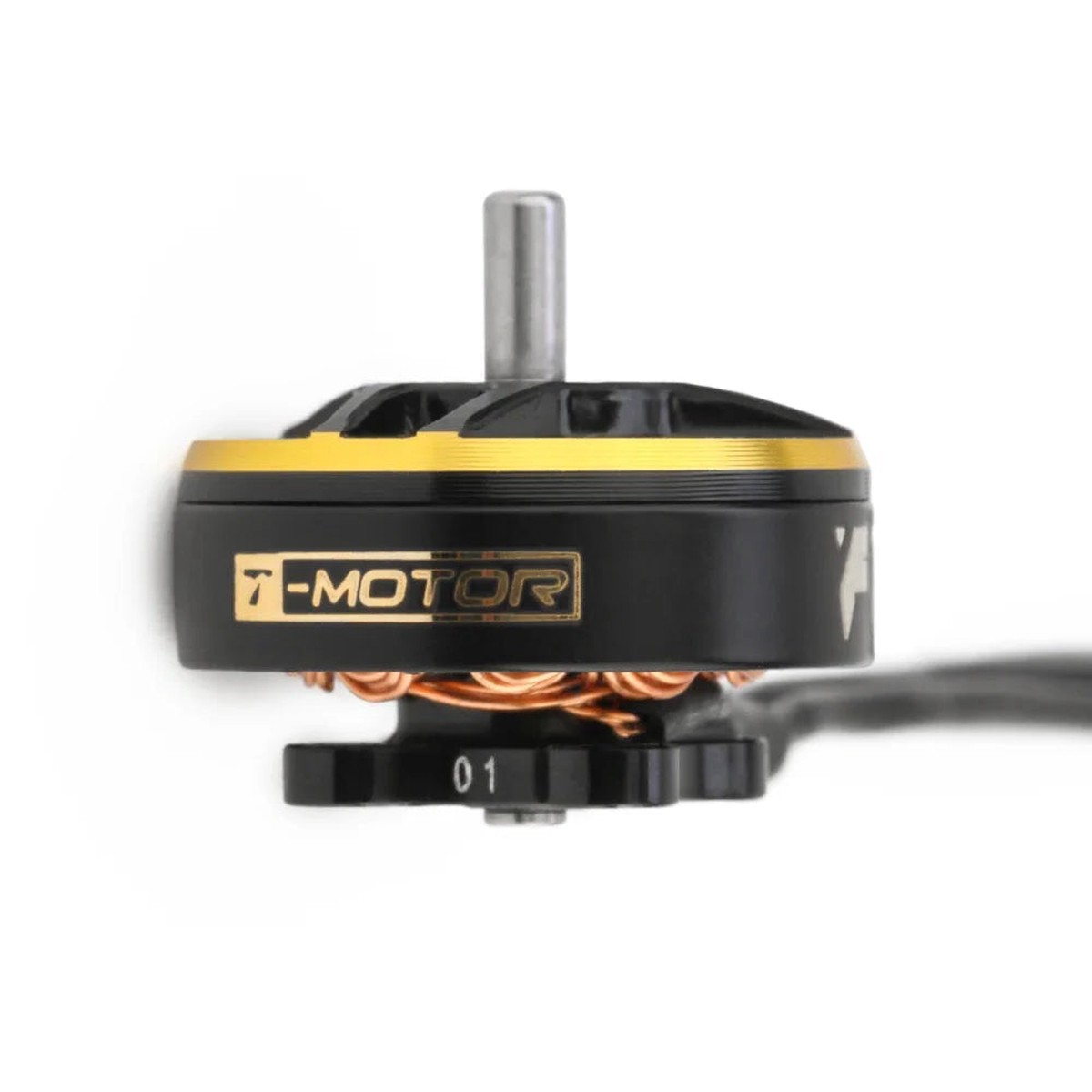

T-MOTOR F1303 5000KV 2-3S Brushless Motor for Ultralight, Silent, 2mm Shaft for 3-Inch FPV Drone

The T-MOTOR F1303 5000KV Brushless Motor is designed for pilots seeking a silent, efficient, and ultra-lightweight solution for micro FPV drones. Ideal for 2.53 inch builds using 2S3S LiPo, the F1303 combines low-noise design with reliable power output and incredible smoothness, making it a top choice for freestyle and cruising.

Featuring a customized de-noising magnet, this motor reduces operational sound while maintaining performance, especially in tight spaces or stealth-style builds. The 2mm prop shaft ensures tighter tolerances and low weight, but please note: only specific props with 2mm hubs are compatible.

Key Features

• 5000KV output optimized for smooth, silent flight

• Lightweight at only 6.1g (with wires)

• Designed for Lite 3-inch FPV freestyle or cruising setups

• 2mm prop shaft for reduced weight and compact profile

• Silent operation with custom de-noising magnet structure

• Compatible with 2S3S LiPo batteries

Compatibility Notice:

This motor features a 2mm shaft, compatible only with select propellers. Recommended 2mm hub props:

• HQProp HeadsUp T3.1×1.8×3 Tiny Prop

• Gemfan 3018 (Clear Color Only)

Technical Specifications:

Package Includes:

• 1 T-MOTOR F1303 5000KV Brushless Motor (2mm Shaft)

Silent and efficient motor, perfect for light 3-inch drones. F1303 KV5000 ensures optimal performance with minimal noise.

T-MOTOR offers a free-flowing flight experience with customized de-noising magnets for smooth, soft operation.

F1303 motor for 3″ toothpick, light frame; exquisite and tiny design.

T-MOTOR KV5000 specifications: 9, 16.5, 4-M2, 14.55mm length, 6.1g weight.

T-MOTOR specifications: 16.5*14.55mm, 280m resistance, 9N12P config, 2-35V Lipo, 0.32A idle current, 7.45A peak current, 87W max power. Test report includes thrust, voltage, current, RPM, power, efficiency at various throttle levels.

F1303 KV5000 and GF 2540 motor performance data at various throttle percentages, including voltage, current, power, RPM, efficiency, and temperature. Ambient temperature: 27C. Motor surface temp @100% throttle for 1 min.

T-MOTOR product includes Motor and Parts Bag. Verify contents before use; contact support for missing items.
