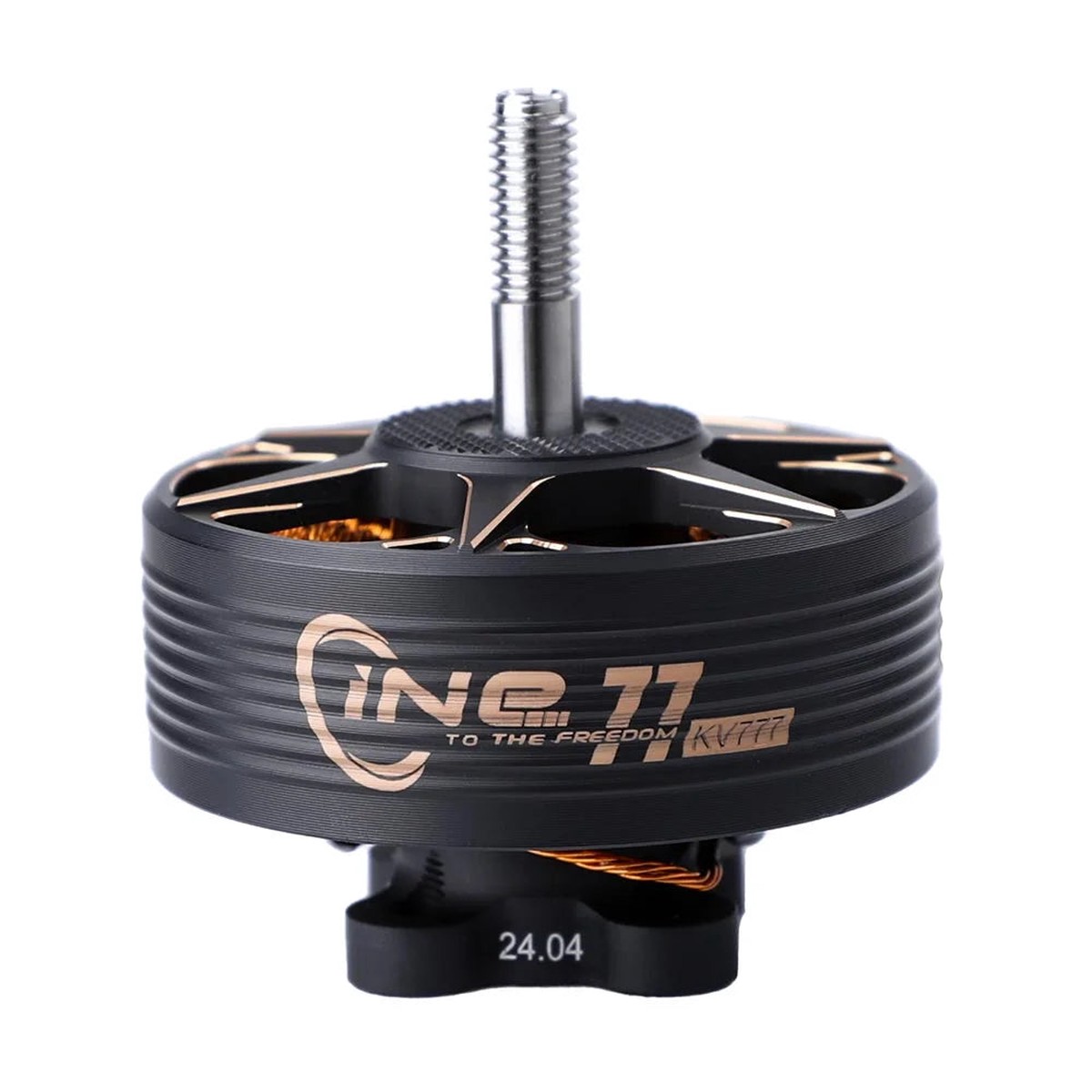

The Ultimate Cinematic Power is Here!Meet the TMOTOR Cine77 the ultimate motor for your Cinematic FPV drones! With a jaw-dropping thrust of over 5kg, this powerhouse ensures your cinematic drone footage is smooth and stable, no matter how wild your flight. Enjoy more than 7 minutes of flight time at 2.5kg load, and experience top-notch control with enhanced torque and superb heat dissipation. Perfect for 9-10 inch X4 or X8 drones, the Cine77 takes your aerial adventures to the next level. Get ready for sky-high performance with TMOTOR!

Features

• Over 5 kg Thrust:Handles heavy payloads effortlessly.
• 7-12 Minutes Flight Time:Extended operational duration.
• Enhanced Torque:Precise control and rapid response.
• Advanced Cooling:Effective heat dissipation with durable design.
• Efficient 6S Operation:Reduces heat buildup and ensures reliability.
• Versatile Compatibility:Suited for 9-10 inch X4/X8 drones.
• Robust Build:High-protection design for durability.

Superior Power and Efficiency

One of the Cine77s standout features is its impressive thrust capability. Unlike conventional motors such as the 3120, which often require 8S or 12S battery configurations and are prone to overheating, the Cine77 offers robust performance with 6S voltage. This efficiency translates into extended flight times, allowing up to 7-10 minutes of continuous operation with a 2.5 kg load, depending on the battery configuration. The Cine77s efficiency means you spend less time managing battery life and more time capturing stunning footage.

Comparative Advantages

When compared to its competitors, such as the V3120 and V3115 motors:

• 3120 Motor:Known for its high thrust and compact installation, the 3120 is suitable for heavy loads above 5 kg. However, it requires higher power (often 12S), has complex installation, and is prone to heat buildup. The Cine77 offers a balanced performance between the 3115 and 3120, with a maximum thrust of 5-5.6 kg, and is more efficient and cooler under load.

• 3115 Motor:While the 3115 is more affordable and features a smaller diameter for high-speed applications, it lacks the efficiency and torque of the Cine77. The Cine77s improved torque and cooling capabilities ensure better performance and control, especially under heavy loads and extended flight times.

Recommended

Power combo

Cine77 3120 Cinematic Power Combo

• Frame: 9.5-10.5 X4″ X8 Frame


• ESC: CINE77 477KV:FPV 12S 8S Single ESCCINE77 777KV&977kv80a 8 in 1 ESC

• FC:F7 PRO

• Compatible Propellers:9.5-12inch FPV propellers

Specifications

CINE77 motor dimensions and key specs like 43.848.2 mm size, 5 mm shaft, and 4M3 mounting pattern help confirm fitment in cinematic drone builds.

The Cine77 motor specs list KV options (777/977), rated voltage (8S/6S), and up to 6429g max thrust for planning a cinematic drone power setup.

CINE77 motor specs list an X8 setup with 6S or 8S LiPo options, recommended takeoff weight within 89 kg, and max takeoff up to 1315 kg.

The CINE77 KV477 test data lists voltage, throttle, current, RPM, thrust, power, efficiency, and torque for C10.5X5X3 and HQ1050X3 propellers.

Performance data breaks down voltage, throttle, current, RPM, thrust, power, efficiency, and torque for CINE77 setups with different propellers.

T-Motor CINE77 thrust test data lists voltage, throttle, current, RPM, thrust, power, efficiency, and torque for different propellers and KV options.

Test data for the CINE77 KV977 lists voltage, throttle, current, RPM, thrust, power, efficiency, and torque across multiple propellers.

Includes

• 1x T-Motor CINE Series Cine77 3120 Motor (477KV ,777KVor 977KV options)
• 1x Hardware Pack
