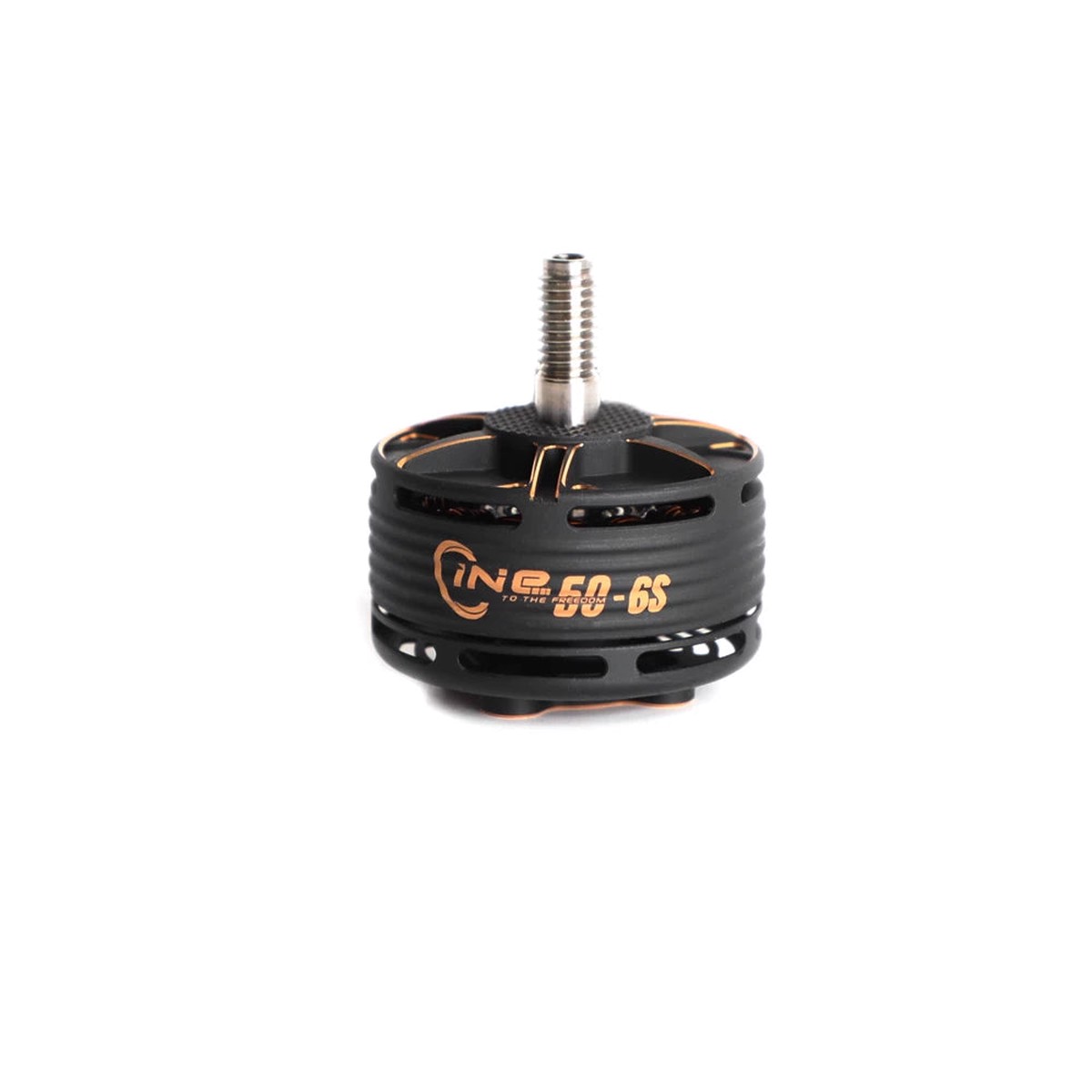

T-Motor Cine60 6S Motor for 6-inch X4 Cinematic FPV Drone – IP45, 12N14P, 782W, 1789g

Overview

The T-Motor Cine60 6S Motor is a motor designed for 6-inch X4 cinematic FPV drone builds. It features an IP45 waterproof and dustproof class rating and is specified with 12N14P configuration, imported 684ZZ bearings, and a 24AWG*180mm lead.

Key Features

• Nickel plated arc magnet
• Waterproof and dustproof class: IP45
• Dynamic balance requirements standards: <= 5mg
• Coil insulation test: 200V withstand voltage test
• Configuration: 12N14P
• Bearings: Imported 684ZZ

Customer service: https://rcdrone.top/ or [email protected]

Specifications

Technical Drawing (selected dimensions)

• 34.03
• 30.9
• 13
• 4-M3
• 16
• M5
• 12.5
• 8

Recommended Setup (from test sheet)

• Motor: Cine60 6S
• Frame Type: X4
• Lipo Cells: 6S
• Prop: T6143-3 (6-inch Tri-blade propeller, pitch 3.0-4.5)
• ESC: F7 PRO
• FC: F55A PRO II
• Recommended takeoff weight range: Within 1000g
• Max Takeoff Weight: 2000g

Test Data (flight time)

1. 2200mah 6s battery (310g), load weight 160g, AUW 900g, flight time 16 minutes.
2. 1550mah 6s battery (260g), load weight 160g, AUW 850g, flight time 12 minutes.
3. 5000mah 6s battery (420g), load weight 160g, AUW 1100g, flight time 34 minutes.
4. 5000mah 6s battery (420g), without payload, AUW 940g, flight time 40 minutes.
5. 1550mah 6s battery (260g), without payload, AUW 690g, flight time 16 minutes.

Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 16-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync).

Test Data Tables

Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. The data is obtained by T-HOBBY’s independent platform test and is only for reference.

Cine60 6S + T-HOBBY T6143-3

Cine60 6S + HQ 6*3*3

Cine60 6S + HQ 6*4.3-2

Whats Included

• 1 x T-Motor Cine 60 6S Motor
• Parts Bag*1

Applications

• 6-inch cinematic FPV drone builds
• X4 frame setups (as recommended)

Details

T-Motor emphasizes protective design for reliable operation in harsh conditions, with corrosion, sand, and dust resistance.

T-Motor Cine60 motor uses a 4x M3 mounting pattern and a compact 30.934.03 mm body, with IP45 rating and 24AWG 180 mm leads listed in the specs.

Cine60 motor specs include a 30.934.03 mm body, IP45 rating, 12N14P configuration, and 24AWG 180 mm leads for wiring.

The Cine60 6S setup guide lists a T6143-3 6-inch tri-blade prop, 6S LiPo power, and a recommended takeoff weight within 1000g (max 2000g).

Cine60 6S throttle test data lists current, RPM, thrust, power, and efficiency values with HQ 633 and 64.3-2 propellers.

The Cine60-6S motor includes a parts bag with mounting hardware, plus a thrust-efficiency chart for different prop setups.
