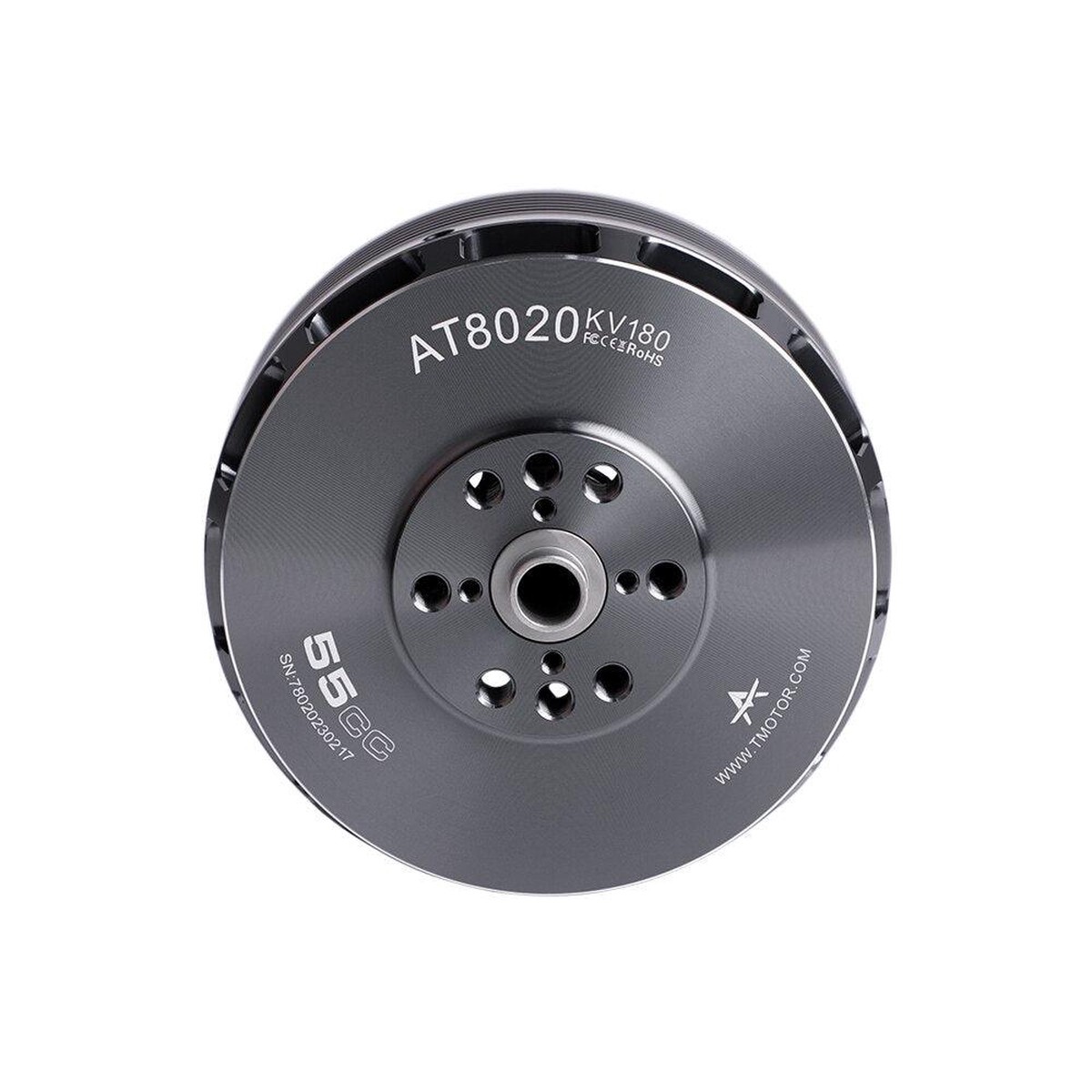

T-MOTOR AT8020 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

Origin: Mainland China

Material: Metal

Brand Name: T-MOTOR

Efficient flight can replace 55cc engine e greatly High speed and high load flight be comparable to 7Occengine .

This T-MOTOR AT8020 brushless motor is suitable for fixed-wing VTOL UAVs with a wingspan of 2.2-3.3 meters and a takeoff weight of approximately 40 kilograms. With a motor weight of just 870 grams, it can produce an impressive thrust of 18 kilograms.

The AT8020 motor features various mounting options, including a removable propeller adapter that allows for easy and secure installation on both fixed-wing aircraft and multi-copters.

Real-time motor speed monitoring allows for secure control of flight velocity through the integration of a magnetic coding system on the rear output shaft.

Maximum diameter 90mm, making it more suitable for installation and applications in cylindrical or columnar aircraft, featuring centrifugal active heat dissipation and a bottom-laminated heat sink for efficient cooling.

Key Specifications: KV180 weight (including cable): approximately 865 grams Motor dimensions: 90.0 mm x 70.8 mm Internal resistance: 16 milliohms Lead wound wire configuration: 24N28P IN Outlet size: 10 mm Shaft diameter: 12 mm Rated voltage (LiPo): 10-14.5V Idle current at 1V output: [unknown value]
