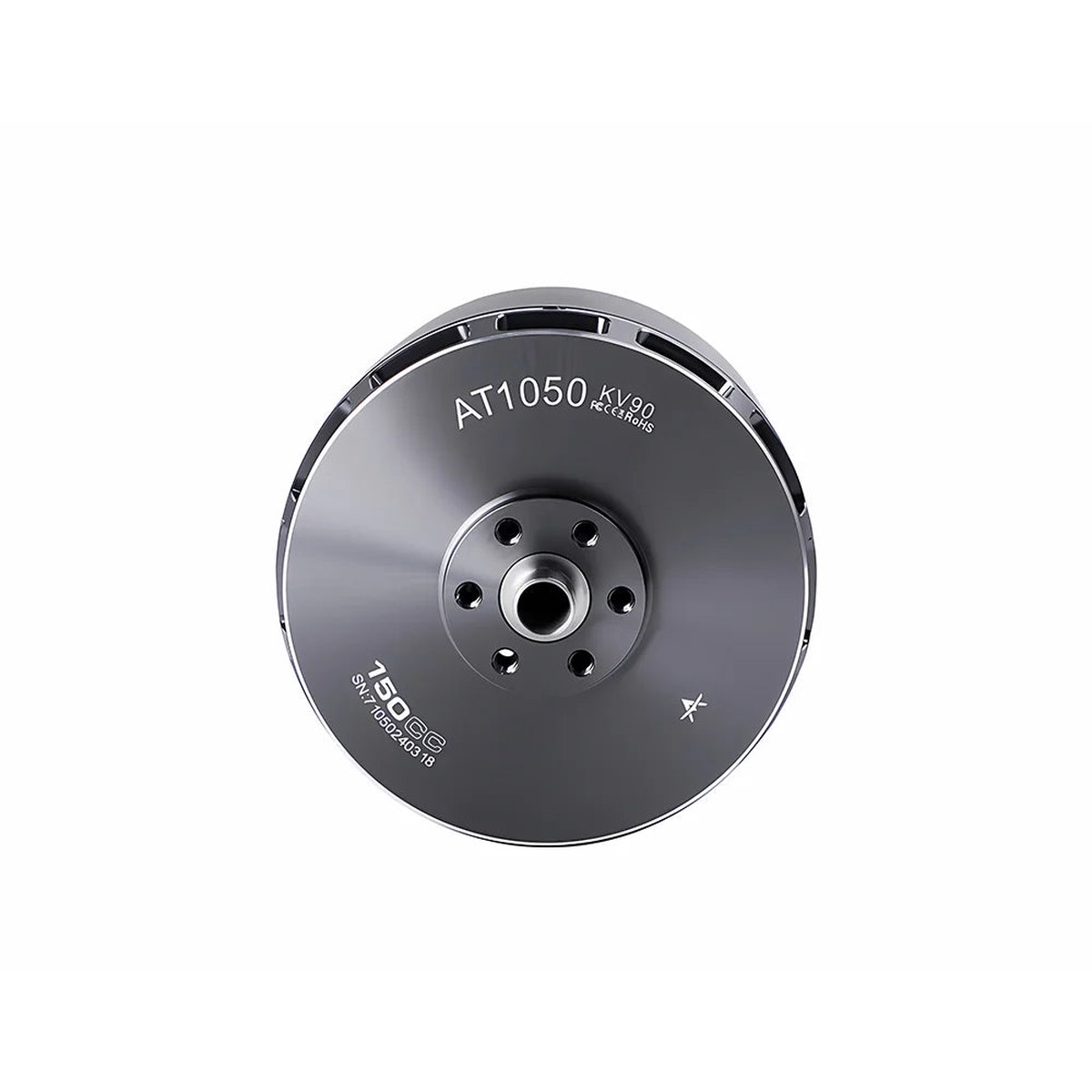

Name: T-Motor AT1050 Brushless Motor 24S for Fixed Wing Airplane (150CC Alternative), KV90, 8000W, 36kg
SKU: A2380050497
Availability: InStock

Description
Reviews (0)

Overview

T-Motor AT1050 is a brushless motor for fixed wing airplane power systems, designed as an ideal alternative to a 150CC engine and rated for 24S LiPo.

Key Features

Keep monitoring for motor speed in real time; compatible with magnetic encoder system.
Removable propeller hub for multiple applications (fixed wing one-piece propeller, customized folding propeller, and other propellers).
High efficiency and heat dissipation; bottom mounted heat sink.

Specifications

Type	AT1050
KV	90
Rated voltage (LiPo)	24S
Max. continuous power	8000W
Max thrust	36kg
Idle current (15V)	5.6A
Peak current	135A
Internal resistance	7.2 mOhm
Weight (incl. cable)	2600g
Motor dimension	110.6*119.8mm
Configuration	24N28P
Shaft diameter	IN: 15mm; OUT: 12mm
Bearings	6902/6202ZZ bearings
Stator technology	150C high temperature-resisting coatings
Magnet temperature resistance grade	180C
Lead x length	Enameled wire 100mm
Temperature resistance of enameled wires	220C
Coil pressure-resistant	1000V/5s
Dynamic balance requirements standards	<= 30mg
Packing size	246162139mm

Recommendations (AT1050)

Propeller	30*10
Takeoff weight	65-70kg
ESC	THUNDER 200A 24S

Test Report (T-Motor)

Propeller	Throttle (%)	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N-m)	Thrust (g)	Efficiency (g/W)	Operating temperature (C)
29*12	40%	88.26	31.15	2749	4019	4.91	13740	5.00	101 (Ambient Temperature: 28C)
45%	88.15	37.89	3340	4312	5.68	15891	4.76
50%	87.96	50.67	4457	4788	7.09	19742	4.43
55%	87.79	61.63	5411	5114	8.22	22747	4.20
60%	87.64	66.08	5791	5246	8.65	23965	4.14
65%	87.50	72.19	6317	5406	9.26	25626	4.06
70%	87.37	79.59	6954	5582	10.00	27428	3.94
75%	87.24	88.25	7698	5771	10.78	29437	3.82
80%	87.12	96.53	8409	5938	11.55	31189	3.71
90%	86.87	112.39	9764	6238	12.93	33904	3.47
100%	86.48	139.77	12087	6611	15.06	36666	3.03
30*10	40%	88.31	30.17	2665	4033	4.69	13566	5.09	98 (Ambient Temperature: 28C)
45%	88.21	36.97	3261	4338	5.42	15772	4.84
50%	88.02	49.28	4337	4798	6.77	19681	4.54
55%	87.87	59.77	5251	5117	7.91	22660	4.31
60%	87.84	64.14	5634	5247	8.33	23911	4.24
65%	87.82	70.23	6167	5407	8.91	25465	4.13
70%	87.77	77.66	6816	5588	9.63	27398	4.02
75%	87.67	85.78	7521	5773	10.38	29314	3.90
80%	87.62	93.25	8170	5941	11.02	30935	3.79
90%	87.42	108.63	9496	6249	12.33	33235	3.50
100%	87.12	134.45	11712	6600	14.37	36129	3.08
30*12	40%	88.27	31.68	2797	3825	5.17	14293	5.11	HOT (Ambient Temperature: 28C)
45%	88.15	38.79	3419	4110	6.03	16566	4.85
50%	88.04	46.74	4115	4397	6.96	19107	4.64
55%	87.71	67.80	5947	4977	9.21	24808	4.17
60%	87.62	73.17	6411	5112	9.74	26176	4.08
65%	87.50	80.24	7022	5271	10.45	27885	3.97
70%	87.37	88.34	7718	5444	11.20	29726	3.85
75%	87.23	97.44	8499	5620	12.01	31725	3.73
80%	87.08	107.11	9327	5792	12.85	33742	3.62
90%	86.84	124.58	10819	6076	14.37	35865	3.31
100%	86.40	152.27	13156	6414	16.59	38696	2.94

Notes: Motor temperature is the bell temperature after running on 100% for 3 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Whats Included

AT1050*1
Parts Bag*1

Customer service and order support: [email protected]

Applications

Fixed wing airplane power system (24S LiPo)
Setups targeting 65-70kg takeoff weight (per recommendation)

Details

T-Motor AT1050 fixed wing motor features a removable propeller hub and bottom-mounted heat sink for flexible setups and cooling.

The AT1050 motor includes a detailed dimension drawing (110.6 119.8 mm) and a spec list with 24N28P configuration and 15 mm/12 mm shaft diameters.

T-Motor AT1050 motor specs list 90KV, 24S rating, 8000W max continuous power, and test data with 2912 prop performance values.

The package includes the AT1050 motor and a parts bag with the mounting plate, screws, and hardware for installation.
