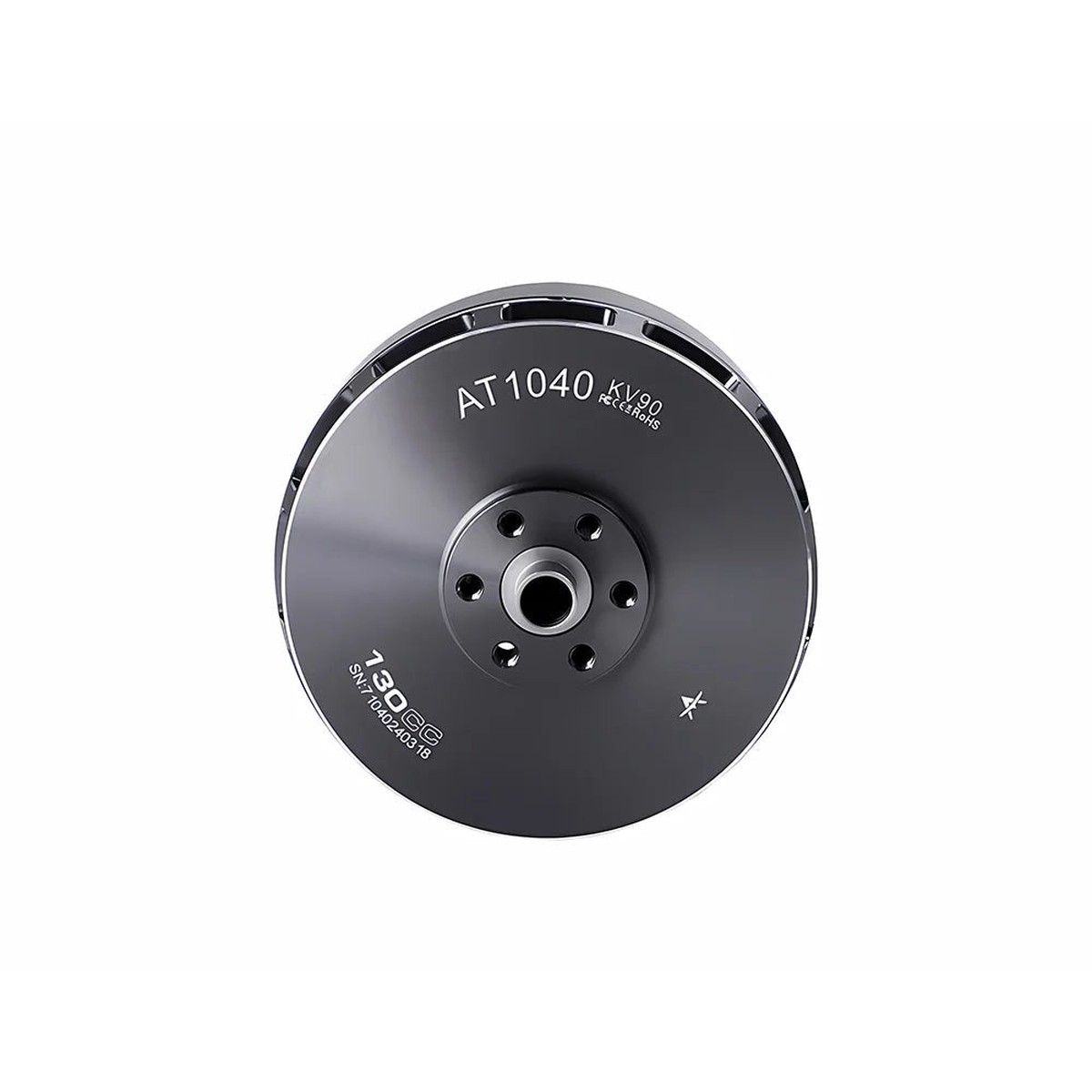

T-Motor AT1040 KV90 24S Fixed Wing Airplane Brushless Motor (130CC Class), 6000W, 32kg Thrust

T-Motor AT1040 KV90 24S Fixed Wing Airplane Brushless Motor (130CC Class), 6000W, 32kg Thrust

T-Motor AT1040 KV90 24S Fixed Wing Airplane Brushless Motor (130CC Class), 6000W, 32kg Thrust

Original price was: $408.00.Current price is: $122.40.
  • SKU:ELAC22173212447
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

T-Motor AT1040 is a fixed wing airplane brushless motor designed as an ideal alternative to a 130CC engine. It supports 24S (LiPo) setups and is specified at KV90 for large fixed-wing aircraft power systems.

Key Features

  • Keep monitoring for motor speed in real time; compatible with magnetic encoder system
  • Removable propeller hub for multiple applications (supports fixed wing one-piece propellers, folding propellers, and other propellers)
  • High efficiency and heat dissipation; bottom mounted heat sink

Recommendations

Motor AT1040
Propeller 28*10
Takeoff weight 60-65kg
ESC THUNDER 200A 24S

Specifications

General

Type AT1040
Motor dimension 110.6*109.8mm
Configuration 24N28P
Shaft diameter IN:15mm; OUT:12mm
Bearings 6902/6202ZZ Bearings
Packing size 246*162*139mm

Materials / Electrical

Stator technology 150C High Temperature-resisting Coatings
Magnet temperature resistance grade 180C
Lead x length Enameled Wire 100mm
Temperature resistance of enameled wires 220C
Coil pressure-resistant 1000V/5s
Dynamic balance requirements standards 30mg

Tech Specs

KV 90
Rated voltage (LiPo) 24S
Max. continuous power 6000W
Idle current (15V) 4.9A
Peak current 105A
Internal resistance 8.8m
Max thrust 32kg
Weight (incl.cable) 2200g

For product selection and compatibility questions (propeller/ESC/power system), contact customer service at https:/// or support@.

Test Report

Notes: Motor temperature is the bell temperature after running on 100% for 3 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Propeller: 27*12 (Operating Temperature: 117; Ambient Temperature: 33C)

Throttle (%) Voltage (V) Current (A) Power (W) RPM Torque (Nm) Thrust (g) Efficiency (g/W)
40% 88.31 24.40 2155 4052 3.74 10846 5.03
45% 88.23 29.58 2610 4346 4.35 12624 4.84
50% 88.01 44.27 3896 5016 5.92 17111 4.39
55% 87.95 47.71 4196 5155 6.28 18147 4.32
60% 87.89 51.32 4511 5293 6.65 19175 4.25
65% 87.83 55.92 4911 5458 7.13 20474 4.17
70% 87.73 62.11 5449 5654 7.72 22122 4.06
75% 87.62 68.25 5980 5834 8.31 23683 3.96
80% 87.55 72.85 6378 5971 8.75 24875 3.90
90% 87.33 86.73 7573 6312 9.96 28020 3.70
100% 87.10 107.02 9321 6731 11.52 29953 3.21

Propeller: 28*10 (Operating Temperature: 116; Ambient Temperature: 33C)

Throttle (%) Voltage (V) Current (A) Power (W) RPM Torque (Nm) Thrust (g) Efficiency (g/W)
40% 88.37 23.88 2110 4095 3.63 10995 5.21
45% 88.27 29.34 2590 4425 4.26 12882 4.97
50% 88.04 42.82 3770 5058 5.67 17074 4.53
55% 87.98 45.97 4045 5190 5.98 18075 4.47
60% 87.93 49.62 4363 5332 6.33 19148 4.39
65% 87.86 54.28 4768 5502 6.80 20481 4.30
70% 87.75 60.03 5267 5695 7.35 22076 4.19
75% 87.65 65.90 5776 5877 7.88 23646 4.09
80% 87.59 69.67 6102 5992 8.24 24634 4.04
90% 86.79 84.47 7331 6357 9.56 28170 3.84
100% 86.36 104.38 9015 6765 11.14 32003 3.55

Propeller: 29*12 (Operating Temperature: HOT; Ambient Temperature: 33C)

Throttle (%) Voltage (V) Current (A) Power (W) RPM Torque (Nm) Thrust (g) Efficiency (g/W)
40% 88.59 25.59 2267 3912 4.43 11864 5.20
45% 88.48 31.73 2808 4230 5.20 13961 5.00
50% 88.41 39.03 3451 4535 6.10 16442 4.80
55% 88.19 52.35 4617 5046 7.58 20445 4.40
60% 88.25 57.79 5100 5204 8.15 22024 4.30
65% 88.09 63.49 5593 5379 8.76 23661 4.20
70% 88.03 70.21 6181 5544 9.47 25445 4.10
75% 87.90 75.74 6658 5700 10.06 26733 4.00
80% 87.95 81.56 7173 5814 10.60 27972 3.90
90% 87.63 98.46 8628 6192 12.11 31458 3.60
100% 87.27 120.52 10518 6591 13.94 33242 3.20

Whats Included

  • AT1040*1
  • Parts Bag*1

Applications

  • Fixed-wing aircraft power systems (24S LiPo) requiring KV90 class brushless motor
  • Installations using fixed wing one-piece propellers or folding propellers

Details

T-Motor AT1040 fixed wing motor uses a removable propeller hub and supports real-time speed monitoring with a magnetic encoder system.

The AT1040 motor uses a 110.6 109.8 mm body, 24N28P configuration, and a 15 mm/12 mm shaft design to help plan mounting and drivetrain fitment.

T-Motor AT1040 specs list 90KV, 24S rated voltage, 6000W max continuous power, and a detailed thrust test report across throttle settings.

The T-Motor AT1040 KV90 package includes the motor along with a parts bag of mounting screws and hardware for installation.
