T-Motor AM910 Power System for 90-96 inch 3D Planes (70-80CC) KV190 12S 8470W

T-Motor AM910 Power System for 90-96 inch 3D Planes (70-80CC) KV190 12S 8470W

T-Motor AM910 Power System for 90-96 inch 3D Planes (70-80CC) KV190 12S 8470W

Original price was: $1,720.00.Current price is: $146.00.
  • SKU:A2380050532
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The T-Motor AM910 Power System is designed for 90″96″ 3D planes (70CC80CC class). It is built for electric power conversion with mounting compatibility for common engine plates and includes published performance test data for recommended propellers.

Key Features

  • Designed for 90″96″ 3D planes (70CC80CC class)
  • Mounting-plate compatible installation (fixed with the same mounting plate as a gas engine for quick installation)
  • Quick connection between motor and ESC using corresponding plug colors (as shown)
  • Adjustable 4.5mm blade seat gap for accurate fit (as shown)
  • Published thrust/efficiency test tables for AMZ 24*10 and AMZ 25*10 propellers

Specifications

Basic Specifications

Test Item AM910
Motor KV KV190
Motor Dimensions 90*156.5mm
Configuration 24N28P
Output Shaft Diameter 10mm
Lead Enameled Wire*160mm
Magnet Grade Continuous operation at 180C
Dynamic Balance Requirements Standards <=5mg
Coil Insulation Test 1000V Dielectric Withstand Test
Connector Specification XT150-M-Male Connector, Red, Blue and black

Electrical / Performance

Rated Operating Voltage (Lipo) 12S
Idle Current (15V) 7.0A
Maximum Current (60s) 180A
Max. Power (60s) 8470W
Internal Resistance 6m
Maximum Thrust 24.6kg
Weight (Incl. Cable) 1285g

Mounting / Drawing Values (as shown)

  • 90mm, 78mm, 72mm, 66, 67
  • 162.5, 53.5, 78, 25, 55, 6
  • M10 (as shown on drawing)

Recommended Setup (as shown)

3D Aircraft Size 90~96 Inch
Recommended ESC AM216A
Recommended Propeller AMZ 24*10, AMZ 25*10
3D Aircraft Takeoff Weight <24.6kg
Recommended Battery 12S 5600~6600mAh
Equivalent Engine 75CC
Aircraft Size 3.5~4.2m
Aircraft Takeoff Weight <70kg
Recommended Voltage 44.4~50.4V
Equivalent Engine 100CC

Test Specifications (as shown)

Type: AM910 KV190

Propeller: AMZ 24*10

Throttle Voltage (V) Current (A) Power (W) RPM Torque (Nm) Thrust (g) Efficiency (g/W) Operating Temperature (C)
40% 50.03 25.03 1252 4152 1.96 6283 5.02 /
45% 49.96 29.69 1483 4430 2.24 7292 4.92 /
50% 49.87 35.06 1749 4703 2.55 8369 4.79 /
55% 49.76 40.83 2032 4973 2.89 9461 4.66 /
60% 49.63 48.18 2391 5277 3.30 10786 4.51 /
65% 49.48 56.40 2790 5575 3.72 12183 4.37 /
70% 49.28 66.28 3266 5896 4.21 13760 4.21 /
75% 49.08 78.16 3836 6211 4.73 15415 4.02 /
80% 48.86 90.28 4411 6519 5.28 17165 3.89 /
85% 48.59 106.65 5182 6829 5.89 19061 3.68 /
90% 48.32 121.84 5888 7092 6.46 20582 3.50 /
100% 47.82 149.23 7136 7518 7.53 21789 3.05 /

Propeller: AMZ 25*10

Throttle Voltage (V) Current (A) Power (W) RPM Torque (Nm) Thrust (g) Efficiency (g/W) Operating Temperature (C)
40% 49.98 26.09 1304 3994 2.17 6955 5.33 /
45% 49.90 31.68 1581 4274 2.51 8074 5.11 /
50% 49.79 37.35 1860 4538 2.86 9256 4.98 /
55% 49.65 44.46 2208 4841 3.26 10560 4.78 /
60% 49.50 53.23 2635 5146 3.72 12035 4.57 /
65% 49.32 62.44 3079 5459 4.26 13764 4.47 /
70% 49.10 75.28 3696 5786 4.85 15629 4.23 /
75% 48.86 88.47 4322 6100 5.45 17464 4.04 /
80% 48.61 102.31 4973 6394 6.07 19418 3.90 /
85% 48.33 119.77 5789 6672 6.72 21338 3.69 /
90% 47.98 138.15 6628 6942 7.46 22504 3.40 /
100% 47.28 179.12 8470 7409 8.95 24662 2.91 /

Note (as shown): The motor temperature refers to the casing temperature measured after running the motor at 100% throttle for 10 minutes. This data was obtained from T-MOTORs in-house testing platform and is provided for reference only. T-MOTOR reserves the right of final interpretation.

Whats Included

  • AM910 Motor*1
  • Parts Bag*1
  • Package Dimensions: 210*162*109mm

For compatibility questions (airframe, battery, ESC, and prop selection), contact customer service at [email protected] or https://rcdrone.top/.

Applications

  • 90″96″ 3D planes (70CC80CC class)
  • Electric conversion where a compatible engine mounting plate is used (as shown)

Details

The T-Motor AM910 power system is designed for 9096 inch 3D planes in the 7080cc class.

The AM910 mounting plate matches common DLE/DA gas engine patterns to make swapping to electric power quick and straightforward.

World-class 3D pilots have repeatedly calibrated the power curve and hand feel to support rapid control in delicate 3D flights.

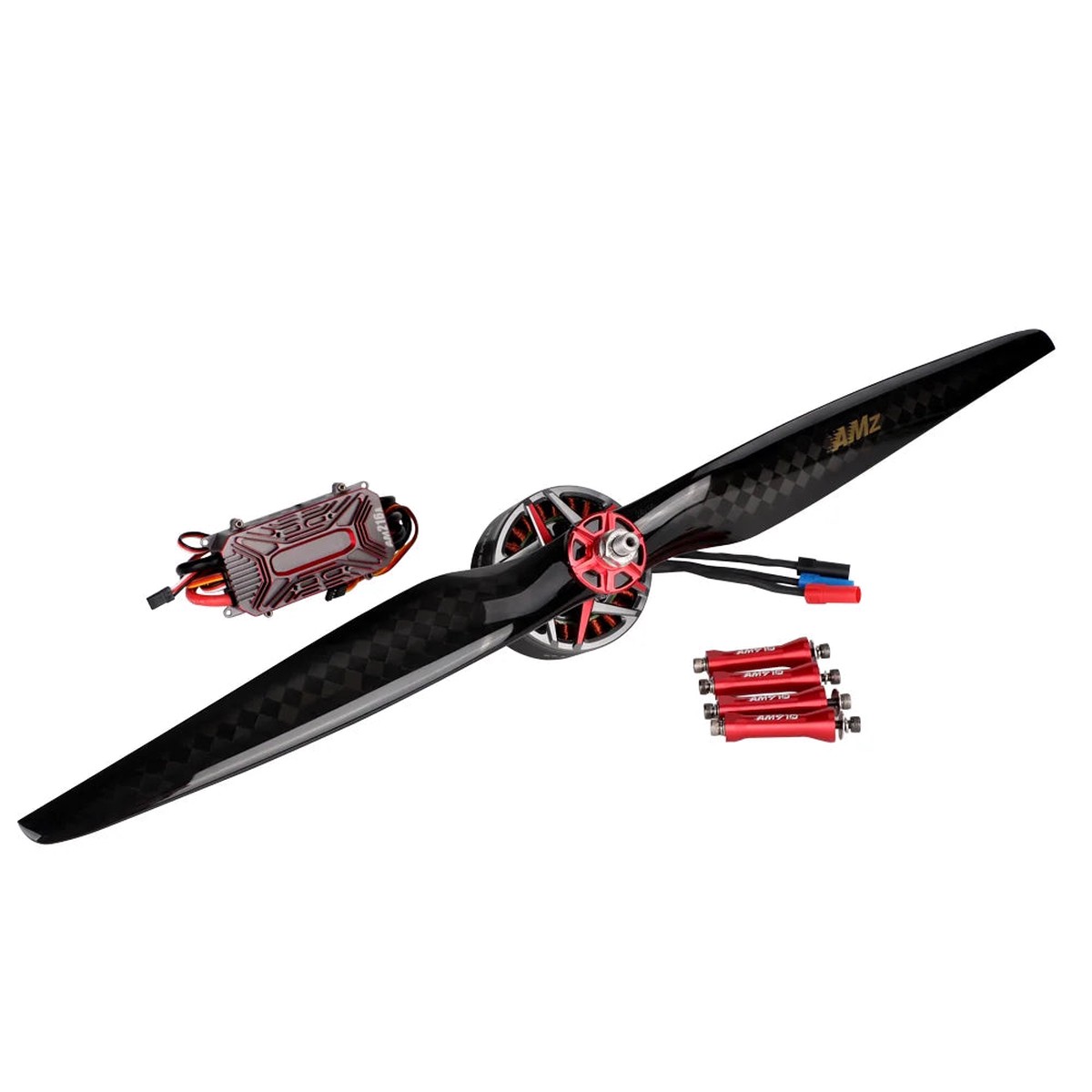

The AM910 power system pairs a brushless motor and ESC with an AMZ 24×10 carbon fiber propeller for large 3D airplane builds.

The AM910 setup uses a lock nut, an adjustable 4.5 mm prop blade seat gap, and color-coded motor-to-ESC connectors for easier installation.

The T-Motor AM910 KV190 12S setup lists key fit and electrical details like a 10mm output shaft, 90156.5mm motor size, and up to 8470W at 180A.
