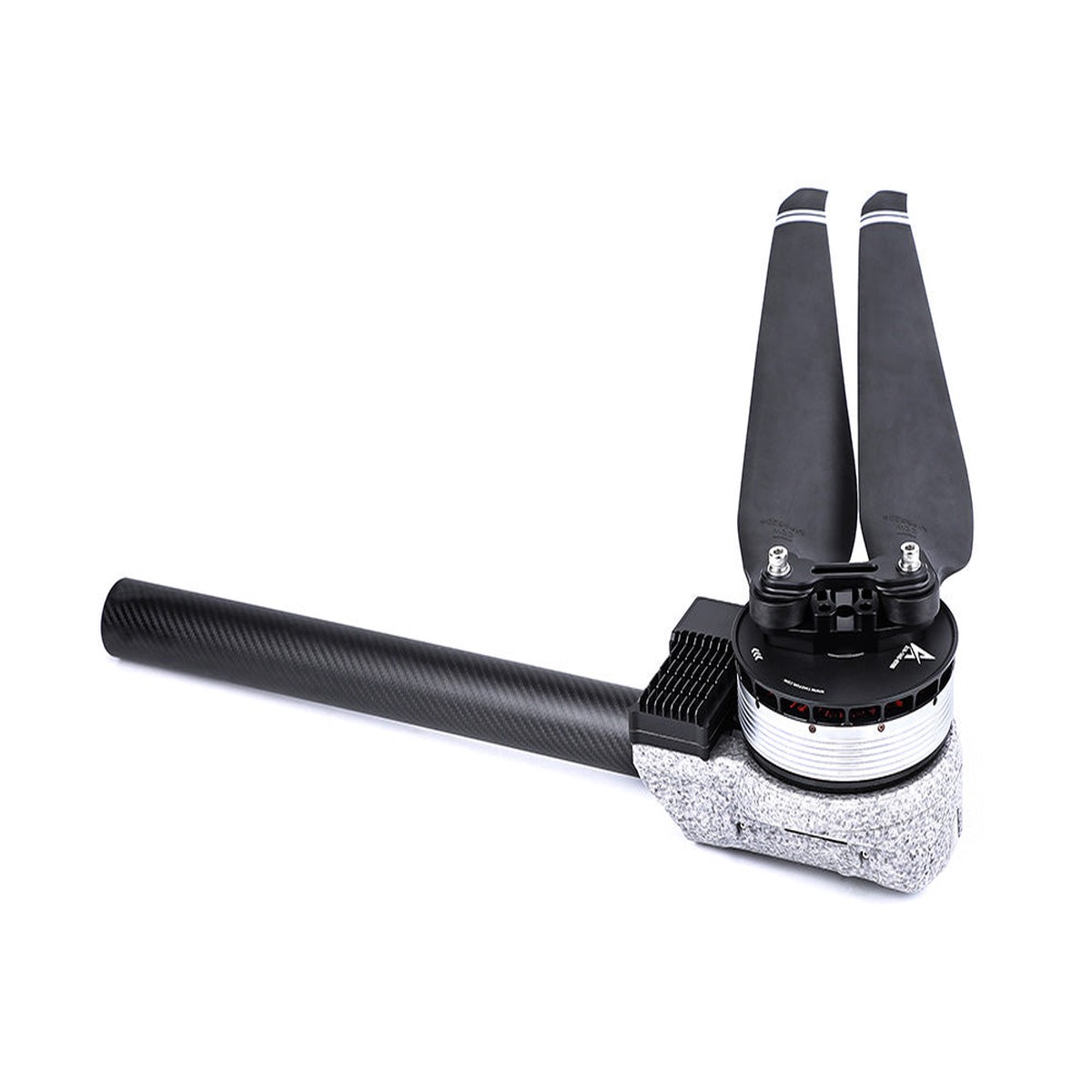

T-Motor A14-14S UAV Modular Propulsion System Kit: A14 Motor + 14S FOC 200A ESC + MF5620P Prop

Overview

T-Motor A14-14S is a UAV modular propulsion system kit combining an A14-14S motor, 14S FOC 200A ESC, and MF5620P propeller for agriculture drone powertrains.

A14-14S recommendations: 50L load capacity (liquid) for agriculture quadcopter drones, and 60L load capacity (liquid) for agriculture hexacopter drones. Recommended take-off weight: 100~108kg (quadcopter) and 150~162kg (hexacopter).

Key Features

• Modular setup: A14-14S (Motor) + 14S FOC 200A (ESC) + MF56P (Prop)
• Recommended battery: 12~14S (LiPo)
• IP rating: IPX6
• ESC control method: PWM/CAN; Protocol: DRONE CAN, UAV CAN, CUBE CAN
• Operating ambient temperature (recommended): -20~55C

Specifications

Motor Specs

ESC Specs

Prop Specs

Note: The kit listing also references MF5620P; the specification table lists MF56P (Polymer Folding).

Whats Included

• A14-14S Modular Propulsion System 1 (Excl. Carbon Tube)
• Parts Bag 1

Applications

• Agriculture quadcopter drones (50L liquid load capacity recommendation)
• Agriculture hexacopter drones (60L liquid load capacity recommendation)

For ordering support and compatibility questions, contact [email protected] or visit https://rcdrone.top/.

Details

The T-Motor brushless motor comes fitted with a two-blade propeller for a clean, ready-to-mount setup.

The dimensioned layout details the M3 mounting pattern and 5-inch propeller clearance to help with fit checks during assembly.

Performance curves plot thrust against RPM, torque, current, efficiency, and power to help compare operating points.

The A14-14S modular propulsion system includes a propeller assembly and a small parts kit for mounting and setup.
