T-Motor A12XL-18S Modular Propulsion System Kit KV64 + 18S 150A ESC + MF4918P Prop for 40L/50L Ag Drone

Overview

The T-Motor A12XL-18S Modular Propulsion System is a propulsion kit combining an A12XL KV64 motor, 18S FOC 150A ESC, and MF4918P folding propeller for multi-rotor agriculture drones. Recommended configurations include 40L liquid load agriculture quadcopter drones and 50L liquid load agriculture hexacopter drones.

A12XL-18S recommendations: 40L liquid load (agriculture quadcopter drone), 50L liquid load (agriculture hexacopter drone); take-off weight 80~88kg (quadcopter) and 120~132kg (hexacopter).

For compatibility checks and after-sales support, contact support@ or visit https:///.

Key Features

• Modular propulsion setup: A12XL-18S (Motor) + 18S FOC 150A (ESC) + MF4918P (Prop)
• Recommended battery: 14~18S (LiPo)
• Rated thrust: 20~22kg; max thrust: 44.6kg
• Efficiency at rated thrust: 8.5g/W (22kg)
• Ingress protection: IPX6
• Recommended ambient temperature: -20~55C
• ESC control: PWM/CAN; protocols: DRONE CAN, UAV CAN, CUBE CAN

Specifications

Motor Specs

ESC Specs

Prop Specs

Whats Included

• A12XL-18S Modular Propulsion System x 1 (Excl. Carbon Tube)
• Parts Bag x 1

Applications

• 40L load-capacity (liquid) agriculture quadcopter drones
• 50L load-capacity (liquid) agriculture hexacopter drones

Details

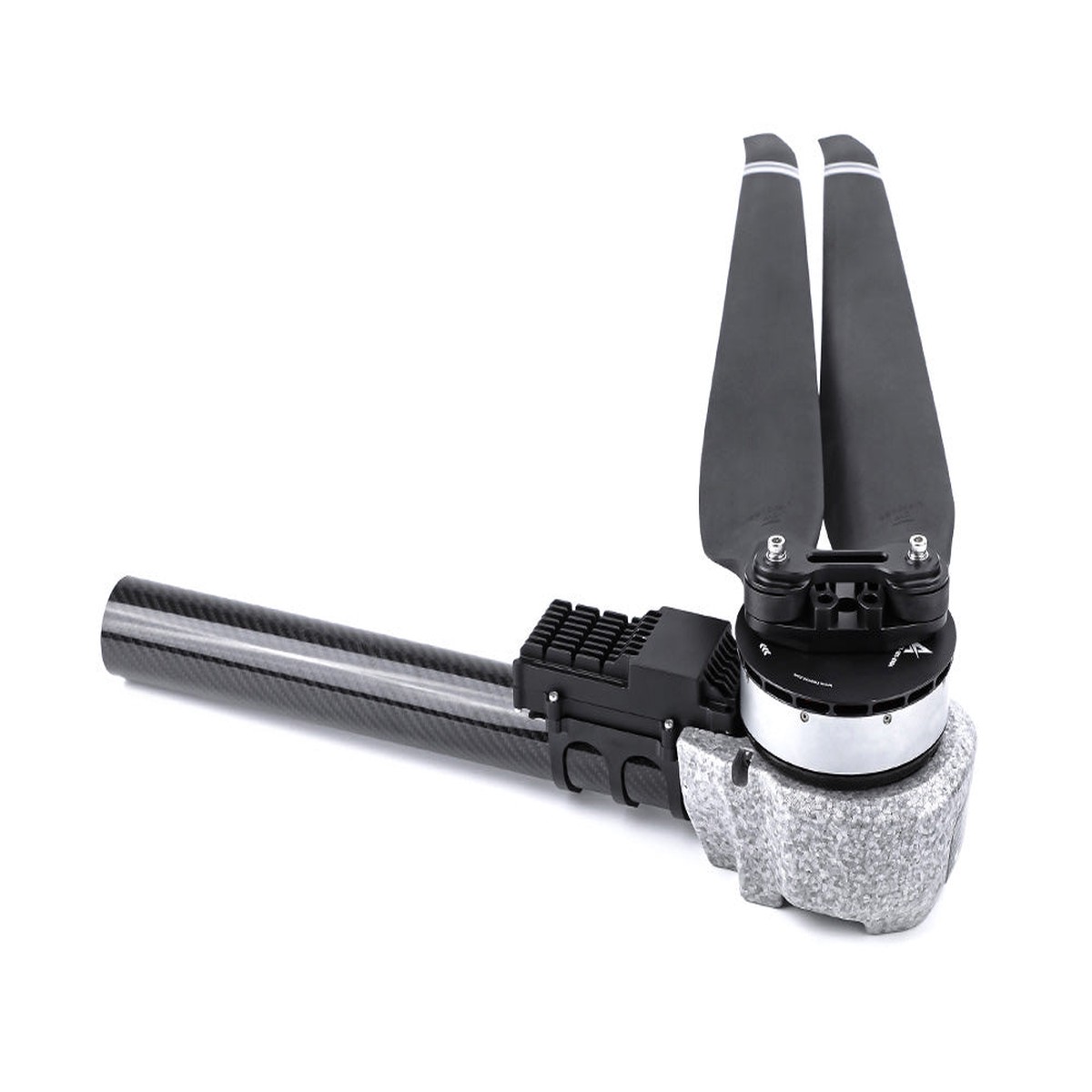

The T-Motor brushless motor and propeller assembly offers a clean, compact setup for UAV propulsion builds.

The T-Motor dimension drawing helps confirm mounting hole spacing and overall fit when planning your drone build.

Thrust, RPM, current, efficiency, torque, and power curves provide a quick reference for motor performance across the thrust range.

The A12XL-18S modular propulsion system includes a propeller module plus a parts bag with mounting plate, hardware, and strap for installation.
