T-Motor A12L-18S Modular Propulsion System Kit: A12L KV70 + 18S FOC 150A ESC + MF4315P

Overview

The T-Motor A12L-18S Modular Propulsion System is a modular propulsion kit for multi-rotor drones, combining the A12L KV70 motor, 18S FOC 150A ESC, and MF4315P polymer folding propeller in a matched setup.

Key Features

• Matched setup: A12L-18S (Motor) + 18S FOC 150A (ESC) + MF4315P (Prop)
• Recommended battery: 14~18S (LiPo)
• ESC control method: PWM/CAN; protocols: DRONE CAN, UAV CAN, CUBE CAN
• Rated thrust: 15~18kg; max. thrust: 38.5kg
• Efficiency at rated thrust: 8.8g/W (16.2kg)
• Ingress protection rating: IPX6

Specifications

Motor Specs

ESC Specs

Prop Specs

Whats Included

• A12L-18S Modular Propulsion System 1 (excludes carbon tube)
• Parts Bag 1

Applications

• Recommendation (liquid load capacity): 30L agriculture quadcopter drone
• Recommendation (liquid load capacity): 40L agriculture hexacopter drone
• Recommendation (take-off weight): 60~72kg quadcopter
• Recommendation (take-off weight): 90~108kg hexacopter

For compatibility questions, missing items, or after-sales support, contact support@ or visit https:///.

Details

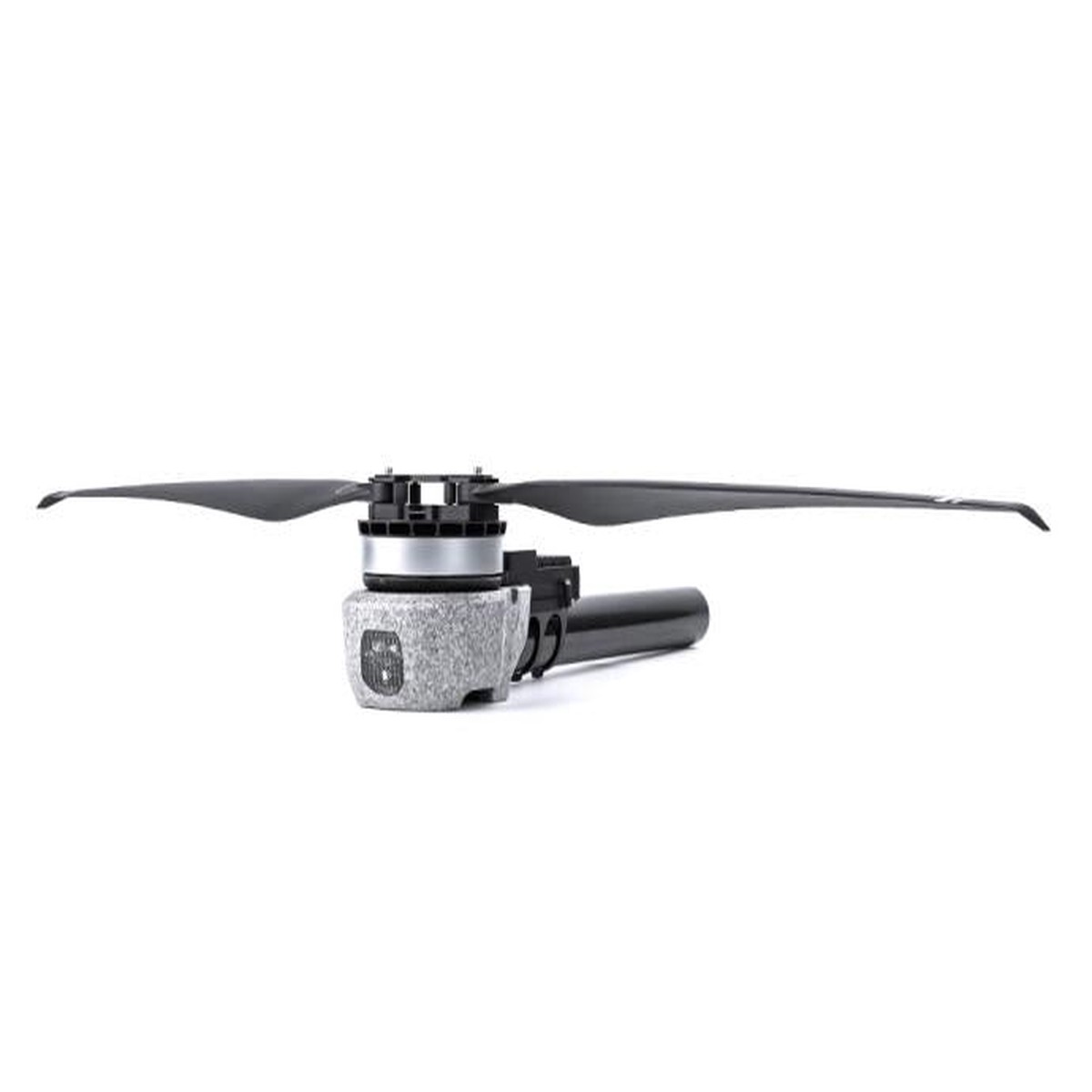

The T-Motor setup comes pre-fitted with a two-blade propeller for straightforward installation on multirotor builds.

The T-Motor propeller dimension diagram provides key measurements for checking fit and clearance during setup.

The performance curves compare thrust (g) against RPM, torque (Nm), current (A), efficiency (g/W), power (W), and Fff (%).

The A12L-18S modular propulsion system comes with a parts bag including mounting plate, hardware, hex tool, and strap for installation.
