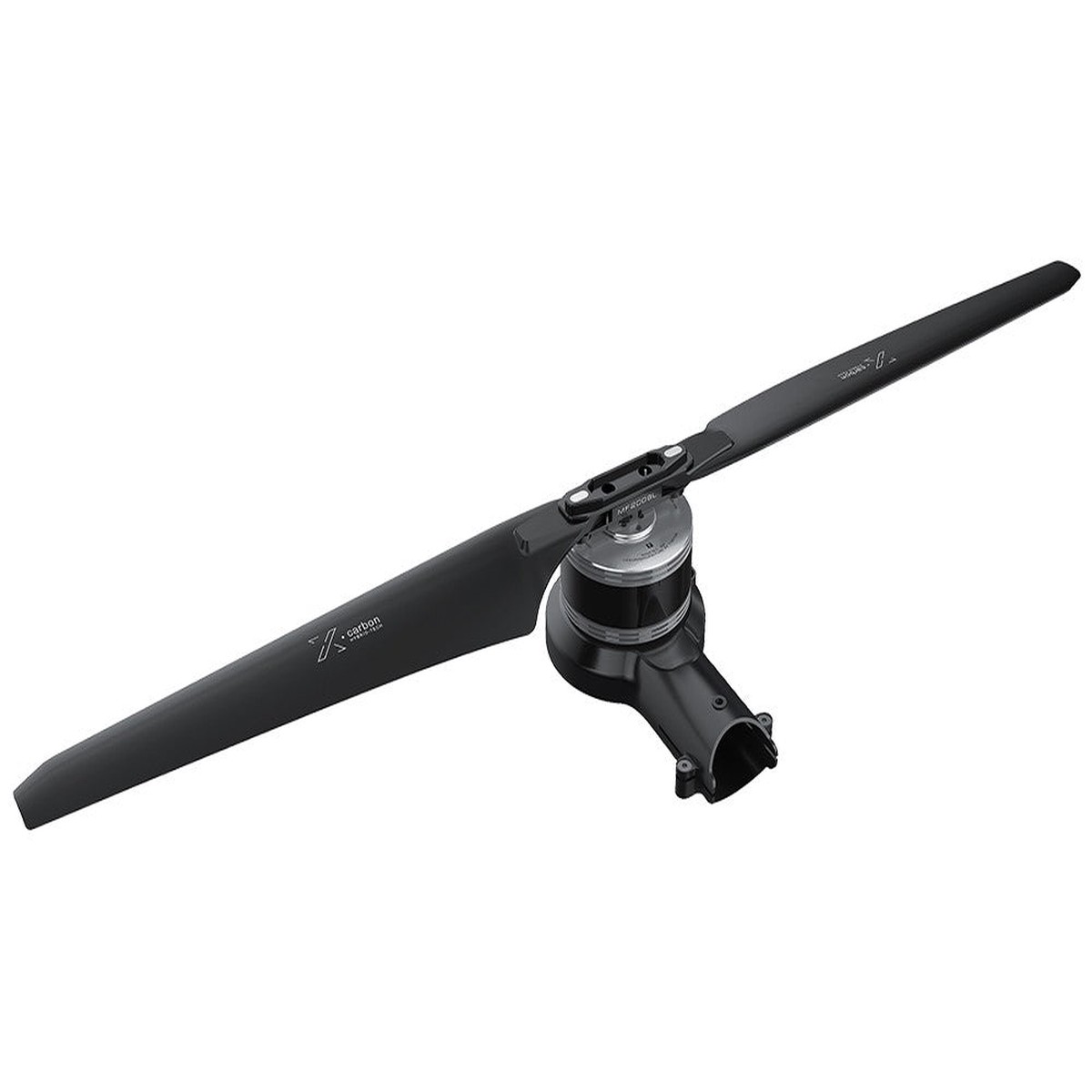

T-Motor 501-X Combo Pack 6S/12S Integrated Propulsion System UAV Motor 501-XKV240/300/360

Overview

T-Motor 501-X Combo Pack Type 6S/12S is a UAV Motor integrated propulsion system arm set for industrial drones, with motor, FOC ESCs, and X-carbon props integrated in one. Tube sizes available are 30mm and 25mm, with an adapter ring to switch from one to another.

Key Features

• Fast and convenient
• Free of complicated mounting process
• Turn-key system with compatibility-focused integration and cost performance
• Modularized propulsion system
• FOC (sine wave) ESCs are the default match for the arm sets; efficient, accurate, and stable motor control from an intelligent algorithm meets the demand of various applications
• T-MOTOR square wave ESCs are available for custom arm sets
• X-carbon is a patent polymer folding prop series designed for high RPM, high efficiency, and strong power; X-carbon props are the default match (other T-MOTOR props are available)
• Built-in LED light for better maneuverability

For product selection and integration support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Technical Drawing Dimensions

501-XKV240

501-XKV300

501-XKV360

Applications

• Industrial drone propulsion arm sets
• UAV platforms requiring turn-key motor + ESC + folding prop integration

Details

The X-standard arm set integrates the motor, FOC ESC, and X-carbon prop system into one assembly for a cleaner industrial drone build.

The T-Motor 50-X, 60-X, 70-X and U8-X setups pair specific MN/U8 motors with Alpha ESC options and 1528 inch polymer folding propellers.

The T-Motor MN505-S KV320 motor is designed to pair with FOC (sine wave) ESCs for stable, efficient control on arm-set builds.

T-Motor X-carbon polymer folding propellers are built for high RPM operation with a focus on efficiency and strong power.

The built-in LED light on the motor helps improve visibility for orientation during operation.

The T-Motor brushless motor mounts neatly to the arm with simple screw hardware for a clean, straightforward install.

The dimensioned side profile helps confirm overall length, height, and mounting clearances before installation.
