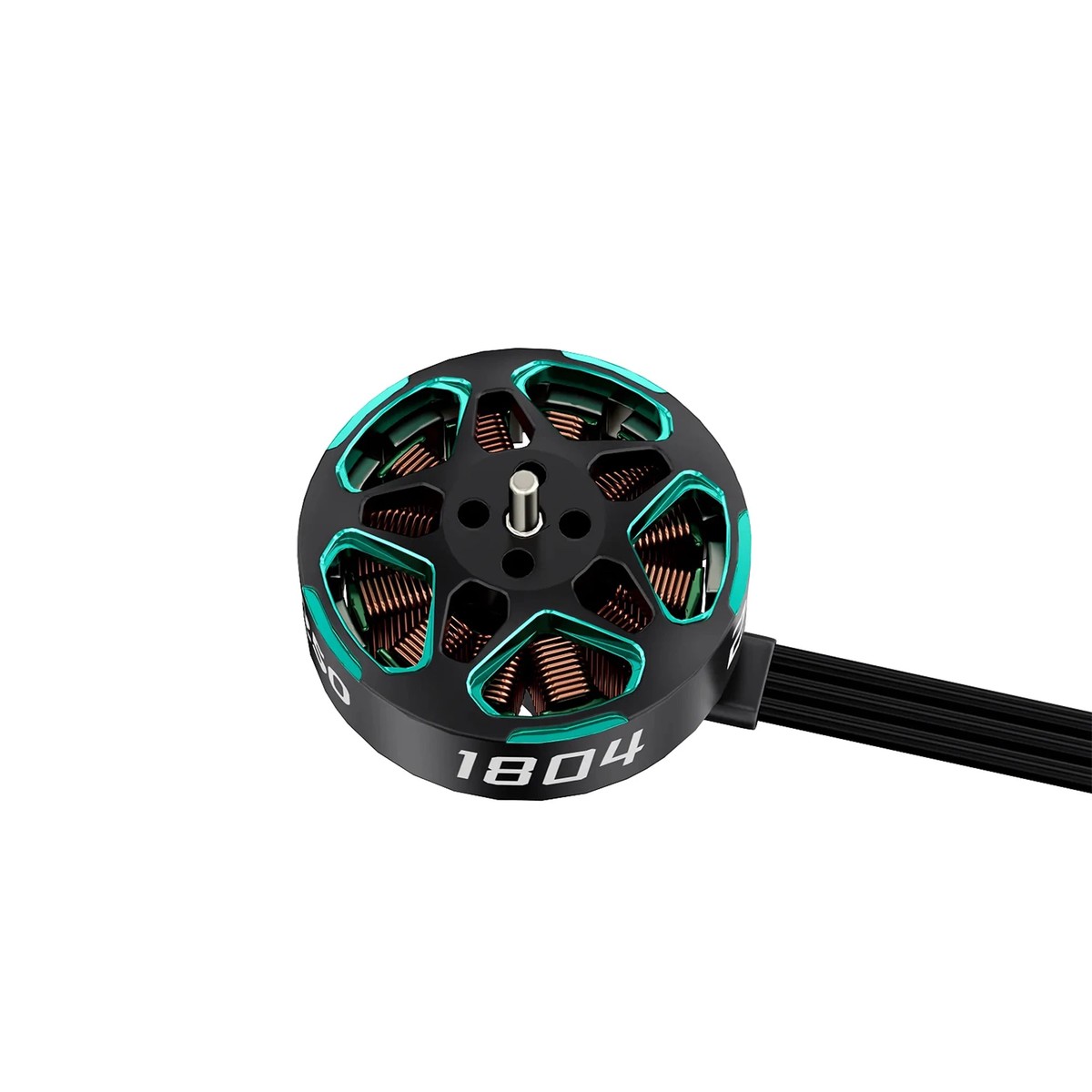

Sub250 1804 2450KV 3450KV Ultra-light 2-4S Brushless Motor Suitable for 3.5-5 Inch FPV Drone

Feature

1. Lightweight design, only 13.g (13CM Wire)

2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.

3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.

4. High-strength motor structure, outstanding durability.

5. Compatible with 3.5-inch and 5-inch FPV drones

Specification

Item: Sub250 1804-2450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: 2mm(in)1.5mm(out)

Size: 22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 4-6S

Max Continuous Power(W) (3S): 452.2W

Max Current (5S) : 18.8A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Dark + Green

Weight: 13.2 g 13CM Wire

Suitable Quadcopter: 3 whoop FPV, 3-5 Freestyle & Long Range FPV

Item: Sub250 1804-3450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: 2mm(in)1.5mm(out)

Size: 22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 2-4S

Max Continuous Power(W) (3S): 404.8W

Max Current (5S) : 25.3A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Dark + Green

Weight: 13.2 g 13CM Wire

Compatible with 3.5-inch and 5-inch FPV drones

Includes

1 x Sub250 1804 Motor

5 x M2*6mm Screw

5 x M2*8mm Screw

High-performance sporty motors with new exterior design craftsmanship 1804. Available in 2450kv and 3450kv options, featuring Sub250 branding.

Ultra-light Sub250 brushless motor, 13.4g with wire, boasts sleek black and teal design.

Sub250 Brushless Motor: KV 2450-3450, 12N14P stator, 18mm diameter, 4mm length, 24AWG wire, 2mm/1.5mm shaft diameters.

Sub250-1804-2450KV motor load test data includes voltage, accelerator percentage, current, pull force, power, efficiency, and temperature for various propellers at 50% and 100% settings.

Motor data includes voltage, current, power, efficiency, and temperature for propellers (HQ T76*3, GF D90*3) in a structured table.

Sub250 Brushless Motor dimensions: 145mm length, 22.74mm width; weight: 13.4 grams.

Sub250 Brushless Motor 1804 product list includes MotorX1 and PartsX1 with screws. Compact design for efficiency.
