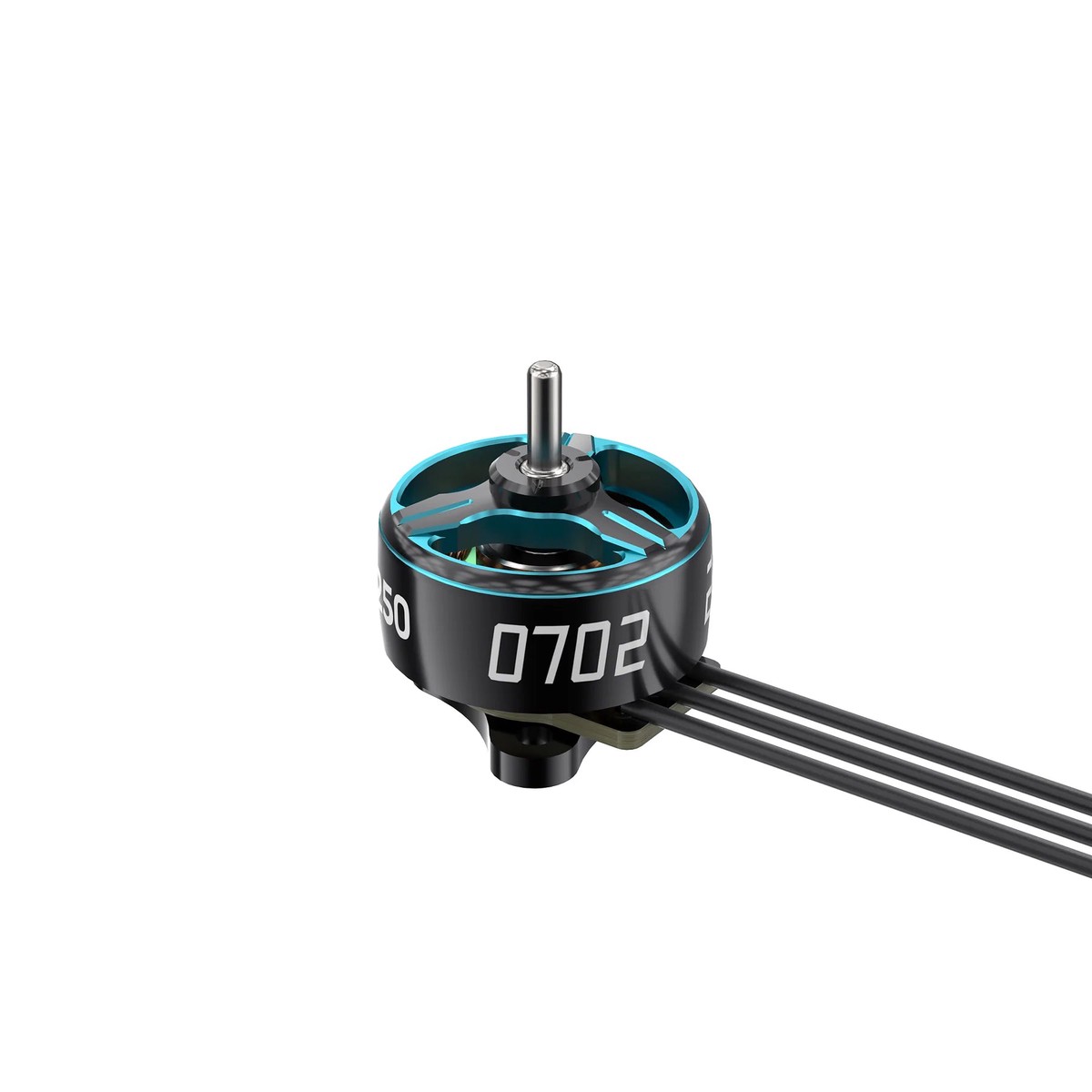

SUB250 0702 27000KV Brushless Motor for 1S Micro FPV Drones Compatible with 1.2″/1.4″/1.6″ Propellers

Overview

The SUB250 0702 27000KV motor is engineered for ultra-lightweight 1S micro FPV drones, delivering extreme responsiveness and power in a compact form. With a dry weight of just 1.6g, this motor is ideal for 65mm whoops and sub-100g builds. Featuring a high 27000KV rating, it delivers strong thrust with great efficiency for tight indoor freestyle or high-speed racing.

This motor uses a 9N12P stator structure, 28AWG cables (31mm length), and a 7mm mounting shaft diameter with a 2mm shaft length, making it compatible with popular props such as 1.2, 1.4, and 1.6 tri-blades. Precise bearings (1mm outer / 1.5mm medial) ensure low friction and smooth operation, while the included test data proves its reliability across multiple prop configurations.

Key Features

• Ultra-lightweight: only 1.6g (dry weight)

• High 27000KV rating for strong throttle response

• Compatible with 1.2″, 1.4″, and 1.6″ propellers

• Durable 9N12P stator structure

• Designed for 1S 4.2V setups

• Efficient thrust-to-power ratio with up to 31g of thrust

• 28AWG cables, 31mm length for easy mounting on micro frames

• Ideal for 65mm and similar 1S whoop drones

• Built-in precision bearings: 1mm (outer) / 1.5mm (medial)

Load Test Data (4.2V)

Technical Specifications

SUB250 0702 27000KV motor for 1.2/1.4 drones, lightweight.

SUB250 0702 27000KV Brushless Motor: KV 27000, Stator Slot Count 9N12P, Shaft Diameter 7mm, Length 2mm, Cable 28AWG(31mm), Bearing Diameter 1mm/1.5mm.

SUB250 0702 27000KV Brushless Motor load test data includes voltage, throttle, current, thrust, power, efficiency, and temperature for various props. Dimensions: 8.1mm x 9.82mm x 31mm.
