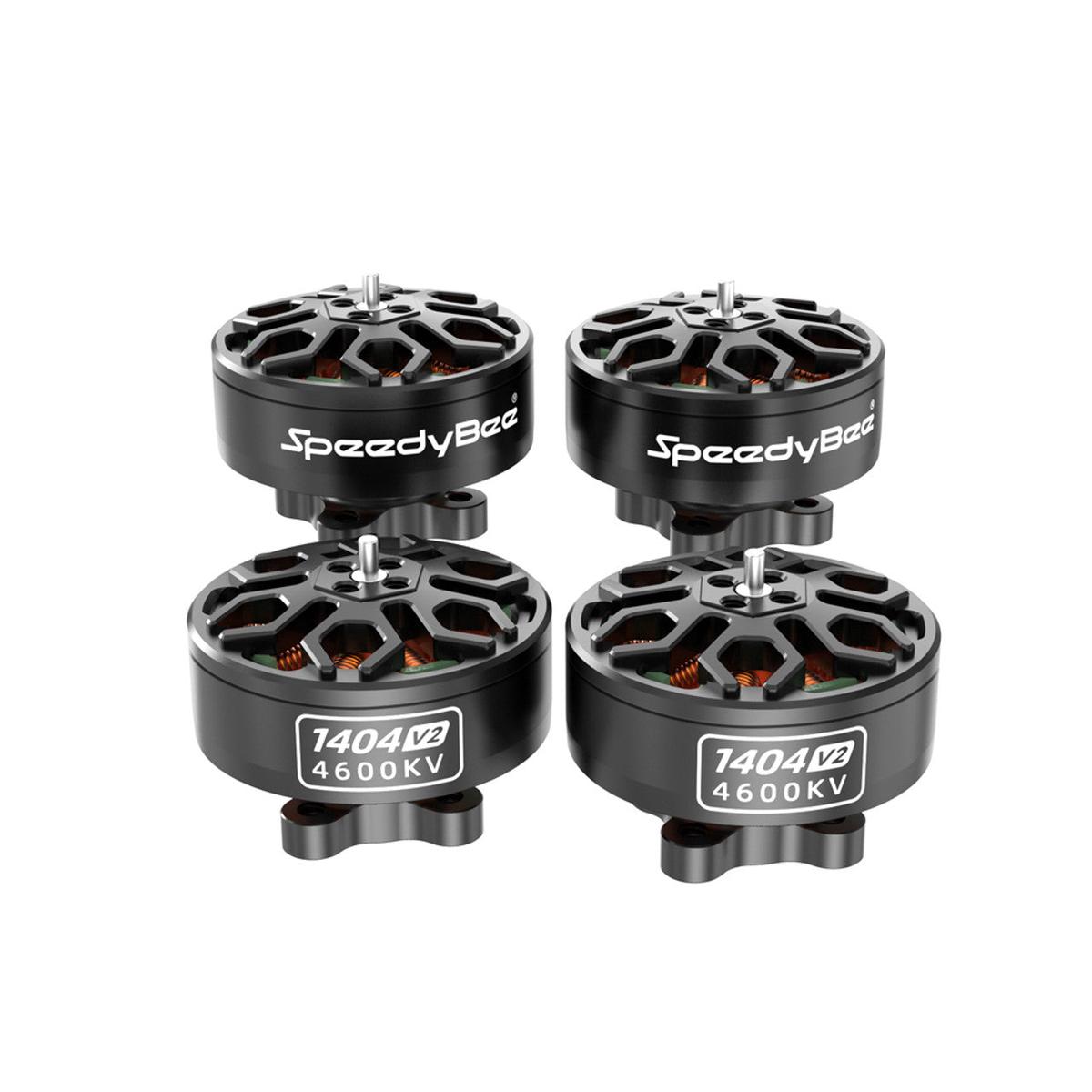

Name: SpeedyBee 1404 V2 4600KV Brushless Motor Suitable for 2.5-4 Inch FPV Drone
SKU: THQ8012110704
Availability: InStock

Description
Reviews (0)

SpeedyBee 1404 V2 Motor Basic Parameters

Parameter	Value
KV Rating	4600KV
Stator Poles	9N12P
Shaft Diameter	1.5MM
Silicone Wires	24# 120MM
Motor Weight (with wires)	9.12G
Phase Resistance (with wires)	152.34 M
Operating Voltage	4S
No-Load Current (10V)	0.45A
Maximum Power	201.87W
Maximum Current	12.85A

1404 Test Data

Propeller	KV	Throttle	Voltage (V)	Current (A)	Thrust (g)	Revolutions Per Minute (RPM)	Power (W)	Efficiency (g/W)	Temperature (C)
GF3016R	4600KV	30%	16.17	0.96	64.9	19475	15.5	4.18
		40%	16.14	1.58	97.7	23768	25.5	3.83
		50%	16.11	2.41	138.2	28182	38.83	3.56
		60%	16.06	3.83	195.2	33038	61.51	3.17
		70%	16.00	5.57	255.1	37493	89.12	2.86	Internal Motor Temperature: 80.8C
		80%	15.91	7.69	316.7	41007	122.34	2.59	Ambient Temperature: 30C
		90%	15.82	10.14	374.3	44751	160.41	2.33
		100%	15.71	12.85	431.5	47879	201.87	2.14

Details

SpeedyBee 1404 V2 4600 KV brushless motor suitable for 2.5 to 4 inch FPV drones, high-quality materials, efficient design, and precise control for smooth flight.

SpeedyBee 1404 V2 4600KV Brushless Motor suitable for 2.5 to 4-inch FPV drones with powerful performance, ideal for small to medium size quadcopters.

Introducing SpeedyBees 1404 V2 4600KV Brushless Motor designed for 2.5-4 inch FPV drones. This motor delivers smooth and stable performance, perfect for your aerial adventures.

The SpeedyBee 1404 V2 4600KV Brushless Motor features aerospace-grade aluminum and a featherweight design for added strength. Paired with recommended batteries, it offers up to 10 minutes of flight time suitable for 2.5-4 inch FPV drones.

SpeedyBee 1404 V2 4600KV Brushless Motor suitable for 2.5-4 inch FPV drones features a strong magnetic structure with slight sharp noise during flight, normal for this motor.
