SPARKHOBBY XSPEED 2207.5 1700KV 1900KV 2450KV 46S FPV Brushless Motor for 5 Inch Racing Drones GF51466 Compatible

Overview

The SPARKHOBBY XSPEED 2207.5 Brushless Motor is built for serious FPV freestyle and racing pilots who demand raw power and smooth throttle control. Available in 1700KV, 1900KV, and 2450KV, this motor supports 46S LiPo setups, and is optimized for 56 inch props like GF51466, GF51499, and GF5144.

With a high-strength shell, enhanced cooling fins, and robust Class H enamel-coated windings rated to 220C, the XSPEED 2207.5 is ready for demanding high-current builds.

Key Features

• Brute-force motor designed for high performance

• Close-grid outer rotor and thick aluminum bell for superior cooling

• Integrated partition base to prevent screw damage to coils

• Long 190mm silicone high-current wires for flexible mounting

• Smooth, stable performance with high torque and punch

• Perfect for freestyle, racing, and cinematic builds

Specifications Comparison

• Configuration: 12N14P

• Shaft Diameter: 4mm

• Prop Mount: M5

• Stator: 22mm 7.5mm

• Mounting Pattern: 1616mm M3

• Lead Wire: 24AWG 190mm

• Enamel Wire: Class H, 220C

• Recommended Props: 56 inch (e.g., GF51466, GF51499, GF5144)

Recommended Usage

• 1700KV: Ideal for long-range and cinematic flying (efficiency focused)

• 1900KV: Best for freestyle with smooth control and good punch

• 2450KV: Designed for aggressive racing and high throttle responsiveness

Package Includes

• 1x or 4x SPARKHOBBY XSPEED 2207.5 Brushless Motor (choose KV and quantity)

XSPEED 2207.5 Motor: 4-6S battery, 12N14P, M5 shaft, 28.5×32.65mm, 924W max power, 36.5g weight. Performance includes voltage, current, thrust, efficiency, speed, and torque details.

XSPEED 2207.5 Motor: 1900KV, 4-6S battery, 12N14P, M5 shaft, 28.5×32.65mm, 706W power, 34.2g weight. Performance data includes voltage, current, thrust, efficiency, RPM, and torque details for optimal load conditions.

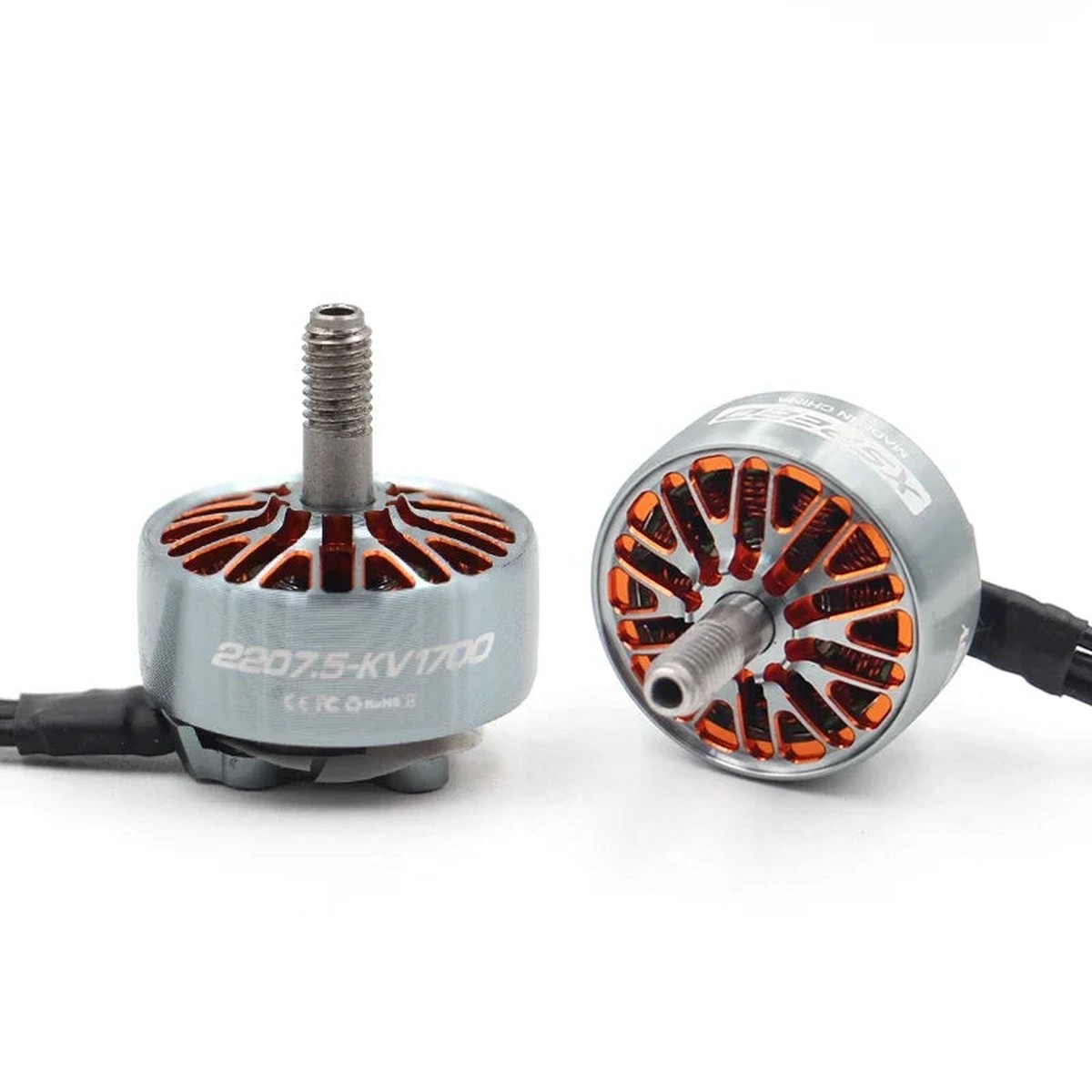

XSPEED 2207.5 Motor, 1700/1900 KV, silver with orange coils.
