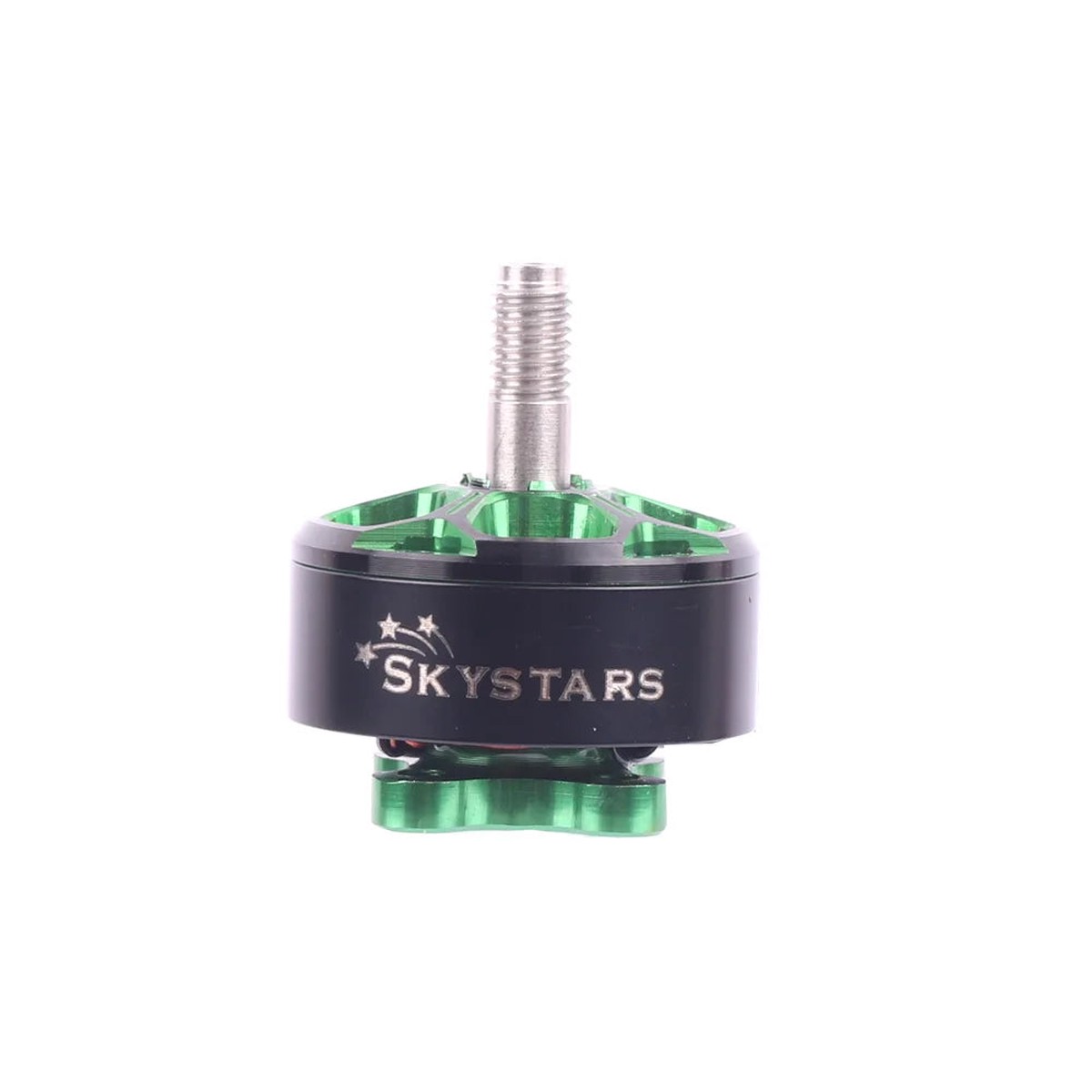

SKYSTARS 2207 1950KV Brushless Motor 46S 5mm Shaft 32.2g for FPV Racing Drone Quadcopter

Overview

The SKYSTARS 2207 1950KV Brushless Motor is a high-performance FPV motor designed for 5-inch racing and freestyle drones. Supporting 46S LiPo and delivering up to 980W of power, this motor offers strong thrust, stable control, and reliable efficiency for demanding flight scenarios. Available in single or 4PCS bundles, its perfect for DIY builds and competitive flying.

Key Features

• 1950KV rating, ideal for racing/freestyle balance

• 46S wide voltage support

• Strong output: up to 980W max power

• Lightweight design: 32.2g without cable

• Smooth performance with low idle current (1.3A @10V)

• Precision 5mm shaft, CNC build

• 120mm silicone cable for flexible installation

Specifications

Package Includes

• 1x SKYSTARS 2207 1950KV Brushless Motor
  or

• 4x SKYSTARS 2207 1950KV Brushless Motors

KV1950 motor, 27.5×19.5×32.7mm, 5mm shaft, 20#AWG leads. 35.5g, 52m resistance, 12N14P poles, 4-6S Lipo. 1.3A no-load (10V), 42.3A online, 980W power limit. Detailed dimensions and mounting specifications provided.

KV1950 motor performance data for various props at different throttle settings, including pull force, voltage, current, RPM, power, efficiency, and temperature under 70% load.
