Samguk 2206 2400KV / 2700KV / 1750KV Brushless Motor for 3-6S RC FPV Multicopter Drone

The Samguk Series 2206 Brushless Motor is built for high-performance RC multicopters, offering outstanding thrust, compact dimensions, and wide voltage compatibility. Designed with precision engineering, these motors are perfect for freestyle, racing, and cinematic FPV drones.

Available in 1750KV, 2400KV, and 2700KV, each KV model targets different LiPo ranges for optimized thrust and efficiency:

• 1750KV: Recommended for 4S6S LiPo

• 2400KV / 2700KV: Optimized for 3S4S LiPo

The motor features a 22.0mm stator diameter, 6.0mm stator height, durable NP configuration, and a lightweight 31.15g body ensuring agile response and solid build quality. Its high efficiency and low internal resistance deliver reliable power even under continuous load conditions.

2206 2400KV Specifications

• KV Rating: 2400KV

• Configuration: NP

• Stator Diameter: 22.0mm

• Stator Height: 6.0mm

• Dimensions (Dia x Len): 27.7 18.7mm

• Weight: 31.15g

• Lipo Compatibility: 3S4S

• Max Continuous Current: 32.70A

• Max Continuous Power: 523.2W

• Internal Resistance: 0.07

2206 2700KV Specifications

• KV Rating: 2700KV

• Configuration: NP

• Stator Diameter: 22.0mm

• Stator Height: 6.0mm

• Dimensions (Dia x Len): 27.7 18.7mm

• Weight: 31.15g

• Lipo Compatibility: 3S4S

• Max Continuous Current: 43.20A

• Max Continuous Power: 691.2W

• Internal Resistance: 0.06

Samguk 2206 Brushless Motor technical data includes voltage, current, speed, pull, power, EEP, and load type details for both no-load and on-load conditions.

Samguk 2206 Brushless Motor: 12V/1.4A, 32400 rpm; 16V/1.5A, 43200 rpm. Performance depends on battery type, affecting current, pull, power, and efficiency under various loads.

Samguk Series 2206 brushless motor with 1750KV, 2400KV, 2700KV options.

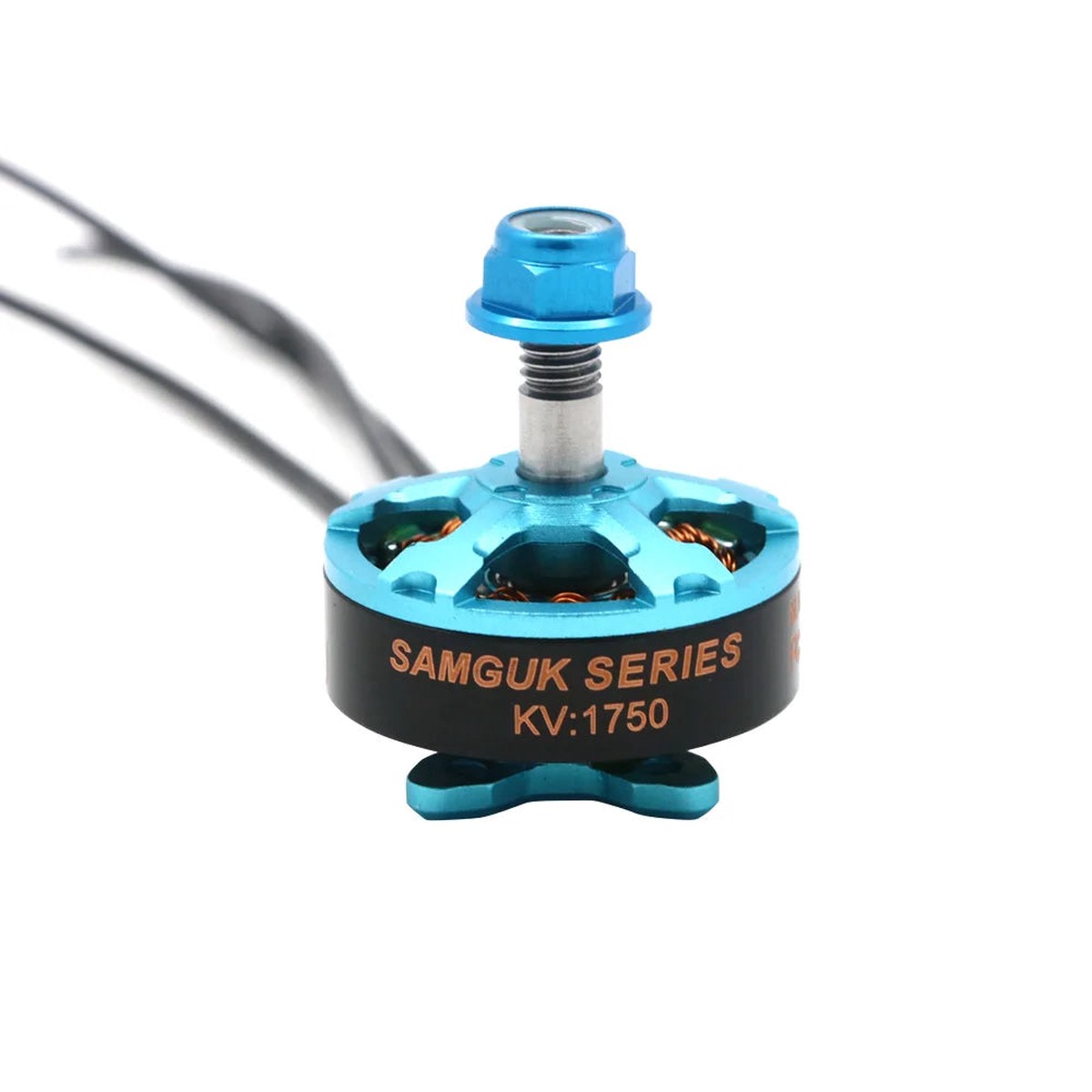

Samguk Series KV:1750 brushless motor, blue and black design with three wires.
