1: initial tension: 2-4 s lipo
2: NO BEC
3: continue current: 20A, burst current: 25A up to 10S
4: size: 23.5 * 12mm.
5: weight: 4g (include power and signal wire)
6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT
7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz
8: MOS: Both low and high side fets are Nfets
9: switching speed is very fast, it has dedicated driver chip
10: BLHeli S Bootloader & Firmware

FVT LITTLEBEE Little bee BLHeli-s 30A ESC:
1: input voltage: 2-6 S Lipo
2: NO BEC
3: continue current: 30A, burst current: 35A up to 10 S.
4: size: 35 * 17mm.
5: weight: 9g (include power and signal wire)
6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT
7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz
8: MOS: Both low and high side fets are Nfets
9: switching speed is very fast, it has dedicated driver chip
10: BLHeli S Bootloader & Firmware

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 – 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

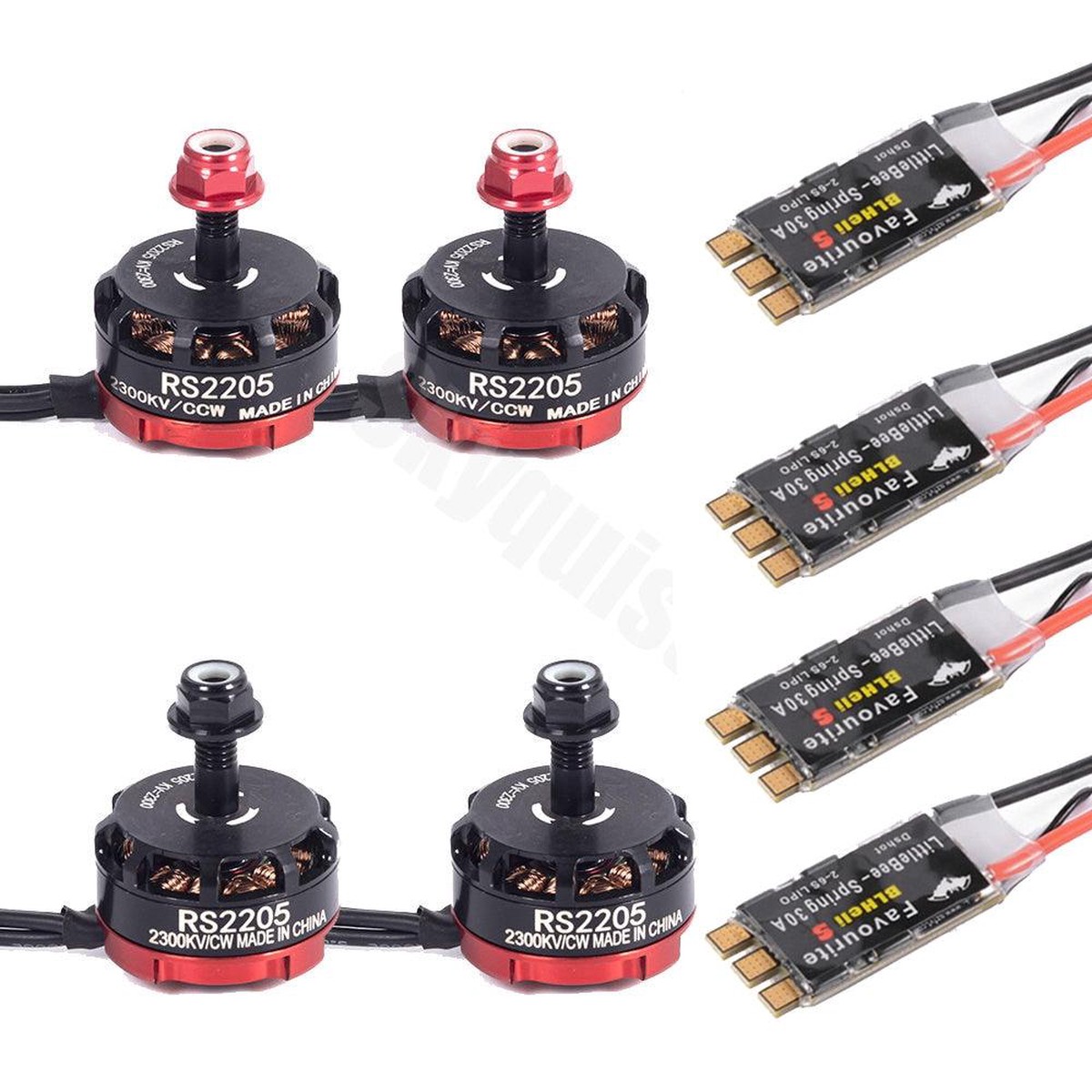

The product features a BLHeli_S ESC with LittleBee technology, supporting 20A or 30A current output. The motor has a KV rating of 2300 and is suitable for FPV RC quadcopters, racing drones, and multicopters.

This product features a BLHeli_S ESC (Electronic Speed Controller) paired with LittleBee Spring’s 30A motor, suitable for use with 2-6S Lipo batteries.
