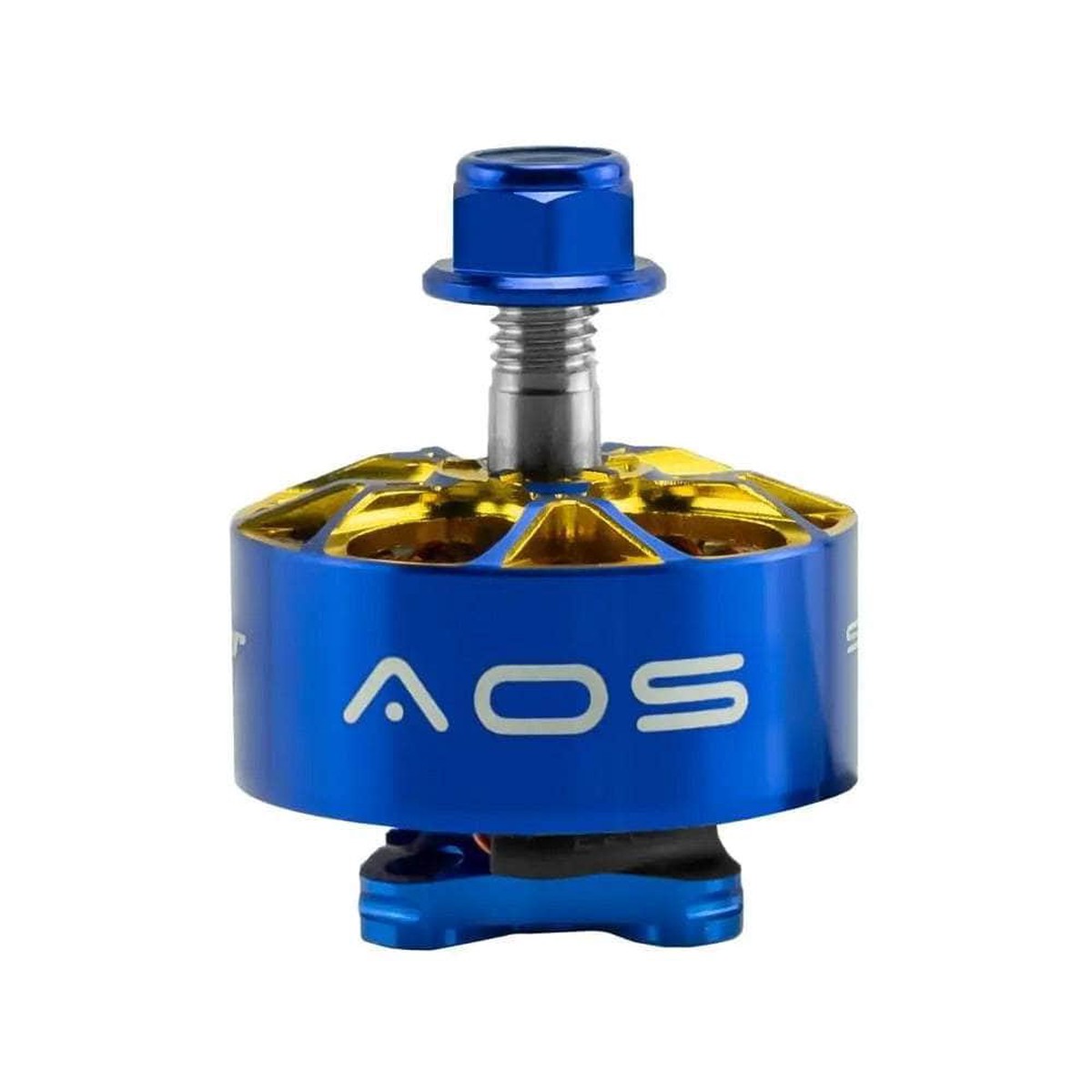

RCinPOWER AOS SUPERNOVA 2207 1980Kv Motor – Chris Rosser

Experience a rush of power when you equip your FPV drone with the AOS RC Supernova Motor! This lightweight yet powerful motor is designed for speed and precision, with a KV of 1980 and a 12N14P configuration. At just 31 grams, it’s just the right size for your aerial adventures. Upgrade your drone to the AOS RC Supernova Motor today!

Some words from the designer, Chris Rosser:

The AOS Supernova 2207 redefines performance for a 5″ FPV motor. It delivers more power, more torque, and better efficiency per gram than any other motor in its class.
You may know that I’ve tested over 50 different 5″ motors from the biggest and best manufacturers in FPV. What you may not know is that alongside making motor testing videos I’ve been using all that data to refine a finite element model of FPV motor performance.

This tool can accurately predict the performance of a motor design in just a few minutes making it possible to quickly test many different motor designs. I took this a step further by writing an optimisation script that uses this model to home in on the optimum design. A design that provides the most power, torque, and efficiency at a target motor weight of 31g (not including wires).

There are a lot of design parameters so it took a long time to home in on the optimum (over 20,000 iterations) but I found the ideal design.

That was the creation of the Supernova 2207.

A great design is nothing without great manufacturing so I’ve partnered with RCinPower to produce this motor. Their motors consistently perform at the top of my motor leaderboard and they are flown by arguably the fastest racing pilot in the world, Min Chin Kim.

I think the Supernova is something pretty special. I hope you’ll agree…

–Chris Rosser

Check out ourvast brushless motors selection, and all ourRcinpower products!

Features

• Versatile Compatibility
• Impressive Power
• Compact Design
• High KV Rating
• Hollow Shaft

Specifications

• KV: 1980
• Configuration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 7mm
• Shaft Diameter: 4mm (Hollow)
• Motor Dimensions: 27.6×19.5mm
• Weight: 31 grams (2cm Wires)
• Internal Resistance: 45m
• Idle Current (10 Seconds)@10V: 1.1A
• Max Continuous Power (W) 5S: 1456
• Max Efficiency Current: (5-11A)>86%
• No. of Cells (LiPo): 5-6S
• Max Current (3S): 61A

Includes

• 1xRCinPOWER AOS SUPERNOVA 2207 1980Kv Motor – Chris Rosser
