The RCD 3115 900KV brushless motor is engineered for professional-grade multirotors and FPV cinelifter platforms. Featuring a 31mm stator diameter and 15mm height, this motor delivers reliable thrust and torque for heavy-lift applications. It is ideal for 36S LiPo power systems, supporting high-end aerial cinematography rigs like the Taurus X8 Pro, Protek60, or X-Class FPV drones.

Designed with 12N14P stator configuration, precision-balanced rotor, and M5 threaded shaft, the RCD3115 provides exceptional torque stability and high efficiency under full throttle loads, ensuring stable, vibration-free footage for demanding FPV or industrial payloads.

Key Specifications

Performance Overview (25V Test with Propeller Load)

*Max thrust measured: 3960gf @ 68A / 1502W / 22.1V
*Max torque: 0.65Nm
*Max phase RPM: 14650RPM

Applications

• X-Class FPV drones

• Heavy-lift aerial cinematography rigs

• Cinelifter drones (e.g. Protek60, Taurus X8Pro)

• RC industrial multirotors with payloads

• 710 inch prop setups (based on thrust data)

Mechanical Drawing

• M5 prop shaft with 4 M3 mounting holes (19mm circle)

• Precise tolerance: 0.2mm outer diameter / 0.5mm body length

• Ideal for large frame builds with 3338mm motor space

Datasheet 3115 900KV motor test with 1050 Propeller:

RCD 3115 900KV motor data: Throttle, PWM, voltage, current, pull force, torque, RPM, temperature, power, efficiency. Performance metrics vary with throttle percentage from 20% to 100%.

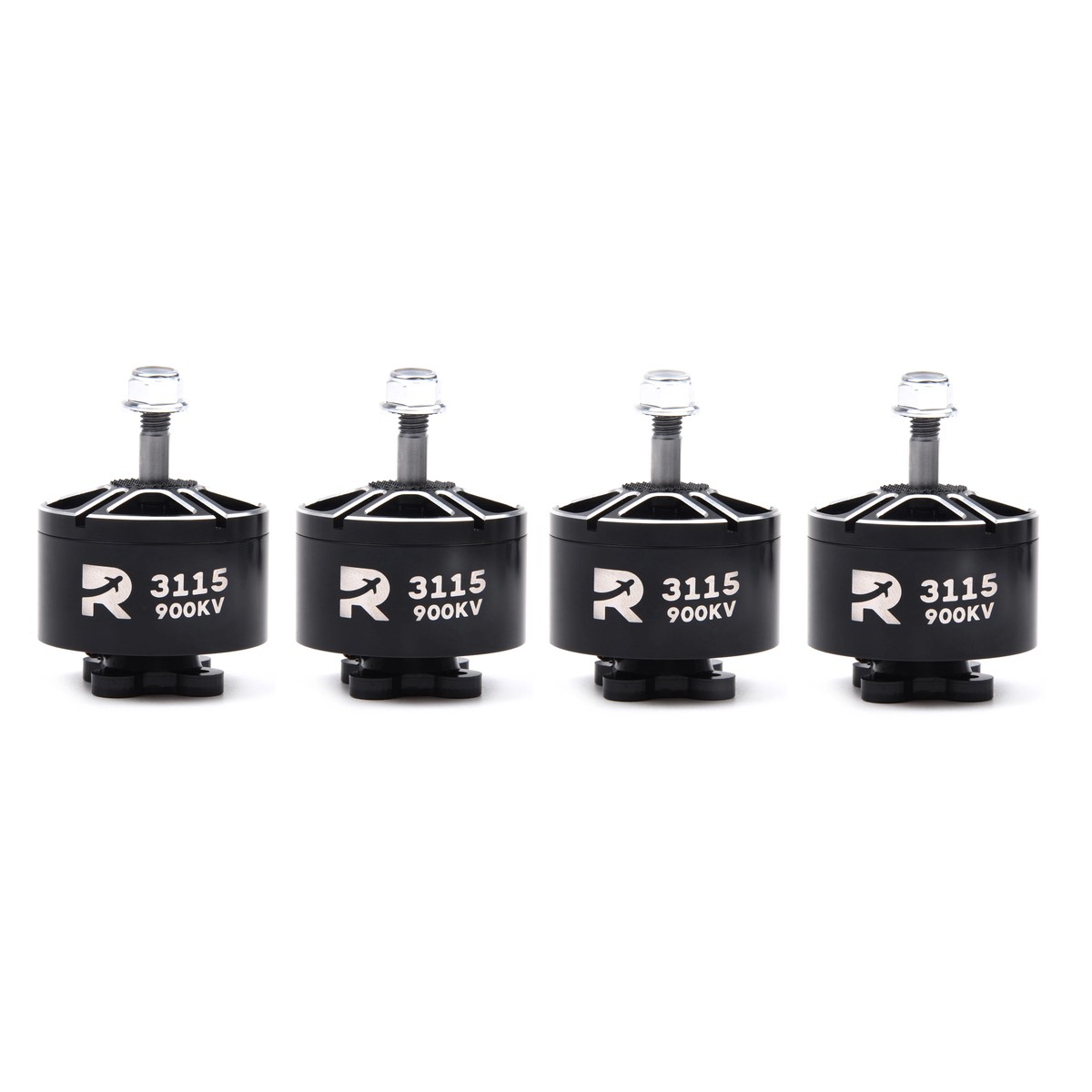

Four RCD 3115 900KV 36S heavy-lift brushless motors with black bodies, silver screws, and orange coils are displayed against a white background.
