Hobbywing SkyWalker 2312 2316 2320 Brushless Motor SPECIFICATIONS

Brand Name: hobbywing

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Motor

Quantity: 1 pcs

Model Number: 2312 2316 2320

2312:

Skywalker 2312 SL 980KV

Recommended Battery3-4S LIPO

KV Rating980KV

No-load Current1.3A/14.8V

Resistance75.6m

Number of slot poles12N14P

Maximum continuous current24A/180s

Maximum continuous power340W/10min

Motor Size28.8 *46mm

Motor Weight65g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 30A

propeller

3S10x6E11x5.5E

4S8x6E9x4.5E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

Skywalker 2312 SL 1250KV

Recommended Battery3-4S LIPO

KV Rating1250KV

No-load Current1.5A/14.8V

Resistance51.6m

Number of slot poles12N14P

Maximum continuous current38A/35s

Maximum continuous power563W/35s

Motor Size28.8 *46mm

Motor Weight65g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 30A-40A

propeller

3S8x6E9x4.5E,10X6E

4S8x4E8x6E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

Skywalker 2312 SL 1400KV

Recommended Battery3-4S LIPO

KV Rating1400KV

No-load Current1.8A/14.8V

Resistance39.9m

Number of slot poles12N14P

Maximum continuous current37A/65s

Maximum continuous power550W/65s

Motor Size28.8 *46mm

Motor Weight65g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 30A-40A

propeller

3S7x6E8x6E

4S7x5E8x4E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

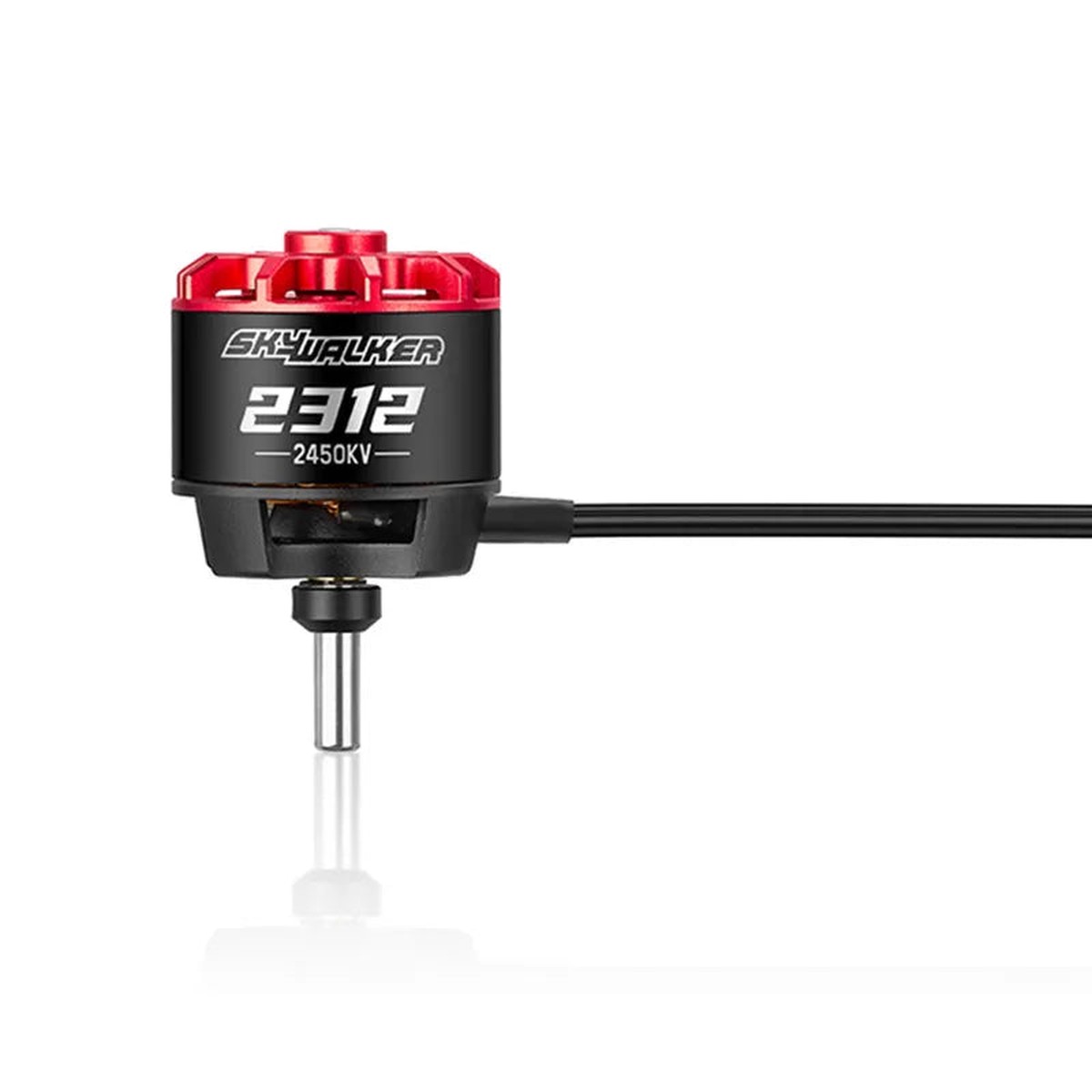

Skywalker 2312 SL 2450KV

Recommended Battery3S LIPO

KV Rating2450KV

No-load Current4.1A/11.1V

Resistance19.3m

Number of slot poles12N14P

Maximum continuous current47A/10min

Maximum continuous power520W/10min

Motor Size28.8 *46mm

Motor Weight65g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 20A-50A

propeller

3S5x3E6x6E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

2316

Skywalker 2316 SL 980KV

Recommended Battery3-4S LIPO

KV Rating 980KV

No-load Current1.5A/14.8V

Resistance53.6m

Number of slot poles12N14P

Maximum continuous current31A/240s

Maximum continuous power455W/240s

Motor Size28.8 *50mm

Motor Weight79g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 30A-40A

propeller

3S10x6E11x5.5E

4S9x4.5E9x6E10x5E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

Skywalker 2316 SL 1400KV

Recommended Battery3-4S LIPO

KV Rating 1400KV

No-load Current2.3A/14.8V

Resistance28.4m

Number of slot poles12N14P

Maximum continuous current42A/135s

Maximum continuous power618W/135s

Motor Size28.8 *50mm

Motor Weight79g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 40A-50A

propeller

3S7x6E8x6E

4S7x5E8x4E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

2320

Skywalker 2320 SL 860KV

Recommended Battery3-4S LIPO

KV Rating 860KV

No-load Current1.5A/14.8V

Resistance48.4m

Number of slot poles12N14P

Maximum continuous current36A/90s

Maximum continuous power540W/90s

Motor Size28.8 *54mm

Motor Weight93g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 30A-40A

propeller

3S12x6E13x6.5E

4S10x5E10x6E11x5.5E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

Skywalker 2320 SL 1100KV

Recommended Battery3-4S LIPO

KV Rating 1100KV

No-load Current1.8A/14.8V

Resistance33m

Number of slot poles12N14P

Maximum continuous current41A/180s

Maximum continuous power580W/194s

Motor Size28.8 *54mm

Motor Weight92g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 40A-50A

propeller

3S10x5E10x6E11x5.5E

4S8x6E9x4.5E

Clip mounting hole thread12mm-3*M2.5

Skywalker 2320 SL 1250KV

Recommended Battery3-4S LIPO

KV Rating 1250KV

No-load Current2.3A/14.8V

Resistance28.9m

Number of slot poles12N14P

Maximum continuous current50A/94s

Maximum continuous power740W/94s

Motor Size28.8 *54mm

Motor Weight92g

Shaft Diameter4mm

Bearing model684ZZD9*d4*4

Phase cable18AWG

Cable length100mm

Recommend ESCSkywalker-V2 40A-50A

propeller

3S9x4.5E9x6E10x6E

4S8x4E9x4.5E

Clip mounting hole thread12mm-3*M2.5

Base thread16mm-2*M3/19mm-2*M3

Sky Walkor 2312 #8oKv brand of motor 2212 98okV High performancee PouttW) 350,00 The newly designed 2312, 2316, and 2320 fixed-wing motors have increased output poweroo

The unique hollow design improves airflow, enhancing the motor’s cooling capacity and efficiency. Additionally, the self-dissipating top cover structure helps to prolong the motor’s lifespan.

The Original Hobbywing SkyWalker 2312/2316/2320 brushless motor features advanced bearing technology and precision CNC machining, resulting in an exceptionally low rotor dynamic balance that minimizes motor vibration and ensures smoother operation. Additionally, JIC ET 2320 IOOKV is a cutting-edge dynamic balancing technology that further enhances the motor’s performance.

The copper pad and retainer spring on the core of the rotor shaft provide a secure fit, while the bushing and set screw help lock the shaft in place, enhancing the motor’s reliability.

This product features top-quality components, including enameled wire from JNEHIZOO, silicon steel sheets, and a unique magnetic steel design that provides maximum torque. The thicker material (0.2mm) is softer and easier to work with than traditional materials, making it ideal for routing.
