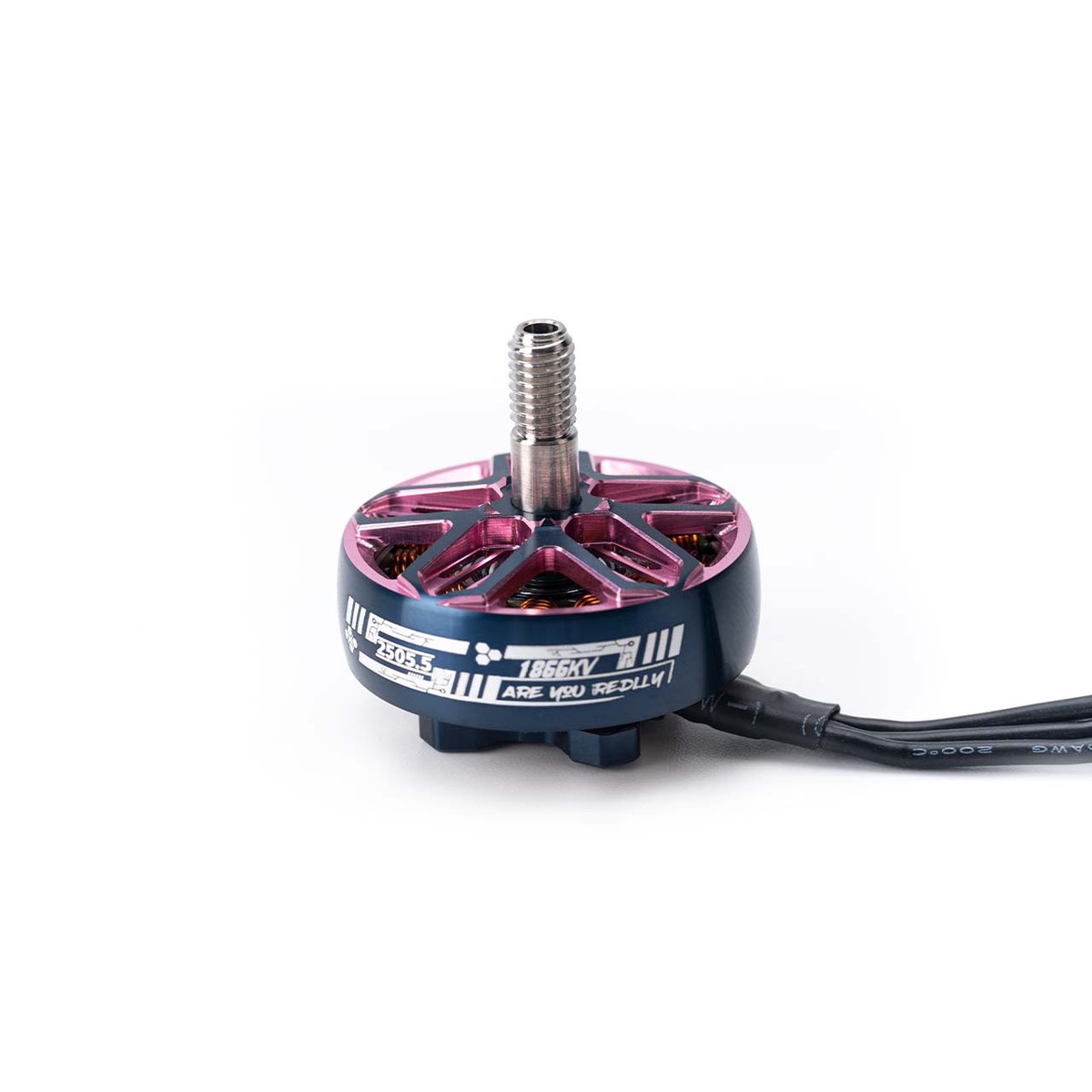

Name: OddityRC Wing 2505.5 Motor 1733KV/1866KV for 4-6S, 12N14P, 5mm Shaft, 5-6in Props
SKU: A2380046689
Availability: InStock

Description
Reviews (0)

Overview

The OddityRC Wing 2505.5 motor is available in 1733KV or 1866KV options, designed for 46S LiPo setups and 56 inch freestyle props. It uses 240 high temperature resistant enameled wire, plus a titanium shaft and 7075 aluminum material, targeting high torque, efficiency, and a smooth freestyle/cinematic flying feel.

Key Features

240 high temperature resistant enameled wire
Titanium shaft and 7075 aluminum material
High torque and efficiency design
Recommended for 56 inch freestyle props

Specifications

General

Model	Wing 2505.5
Motor KV	1733KV / 1866KV
Stator configuration	12N
Rotor poles	14P
Max continuous current	14.3 A (6S)
Maximum power	758 W
LiPo cell count / voltage range	14.825.2 V (46S)
ESC requirement	> 40 A
Recommended prop	56 inch freestyle props
Motor dimension	Dia 31.3 mm x 30.9 mm
Shaft diameter	5 mm
Mounting hole	4 x M3 (16 mm pattern)
Drawing notes	M5; 13.5 mm; 8 mm
Weight	34 g

2505.5 1733KV Thrust Data (22.2 V)

Prop: HQ S5

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.27	10906	298.84	50.3	5.94
30	22.2	4.85	14392	463.91	107.7	4.31
40	22.2	7.66	16965	620.45	170.0	3.65
50	22.2	10.89	19057	761.34	241.8	3.15
60	22.2	14.21	20613	891.5	315.6	2.83
70	22.2	17.17	22334	1042.58	381.2	2.74
80	22.2	22.47	24337	1236.48	498.9	2.48
90	22.2	29.34	26361	1453.96	651.4	2.23
100	22.2	31.52	27016	1510.87	699.8	2.16

Prop: GF 51433

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.22	11718	298.61	49.3	6.05
30	22.2	4.71	15520	465.58	104.6	4.45
40	22.2	7.31	18167	613.76	162.3	3.78
50	22.2	9.96	20284	750.75	221.0	3.40
60	22.2	12.95	22043	877.63	287.4	3.05
70	22.2	16.94	23723	1013.47	376.0	2.70
80	22.2	19.71	25789	1181.59	437.5	2.70
90	22.2	25.97	27875	1429.62	576.6	2.48
100	22.2	28.44	28610	1510.92	631.3	2.39

Prop: GF 51466

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.20	12025	292.02	48.9	5.97
30	22.2	4.67	15860	456.57	103.6	4.41
40	22.2	7.22	18490	596.55	160.3	3.72
50	22.2	9.82	20579	726.91	218.1	3.33
60	22.2	12.67	22204	855.41	281.4	3.04
70	22.2	17.54	23759	960.85	389.4	2.47
80	22.2	19.44	25876	1148.27	431.5	2.66
90	22.2	25.57	28063	1360.64	567.6	2.40
100	22.2	27.55	29034	1381.72	611.5	2.26

2505.5 1866KV Thrust Data (22.2 V)

Prop: HQ S5

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.48	11196	313.38	55.0	5.70
30	22.2	5.32	14851	486.11	118.1	4.11
40	22.2	8.40	17335	650.53	186.4	3.49
50	22.2	12.16	19556	792.06	270.0	2.93
60	22.2	15.90	21032	923.05	353.1	2.61
70	22.2	18.83	22660	1090.6	418.1	2.61
80	22.2	24.40	24653	1283.92	541.7	2.37
90	22.2	31.29	26729	1475.71	694.6	2.12
100	22.2	34.15	27173	1558.5	758.2	2.06

Prop: GF 51433

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.43	12069	315.48	53.9	5.853
30	22.2	5.14	15921	488.95	114.1	4.286
40	22.2	8.02	18621	643.86	178.0	3.617
50	22.2	10.94	20736	784.8	242.9	3.230
60	22.2	14.20	22619	921.68	315.3	2.924
70	22.2	19.98	23896	1024	443.6	2.308
80	22.2	21.47	26058	1244.69	476.7	2.611
90	22.2	27.72	28373	1452.71	615.3	2.361
100	22.2	30.75	28898	1571.55	682.7	2.302

Prop: GF 51466

Throttle (%)	Voltage (V)	Load Current (A)	RPM	Pull (g)	Power (W)	Efficiency (g/W)
20	22.2	2.41	12387	305.44	53.5	5.711
30	22.2	5.08	16283	476.44	112.7	4.226
40	22.2	7.92	18926	622.72	175.7	3.544
50	22.2	11.04	21017	763.5	245.0	3.116
60	22.2	13.78	22888	895.54	305.9	2.927
70	22.2	17.98	24470	1004.64	399.1	2.517
80	22.2	21.19	26374	1188.86	470.5	2.527
90	22.2	27.66	28553	1380.67	613.9	2.249
100	22.2	30.30	29247	1435.26	672.6	2.134

For help choosing between 1733KV and 1866KV or matching an ESC, contact [email protected] or visit https://rcdrone.top/.

Whats Included

Wing 2505.5 motor x 1
M3-9MM screw x 5
M3-4MM screw x 1
M5 nut x 1
Rubber O ring x 1
Metal washer x 1

Applications

46S multirotor builds using 56 inch freestyle props
Freestyle and cinematic setups where smooth response and efficiency are desired

Details

Built for 46S freestyle builds, the Wing 2505.5 balances punchy torque with a smooth, controlled feel on 56 inch props.

A standard 1616 mm M3 mounting pattern and compact 31.330.9 mm profile make fitment straightforward on most 56 inch frames.

Thrust and efficiency data for the 1733KV option at 22.2V helps dial in prop choice and tune for your flying style.

For higher RPM setups, the 1866KV test results at 22.2V provide a clear comparison across popular 5-inch prop models.
