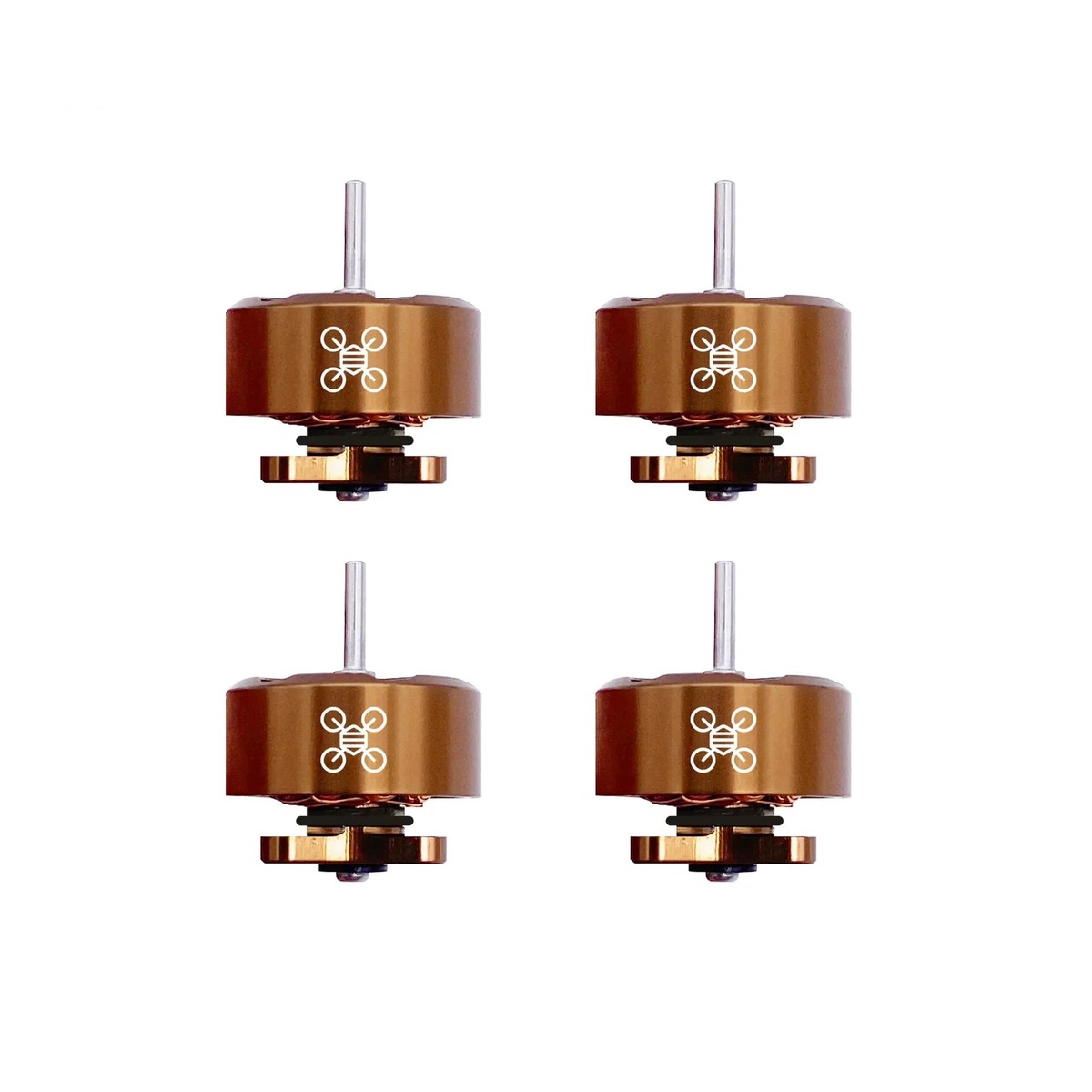

NewBeeDrone 0802 Brushless FPV Motor 14000KV Unibell Espresso Edition for 2S Whoop Drones (Set of 4)

Overview

Introducing the NewBeeDrone 0802 Brushless FPV Motor 14000KV Unibell Espresso Edition, a premium second-generation motor designed specifically for 2S whoop drones. Featuring an integrated Unibell design, this motor eliminates top-mounted C-clips, ensuring superior dynamic balance and durability. Built for serious racers and freestyle pilots, the Espresso Edition combines smooth power delivery, structural integrity, and ultra-lightweight construction.

With a true 14000KV rating, it delivers high-efficiency performance at 2S voltages (7.4V8.4V), optimized for indoor racing, cinematic flights, or extended cruise sessions. Whether you’re building a quiet HD whoop or a long-range micro drone, these motors provide excellent efficiency, torque, and build quality.

Key Features

• 0802 Brushless FPV Motor with precision 14000KV output

• Unibell construction with no external C-clips stronger, better balance

• Double-step 1mm shaft for improved prop retention and durability

• Rated for 2S (7.4V8.4V) perfect for high-efficiency cruising and cinematic whoops

• Includes JST-1.0 connector (installed) and extra JST-1.25 wire set for broader FC compatibility

• 50mm 30AWG silicone wire for flexible mounting

• Weight: 2.08g (with wire and plug)

• Recommended battery: Nitro Nectar Gold 2S or equivalent high-discharge packs

• Recommended props: 31mm41mm tri-blade (e.g., AZI 3B)

Technical Specifications

Performance Snapshot (Based on 8V Bench Test with AZI 3B Prop)

• Peak Thrust: 55.4g

• Max Input Power: 36.8W

• Peak Efficiency: 1.59g/W

• Best Efficiency Range: 2.0A3.0A

Whats Included

• 4 NewBeeDrone 0802 14000KV Unibell Espresso Brushless Motors

• 4 Extra JST-1.25 connector cables

• 1 Mounting hardware set

NewBeeDrone 0802 Brushless FPV Motor: 14786KV, 346m, 8.4mm stator diameter, 2mm height, 9 slots, 12 poles. Max 4.6A, 36.8W, 8.4V. Dimensions: 11.5×13.6mm. Performance for AZI 1.0-3B propeller.
