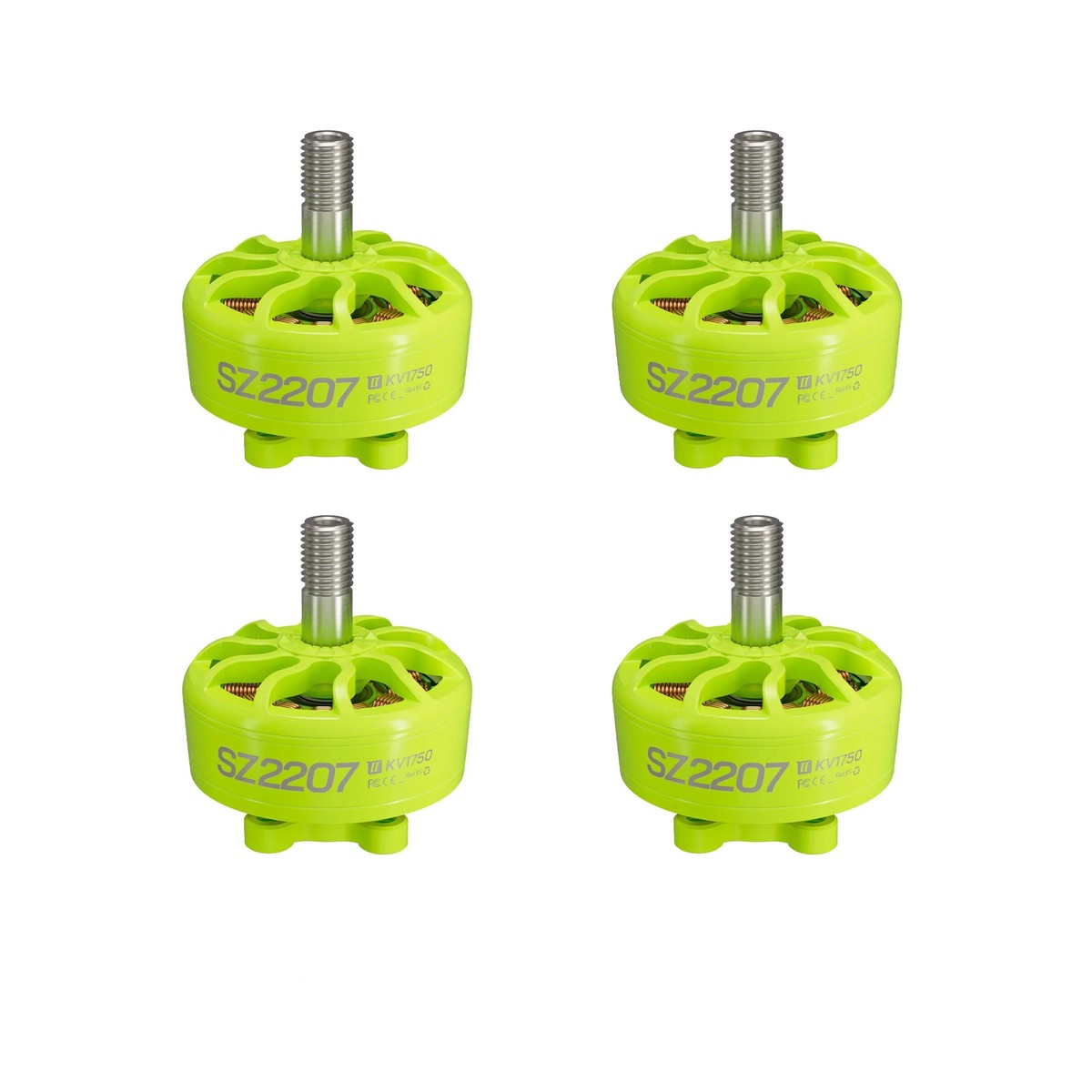

MEPS SZ2207 V2 4PCS FPV Motor Bundle 1750KV/1950KV/2750KV 4S-6S for 5-Inch Drones

Overview

The MEPS SZ2207 V2 is a 4PCS FPV motor bundle designed for high-performance 5-inch racing and freestyle drones. Compared with SZ2207 V1, the V2 version focuses on durability, burst power, and smoother throttle response, with an upgraded anti-slip prop mount design for more secure propeller installation.

Key Features

• Stronger burst power for rapid takeoff and fast acceleration
• Smoother operation with Uni-Bell structure design (SZ2207 V1 and V2 use a uni-bell design; V2 has internal enhancements for smoother throttle response)
• Improved impact resistance: thicker arm design (V1: 1.00 mm; V2: 1.37 mm)
• Upgraded anti-slip design on the propeller mount to help keep props firmly installed during high-load flying
• Construction details highlighted: Uni-Bell structure design, collision pad, 220C resistant enameled wire, NMB bearings
• Performance claim shown: 35% performance (with Uni-Bell design and bearings)

Specifications

Size Chart

• Lead length: 160mm
• Heat shrink tubing length: 10mm
• Heat shrink tubing size: 10mm x 4mm x 0.16mm
• Mounting holes: 4-M3
• Motor diameter: 28.93
• Shown dimensions: 32, 21, 19.8, 12.2, 7
• Shaft thread marking shown: M5*0.8

Data Test

Performance test data is provided for KV1750, KV1950, and KV2750 at various throttle percentages, including voltage, current, RPM, thrust, power, and efficiency, using SZ4942 and SZ5145 propellers. A thrust curve example shown is labeled: Model:1950KV with test line: SZ 2207V2+16.8V+F55A+SZ5145.

What’s Included

• MEPS SZ2207 V2 FPV motor bundle: 4PCS
• Included hardware list (as provided):
  • 1* MEPS SZ 2207 FPV Motor
  • 4* M3x8 Hexagon Screws
  • 4* M3x9 Hexagon Screws
  • 1* M5x5.8mm Flange Lock Nut
  • 1* M3x4 Semisphere Head Hex Socket Screw

For bundle build/compatibility questions, contact support at https://rcdrone.top/ or email [email protected].

Applications

• 5-inch FPV racing drones
• 5-inch freestyle drones
• 4S/6S FPV builds (depending on KV selection)

Details

Built for 5-inch racing and freestyle, the SZ2207 V2 focuses on smoother throttle feel and stronger burst power.

Crisp response helps with quick corrections and confident lines on fast 5-inch builds.

Throttle-to-thrust data supports predictable tuning for race or freestyle setups.

A thicker arm design improves impact resistance for harder landings and crashes.

Linear acceleration and stable thrust make the power delivery easier to manage at high load.

The upgraded anti-slip prop mount helps keep props seated more securely during aggressive flying.

Internal components emphasize durability and smoothness with a uni-bell design and quality bearings.

Choose KV to match your battery setup1750/1950KV for 6S builds or 2750KV for 4S.

Standard 4-M3 mounting and a 160mm lead make installation straightforward on most 5-inch frames.

Everything needed for the 4-motor set arrives with mounting screws and hardware.

Compare thrust curves across KV options to pick the best match for your props and voltage.
