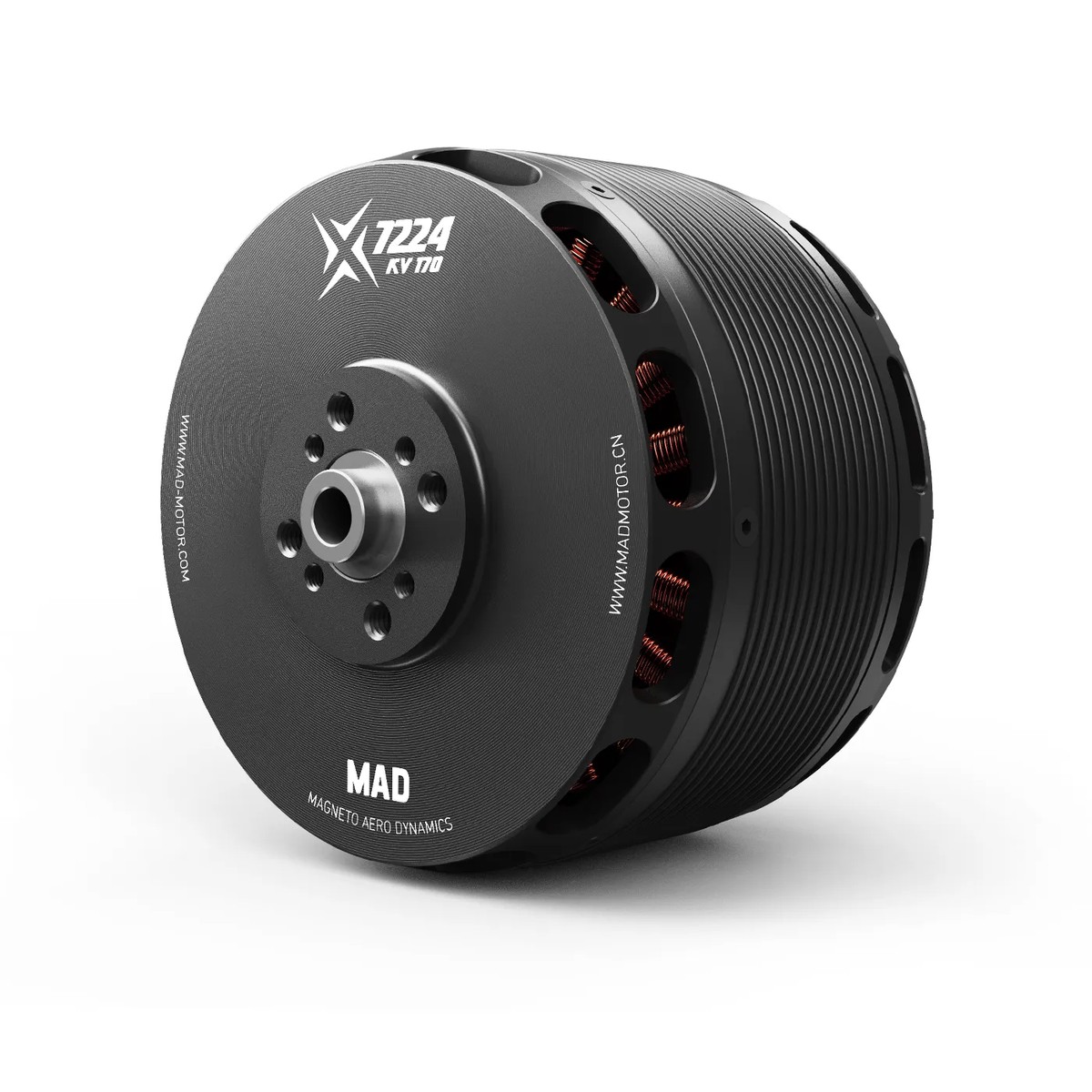

MAD X7224 IPE V2.0 eVTOL Airplane Drone Motor, IP35, 170KV/190KV, 15.5 kgf Max Thrust

Overview

MAD X7224 is an eVTOL airplane drone motor designed for 120E170E aircraft (approx. 3040CC petrol-engine equivalent). It supports multiple mounting options for aircraft and multicopters, with an IP35 protection rating and a stated maximum thrust of 15.5 kgf (maximum thrust may depend on battery level, propeller type, air pressure, and other conditions).

Key Features

• High-efficiency eVTOL motor platform with centrifugal heat dissipation (YES)
• IP35 protection class (waterproof and dustproof as stated)
• Low balance tolerances: rotor balance 5 mg; motor balance 10 mg
• Multiple mounting patterns for motor and prop adapters
• 170KV and 190KV performance sheets provided

Specifications

Motor Data (MAD X7224 IPE V2.0)

Performance Sheet Summary (170KV)

Performance Sheet Summary (190KV)

Drawing & Mount Hole Callouts (as shown on the mechanical drawing)

• Motor mounting pattern: 36-M44
• Prop mounting patterns: 23-M44; 20-M34
• Additional hole circle callouts: 90-4.24; 20-4.24
• Thread callout: M8-P1MM
• Diameter callouts: 81.1; 36; 32; 10
• Linear callouts (mm): 66.5, 62.5, 9, 60, 42, 30, 10

Whats Included

• Motor 1
• Propeller adapter 1
• Prop adapter 1
• Cross plate 1
• 4.0 mm bullet connector 3
• Heat shrinkable tube 3
• M412 motor screws 4
• M414 prop adapter screws 4
• M410 countersunk head bracket screw 4
• M420 propeller screw 4
• M8 nut 1
• Sticker 2

Applications

• eVTOL aircraft and multicopter propulsion (120E170E class)
• High-efficiency power systems where IP35 protection is required

For compatibility checks (ESC, propeller selection, and mounting fit), contact [email protected] or https://rcdrone.top/.

Details

MAD X7224 IPE V2.0 eVTOL motor dimensions and bolt-hole layout help confirm fitment with your mount and prop adapter.

The MAD X7224 IPE V2.0 motor kit includes prop adapters, a cross plate, 4.0mm bullet connectors, heat-shrink, screws, and an M8 nut for installation.

X7224 110KV motor performance charts and test tables help match propeller and voltage to your thrust target.

MAD X7224 IPE V2.0 motor test tables provide thrust, current draw, and efficiency figures across different 10S and 12S setups.

The MAD X7224 IPE V2.0 motor is listed at 190KV with a 4060V input range, 772g weight, and up to 15.5kgf max thrust.

MAD X7224 IPE V2.0 motor performance tables provide thrust, current, and power data for different propeller and voltage setups.
