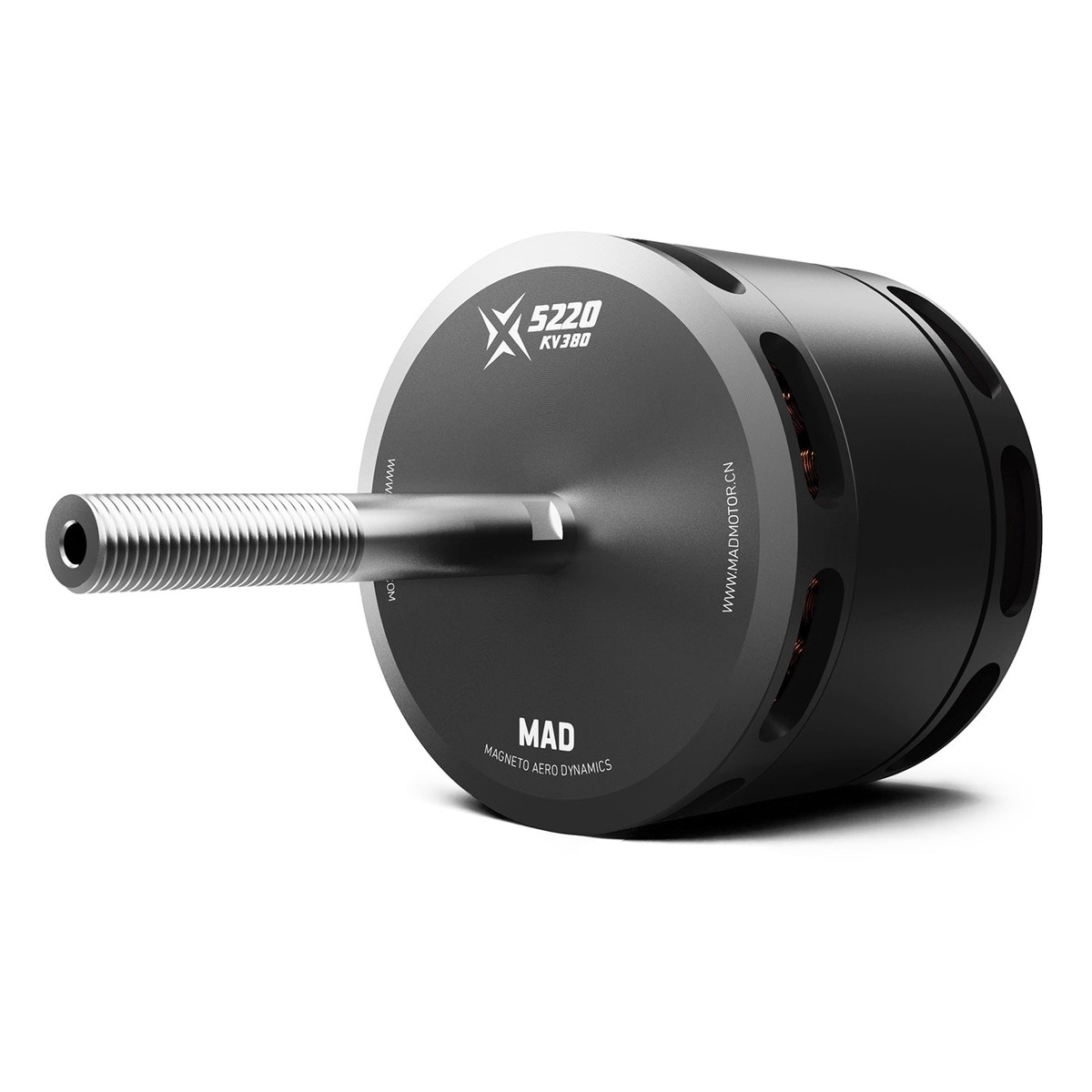

Name: MAD X5220 (Long) IPE eVTOL Airplane Drone Motor 220KV/380KV, IP35, 12.1kgf Max Thrust
SKU: WKA86610369569
Availability: InStock

Description
Reviews (0)

Overview

MAD X5220 (Long) IPE is an eVTOL airplane drone motor for fixed-wing and multirotor aircraft. It is specified with IP35 protection and centrifugal heat dissipation, and is offered in 220KV and 380KV variants with published thrust/efficiency test data.

Key Features

Energy efficient design (220KV: efficiency >80%; 380KV: efficiency >74%)
IP35 protection rating
Centrifugal heat dissipation: YES
Anticorrosive stator (TAIWAN / Anticorrosive)
High-temperature materials: varnished wire degree 220C; magnet degree 180C
Precision balance: rotor balance <=5 mg; motor balance <=10 mg

Specifications

Motor Data (MAD X5220 IPE V1.0)

Motor model	MAD X5220 IPE V1.0
Number of pole pairs	14 (motor data table); 7 (performance sheet)
Motor size	D:60 106.5 mm
Degree of protection	IP35
Cable length	100 mm 14# Awg(Black) silicone
Varnished wire degree	220C
Magnet degree	180C
Centrifugal heat dissipation	YES
Rotor balance	<=5 mg
Motor balance	<=10 mg
Propeller mounting	M8 Nut
Shaft diameter	IN: 8 mm
Motor mounting holes	D:30 M44, D:44 M44
Bearing	68002, 69001
Disruptive test	500 V

Mounting / Dimensions (drawing)

Outer diameter	60
Overall length	106.5
Body segment lengths	51.5, 55
Shaft-related dimensions	39.2, 27, 8, 14, M8*1
Mounting pattern	8-M4; 44; 30
Cross plate / pattern (drawing)	74, 70, 4-4.2, 4-4.2, 3.5, 8.1, 85, 19

220KV Variant (X5220 Energy Efficient 220KV)

Recommended hover thrust: 4.0~5.0 kgf
Maximum thrust: 12.1 kgf (maximum thrust may depend on battery level, propeller type, air pressure and other conditions)
Optimized weight: 436 g
Efficiency: >80%

RPM/V	220 KV
No load current	2.0 A / 20V
Nominal voltage	12S lipo battery
Internal resistance	37 mohm
Motor weight	436 g
Maximum current	72.4 A
Maximum power	3306 W
Maximum torque	3.0 Nm
Maximum thrust	12.1 kg
Recommended ESC	MAD AMPX 60A (5-14S); 80A (5-14S)
Recommended propellers	18×8, 18×10, 19×10
Single rotor take-off weight	4kg ~ 5kg
UAV take-off weight	12S-19″/ 18kg–Quadcopter; 27kg–Hexacopter; 36kg–Octocopter

380KV Variant (X5220 Energy Efficient 380KV)

Recommended hover thrust: 2.5~3.5 kgf
Maximum thrust: 7.9 kgf (maximum thrust may depend on battery level, propeller type, air pressure and other conditions)
Optimized weight: 415 g
Efficiency: >74%

RPM/V	380 KV
No load current	3.6 A / 15V
Nominal voltage	6S lipo battery
Internal resistance	20 mohm
Motor weight	415 g
Maximum current	80.3 A
Maximum power	1751 W
Maximum torque	1.9 Nm
Maximum thrust	7.9 kg
Recommended ESC	MAD AMPX 80A (5-14S)
Recommended propellers	18×8, 18×10, 19×10
Single rotor take-off weight	2.5kg ~ 3.5kg
UAV take-off weight	6S-19″/ 12kg–Quadcopter; 18kg–Hexacopter; 24kg–Octocopter

Whats Included

Motor x1
Propeller adapter x1
M8 nut x1
Prop plate x1
Cross plate x1
4.0 mm bullet connector x3
Heat shrinkable tube x3
M4*12 motor screws x3
M4*12mm flat head machine screw x4
M4 set screws x4
Sticker x2

Performance Data

220KV Test Notes

The following 220KV data are theoretical values when the input voltage is 48V, for reference only. At room temperature 25C with no additional cooling device: current over 72A is non-working zone; 23-72A is short-term (about 10-30s) working zone; below 23A is sustainable working zone. Control motor running time according to working environment temperature and heat dissipation conditions.

220KV Table A

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	47.94	2.72	130.4	78.3	0.247	3029	1089	60	8.4
35	47.91	3.84	184.0	121.8	0.332	3502	1472	66.2	8.0
40	47.84	5.5	263.1	188.7	0.445	4050	2000	71.7	7.6
45	47.72	7.5	357.9	269.9	0.567	4545	2524	75.4	7.1
50	47.66	9.74	464.2	360.8	0.690	4993	3090	77.7	6.7
55	47.57	12.24	582.3	464.3	0.821	5400	3674	79.7	6.3
60	47.48	14.74	699.9	563.3	0.932	5772	4146	80.5	5.9
65	47.35	18.07	855.6	698.8	1.084	6156	4808	81.7	5.6
70	47.25	21.48	1014.9	836.7	1.222	6538	5399	82.4	5.3
75	47.08	25.78	1213.7	1009.4	1.397	6900	6100	83.2	5.0
80	46.93	30.26	1420.1	1190.5	1.559	7292	6766	83.8	4.8
85	46.77	35.44	1657.5	1388.3	1.732	7655	7446	83.8	4.5
90	46.57	41.67	1940.6	1627.2	1.947	7981	8238	83.9	4.2
95	46.35	48.48	2247.0	1880.1	2.161	8308	8968	83.7	4.0
100	46.01	59.34	2730.2	2264.2	2.477	8729	9787	82.9	3.6

220KV FALCON 18*10 AMPX 60A (5-14S) 12S MAX 94C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	47.98	3.02	144.9	93.2	0.294	3026	1191	64.3	8.2
35	47.93	4.28	205.1	142.0	0.390	3478	1592	69.2	7.8
40	47.84	6.06	289.9	215.8	0.515	4001	2121	74.4	7.3
45	47.76	8.34	398.3	307.7	0.652	4506	2686	77.3	6.7
50	47.66	10.81	515.2	408.5	0.789	4944	3253	79.3	6.3
55	47.57	13.56	645.0	520.3	0.928	5354	3803	80.7	5.9
60	47.46	16.69	792.1	651.8	1.091	5705	4417	82.3	5.6
65	47.34	19.8	937.3	774.6	1.212	6103	4923	82.6	5.3
70	47.2	23.89	1127.6	941.9	1.391	6466	5677	83.5	5.0
75	47.06	28.38	1335.6	1119.0	1.564	6832	6323	83.8	4.7
80	46.91	33.06	1550.8	1302.3	1.728	7197	6964	84.0	4.5
85	46.74	38.28	1789.2	1501.0	1.902	7536	7684	83.9	4.3
90	46.48	45.68	2123.2	1784.3	2.165	7870	8674	84.0	4.1
95	46.28	52.08	2410.3	2016.7	2.350	8195	9382	83.7	3.9
100	45.94	62.63	2877.2	2390.4	2.649	8617	10568	83.1	3.7

220KV FALCON 19*10 AMPX 80A (5-14S) 12S MAX 105C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	47.9	3.39	162.4	110.7	0.355	2978	1422	68.2	8.8
35	47.84	4.77	228.2	164.0	0.461	3398	1865	71.9	8.2
40	47.76	6.74	321.9	243.4	0.600	3874	2445	75.6	7.6
45	47.67	9.51	453.3	355.0	0.773	4386	3159	78.3	7.0
50	47.56	12.44	591.6	472.6	0.935	4827	3839	79.9	6.5
55	47.46	15.63	741.8	602.1	1.099	5232	4497	81.2	6.1
60	47.33	19.19	908.3	742.1	1.268	5591	5140	81.7	5.7
65	47.2	23.21	1095.5	896.9	1.440	5948	5823	81.9	5.3
70	47.04	27.59	1297.8	1065.1	1.615	6298	6518	82.1	5.0
75	46.87	33.07	1550.0	1275.5	1.839	6623	7443	82.3	4.8
80	46.73	38.47	1797.2	1478.8	2.022	6984	8159	82.3	4.5
85	46.49	45.52	2116.2	1740.0	2.278	7294	9148	82.2	4.3
90	46.29	52.59	2434.4	1984.0	2.489	7612	10022	81.5	4.1
95	46.08	59.46	2739.9	2226.1	2.678	7938	10863	81.2	3.9
100	45.67	72.39	3306.1	2644.2	3.044	8295	12131	80	3.7

380KV Test Notes

The following 380KV data are theoretical values when the input voltage is 24V, for reference only. At room temperature 25C with no additional cooling device: current over 80A is non-working zone; 29-80A is short-term (about 10-30s) working zone; below 29A is sustainable working zone. Control motor running time according to working environment temperature and heat dissipation conditions.

380KV APC 18×8 AMPX 80A (5-14S) 6S MAX 70C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	23.95	3.97	95.1	50.3	0.188	2553	822	52.9	8.6
35	23.88	5.43	129.7	74.8	0.245	2917	1081	57.7	8.3
40	23.84	7.22	172.1	106.9	0.310	3293	1381	62.1	8.0
45	23.76	9.59	227.9	152.3	0.391	3719	1757	66.8	7.7
50	23.64	12.33	291.5	204.5	0.477	4094	2142	70.2	7.3
55	23.56	15.33	361.2	261.8	0.562	4448	2517	72.5	7.0
60	23.45	18.59	435.9	323.5	0.648	4767	2921	74.2	6.7
65	23.39	22.39	523.7	394.7	0.742	5080	3355	75.4	6.4
70	23.23	26.37	612.6	467.0	0.831	5367	3741	76.2	6.1
75	23.14	30.83	713.4	551.3	0.932	5649	4203	77.3	5.9
80	22.94	36.35	833.9	650.4	1.050	5915	4750	78.0	5.7
85	22.81	41.76	952.5	746.4	1.148	6209	5163	78.4	5.4
90	22.6	48.23	1090.0	857.5	1.269	6453	5705	78.7	5.2
95	22.43	55.53	1245.5	981.9	1.399	6702	6274	78.8	5.0
100	22.13	64.78	1433.6	1124.2	1.526	7035	6805	78.4	4.7

380KV FALCON 18*10 AMPX 80A (5-14S) 6S MAX 79C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	23.99	4.42	106.0	59.1	0.222	2542	914	55.8	8.6
35	23.94	6.01	143.9	87.0	0.287	2895	1180	60.5	8.2
40	23.85	8	190.8	122.9	0.361	3252	1494	64.4	7.8
45	23.75	10.6	251.8	172.8	0.453	3642	1873	68.6	7.4
50	23.65	13.51	319.5	227.5	0.542	4009	2240	71.2	7.0
55	23.54	17.03	400.9	294.2	0.644	4363	2660	73.4	6.6
60	23.41	20.8	486.9	364.5	0.743	4685	3076	74.9	6.3
65	23.29	25.36	590.6	447.8	0.860	4972	3545	75.8	6.0
70	23.16	30.08	696.7	533.3	0.972	5241	3972	76.6	5.7
75	23.03	35.09	808.1	625.0	1.081	5521	4453	77.3	5.5
80	22.88	40.33	922.8	712.8	1.175	5793	4890	77.2	5.3
85	22.69	46.83	1062.6	826.0	1.305	6044	5346	77.7	5.0
90	22.49	53.21	1196.7	933.6	1.416	6296	5824	78	4.9
95	22.3	59.9	1335.8	1040.4	1.517	6549	6250	77.9	4.7
100	21.96	70.15	1540.5	1192.5	1.667	6831	6915	77.4	4.5

380KV FALCON 19*10 AMPX 80A (5-14S) 6S MAX 88C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	23.97	4.99	119.6	70.6	0.268	2514	1084	59	9.1
35	23.91	6.87	164.3	103.0	0.345	2850	1411	62.7	8.6
40	23.84	8.94	213.1	141.7	0.427	3168	1721	66.5	8.1
45	23.75	11.78	279.8	195.8	0.531	3521	2143	70.0	7.7
50	23.63	15.33	362.2	260.4	0.637	3903	2624	71.9	7.2
55	23.5	19.78	464.8	343.8	0.773	4247	3174	74	6.8
60	23.36	24.26	566.7	425.2	0.891	4556	3675	75	6.5
65	23.25	28.94	672.9	511.2	1.004	4862	4103	76	6.1
70	23.1	34.72	802.0	609.5	1.143	5092	4662	76	5.8
75	22.95	40.06	919.4	704.0	1.254	5361	5121	76.6	5.6
80	22.77	46.37	1055.8	803.7	1.369	5606	5640	76.1	5.3
85	22.59	52.94	1195.9	916.5	1.496	5850	6116	76.6	5.1
90	22.35	60.73	1357.3	1035.8	1.630	6068	6679	76.3	4.9
95	22.09	69.16	1527.7	1159.3	1.771	6251	7284	75.9	4.8
100	21.79	80.33	1750.4	1321.6	1.927	6549	7877	75.5	4.5

For build integration and variant selection (220KV vs 380KV), contact [email protected] or visit https://rcdrone.top/.

Details

MAD X5220 (Long) motor dimension and mounting drawings show the 106.5 mm body length, 44 mm bolt circle, and M8 shaft detail for fit checks.

The MAD X5220 (Long) motor includes a prop adapter, prop plate and cross mount, plus screws, 4.0mm bullet connectors, heat-shrink tubes, and stickers.

The MAD X5220 long motor includes a performance chart and dimension drawings to help match thrust needs and plan mounting.

MAD X5220 PE 220KV motor test data with a Falcon 18×10 prop on 12S details thrust, RPM, current, and efficiency across throttle levels.

The MAD X5220 long motor datasheet lists 380KV, 415 g weight, and includes performance curves and mounting dimensions for build planning.

MAD X5220 IP 330KV test data with a FALCON 18×10 prop on 6S lists throttle steps with voltage, current, RPM, thrust, and efficiency values for tuning and setup.
