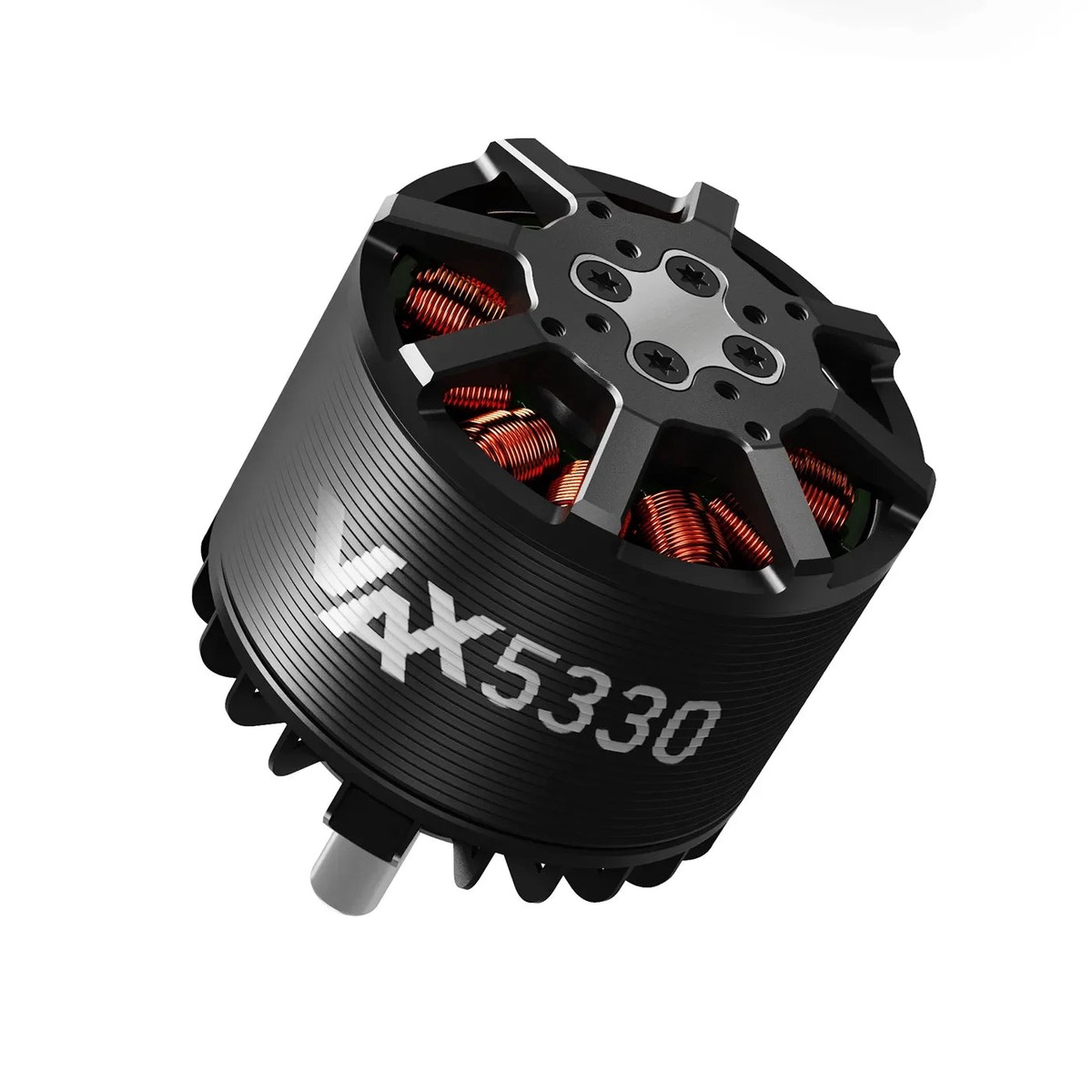

Name: MAD VAX 5330 VTOL Drone Motor - 220KV 260KV 12S 12.8kgf Brushless Motor with Thrust Beaing for RC VTOL Airplane ,XClass Frame-1540
SKU: A2380054382
Availability: InStock

Description
Reviews (0)

MAD VAX 5330 VTOL Drone Motor Summary

The MAD VAX 5330 VTOL Airplane Drone Motor is a high-performance motor designed for UAV applications. It features a robust design with anti-corrosive stator material and rain protection, making it suitable for various environmental conditions. The motor is available in two KV ratings (220KV and 260KV), each offering different specifications tailored to specific needs.

220KV Motor:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 70.8A
- Maximum Thrust: 11.2 kg
- Maximum Power: 3263W
260KV Motor:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 97A
- Maximum Thrust: 12.8 kg
- Maximum Power: 4377W

Both versions are equipped with high-quality bearings, independent centrifugal heat dissipation, and excellent balance. They are designed for heavy-lift drones, supporting take-off weights up to 44 kg for octocopters.

MAD VAX 5330 VTOL Drone Motor Specifications

Motor Data

Parameter	Value
Motor Model	MAD VAX 5330 EEE V1.0
Number of Pole Pairs	7
Stator	TAIWAN / Anticorrosive
Varnished Wire Degree	180C
Motor Size	D: 61.1 84 mm
Magnet Degree	150C
Degree of Protection	Rain protection
Cable Length	150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent
Rotor Balance	5 mg
Propeller Mounting Holes	D: 31 M34, D: 20 M34
Motor Balance	10 mg
Shaft Diameter	IN: 8 mm
Motor Mounting Holes	D: 30 M44, D: 44 M44
Bearing	EZO 688ZZ2 / NMB 19801
Disruptive Test	500 V
Additional Accessories	Prop Adapter(M8) 1, Propeller Plate 1, 4.0mm Bullet Connector3, Heat Shrinkable Tube3, M412mm 4 Motor Screws, M38mm 4 Prop Adapter Fixing Screws, M8 Nut1, Sticker1

MAD VAX 5330 220KV 260KVSpecifications

Parameter	220KV	260KV
RPM/V	220KV	260KV
Nominal Voltage	12S lipo battery	12S lipo battery
No Load Current	1.35A / 30V	1.6A / 20V
Internal Resistance	45m	21m
Motor Weight	570 g	564 g
Product Boxed Weight	750g (110 x 110 x 65 mm)	732g (110 x 110 x 65 mm)
Maximum Current	70.8 A	97 A
Maximum Power	3263W	4377W
Maximum Thrust	11.2 kg	12.8 kg
Maximum Torque	3 Nm	3.5 Nm
Recommended ESC	MAD AMPX 80A (5-14S)	MAD AMPX 120A (5-14S)
Recommended Propellers	18×12, 19×10, 20×10, 17x8X3	18×12, 19×10, 20×10, 17x8X3
UAV Take-off Weight	12S-20/ 17kg–Quadcopter 25.5kg–Hexacopter 34kg–Octocopter	12S-20/ 22kg–Quadcopter 33kg–Hexacopter 44kg–Octocopter
Single Rotor Take-off Weight	4kg ~ 5kg	5kg ~ 6kg

MAD VAX 5330 VTOL Drone Motor Details
