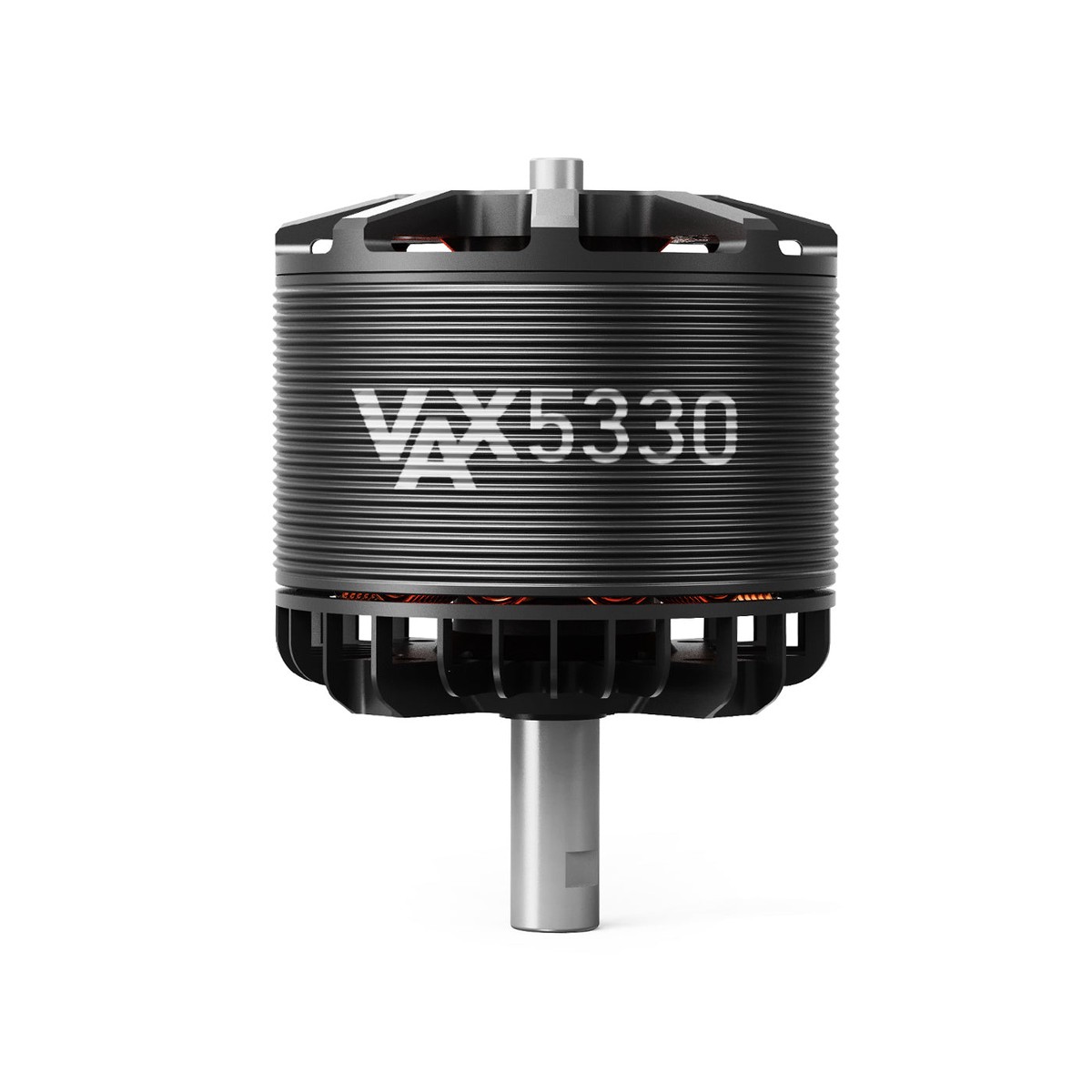

MAD VAX 5330 V2.0 Long Shaft eVTOL Airplane Drone Motor 220KV/260KV, 12S Support, 5330 EEE

Overview

The MAD VAX 5330 V2.0 Long Shaft motor is an eVTOL airplane drone motor offered in 220KV and 260KV variants. It is designed for eVTOL, aircraft, and XCLASS platforms carrying 810 kg and supports 12S voltage. The long-shaft design can be used to drive pusher propellers where the motor is mounted in the middle of the fuselage and power is transmitted through an axle to the tail boom.

Key Features

• Long shaft design for pusher-prop drivetrain layouts
• Supports 12S voltage setups
• Rain protection
• Anticorrosive stator (Taiwan)
• Varnished wire temperature rating: 180C; magnet temperature rating: 150C
• Independent centrifugal heat dissipation
• Rotor balance: 5 mg; motor balance: 10 mg
• Disruptive test: 500 V

Specifications

Motor Data (General)

220KV Variant (Datasheet Summary)

• Recommended hover thrust: 3.04.0 kgf
• Maximum thrust (headline): 11.0 kgf
• Efficiency (headline): >81%
• Optimized weight (headline): 637 g

260KV Variant (Datasheet Summary)

• Recommended hover thrust: 3.55.0 kgf
• Maximum thrust (headline): 11.5 kgf
• Efficiency (headline): >78%
• Optimized weight (headline): 625 g

Whats Included

• Motor x1
• Prop adapter x1
• Locking shaft cover (plate) x1
• Support x1
• 4.0mm bullet connector x3
• Heat shrinkable tube x3
• M4*12 motor screws x4
• M3*8 prop adapter screws x4
• M4*5 machine screw x2
• M4*12 counterhead cross screws x4
• M8 nut x1
• Sticker x2
• Propeller plate x1
• Rotor propeller adapter x1
• M3*18mm propeller screws x4

Applications

• eVTOL aircraft and fixed-wing airplane drone propulsion (12S setups)
• XCLASS multirotors
• Pusher-prop configurations using a long shaft/axle drivetrain

For KV selection (220KV vs 260KV), propeller/ESC matching, or integration questions, contact support@ or visit https:///.

Details

MAD VAX 5330 V2.0 motor drawings provide key dimensions, long-shaft length, and bolt-hole spacing for accurate mounting and clearances.

The MAD VAX 5330 V2.0 long-shaft motor kit includes a prop adapter, mounting hardware, 4.0mm bullet connectors, heat-shrink tubing, and stickers.

MAD VAX5330 220KV performance data includes thrust and power curves with detailed test tables for 3040V (12S) operation.

The MAD VAX5330 spec sheet outlines key performance details like 260KV rating, 12S voltage range, and thrust/efficiency data across prop setups.
