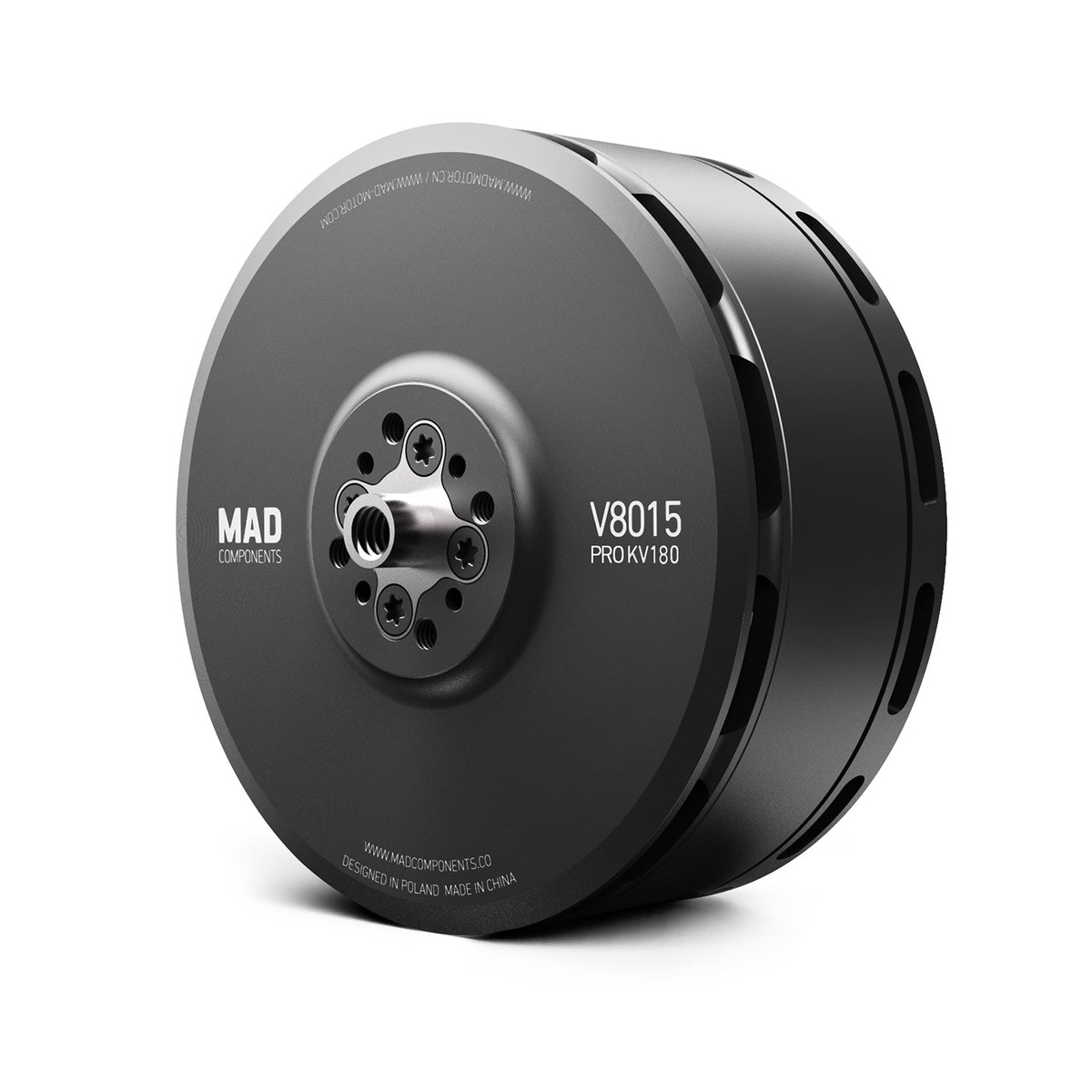

Name: MAD V8015 PRO IPE V1.0 180KV Feathering Propeller Autocenter eVTOL Drone Motor IP35
SKU: A2380047911
Availability: InStock

Description
Reviews (0)

Overview

MAD V8015 PRO IPE feathering propeller autocenter eVTOL drone motor with propeller return-to-horizontal function after shutdown for streamlined alignment.

Key Features

Autocenter feathering propeller system: returns to a horizontal position relative to the wing upon shutdown.
Centrifugal heat dissipation: YES
IP35 degree of protection

For integration support (ESC/prop matching) and order assistance, contact [email protected] or visit https://rcdrone.top/.

Specifications

Motor Data

Motor Model	MAD V8015 PRO IPE V1.0
KV	180KV
Number of pole pairs	14
Stator	Anticorrosive
Varnished wire Degree	180C
Motor Size	D:88.5 44.2 mm
Magnet Degree	150C
Degree of Protection	IP35
Cable Length	1000 mm 14# Awg(Black) silicone
Rotor Balance	25 mg
Motor Balance	10 mg
Propeller Mounting Holes	D:20 M34, D:23 M44
Motor Mounting Holes	D:40 M44
Shaft Diameter	IN: 12 mm
Bearing	6901ZZ*2
Disruptive test	500 V

Performance / Setup Data (180KV)

Recommended hover thrust	6.0~8.0 kgf
Maximum thrust	18.3 kgf
Optimized weight	725 g
Efficiency	>76%
Nominal Voltage	12S lipo battery
MAX temperature	88C
RPM/V	180KV
No Load Current	2.85A / 20V
Internal resistance	19m
Motor Weight	725 g
Product Boxed Weight	1073 g (150 x 150 x 65 mm)
Maximum Current	110.8 A
Maximum Power	5280 W
Maximum thrust	18.3 kg
Maximum Torque	5.7 Nm
Recommended ESC	MAD AMPX 120A (5-14S)
Recommended Propellers	26×7.8
Test prop/ESC line	FLUXER PRO 26×7.8 MATT; AMPX 120A (5-14S)
UAV take-off weight	12S-26″/ 28kg–Quadcopter; 42kg–Hexacopter; 56kg–Octocopter
Single rotor take-off weight	6kg ~ 8kg

Analytical Graph Notes (Test Conditions)

Measured with input voltage 48 V, ambient temperature 25C, sea level; rotational speed adjusted by throttle.
Maximum thrust may depend on propeller type, air pressure, and other conditions.
At room temperature 25C with no additional cooling: current over 111 A is non-working zone; 35-111 A is short-term (about 10-30 s) working zone; below 35 A is sustainable working zone.

Operation Data Table (48 V reference)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	48.08	5.38	258.8	175.3	0.716	2339	2427	67.85	9.4
35	48.06	7.57	363.8	254.2	0.920	2639	3108	69.9	8.5
40	48.06	9.15	439.7	344.4	1.124	2926	3792	70.81	7.8
45	48.06	12.49	600.3	478.3	1.409	3242	4699	73.78	7.2
50	48.02	16.98	815.4	670.1	1.774	3607	5895	77.62	6.8
55	48.02	21.43	1029.1	878.8	2.111	3975	7014	75.22	6.0
60	48.01	29.08	1396.1	1131.2	2.528	4273	8309	76.5	5.6
65	47.96	34.9	1673.8	1391.7	2.923	4546	9686	78.63	5.5
70	47.95	41.89	2008.6	1607.4	3.175	4834	10458	74.65	4.9
75	47.89	48.14	2305.4	1909.3	3.585	5085	11790	77.2	4.8
80	47.84	61.78	2955.6	2232.6	4.001	5329	13037	75.51	4.4
85	47.83	70.3	3362.4	2568.1	4.406	5566	14340	72.5	4.1
90	47.79	81.06	3873.9	2906.5	4.803	5779	15469	71.01	3.8
95	47.74	94.16	4495.2	3238.0	5.160	5992	16636	71.25	3.7
100	47.65	110.81	5280.1	3715.7	5.701	6224	18303	69.11	3.4

Drawing and Mount Holes (key labels)

Motor mounting holes: 40-M4X4
Propeller mounting holes: 23-M4X4; 20-M3X4
Additional drawing labels: 39.2; 5; 88.5; 8; 10; 6; 20; 3.1X4; 3; 30

Whats Included

Motor x1
Propeller Plate x1
Conversion x1
4.0mm Bullet Connector x3
Heat Shrinkable Tube x3
M4*12 Motor Screws x4
M3*14 Propeller Screws x4
Sticker x2

Details

The MAD V8015 PRO motor drawing details the 88.5 body, 8 shaft, and M3/M4 bolt patterns for matching your mount and prop hub.

The MAD V8015 PRO IPE V1.0 motor kit includes the motor, propeller plate, conversion joint, bullet connectors, heat shrink tubing, mounting screws, and stickers for a complete install.

MAD V8015 PRO 180KV eVTOL motor specs list a 6.08.0 kgf thrust range, up to 18.3 kgf max thrust, 725 g weight, and 12S max support.
