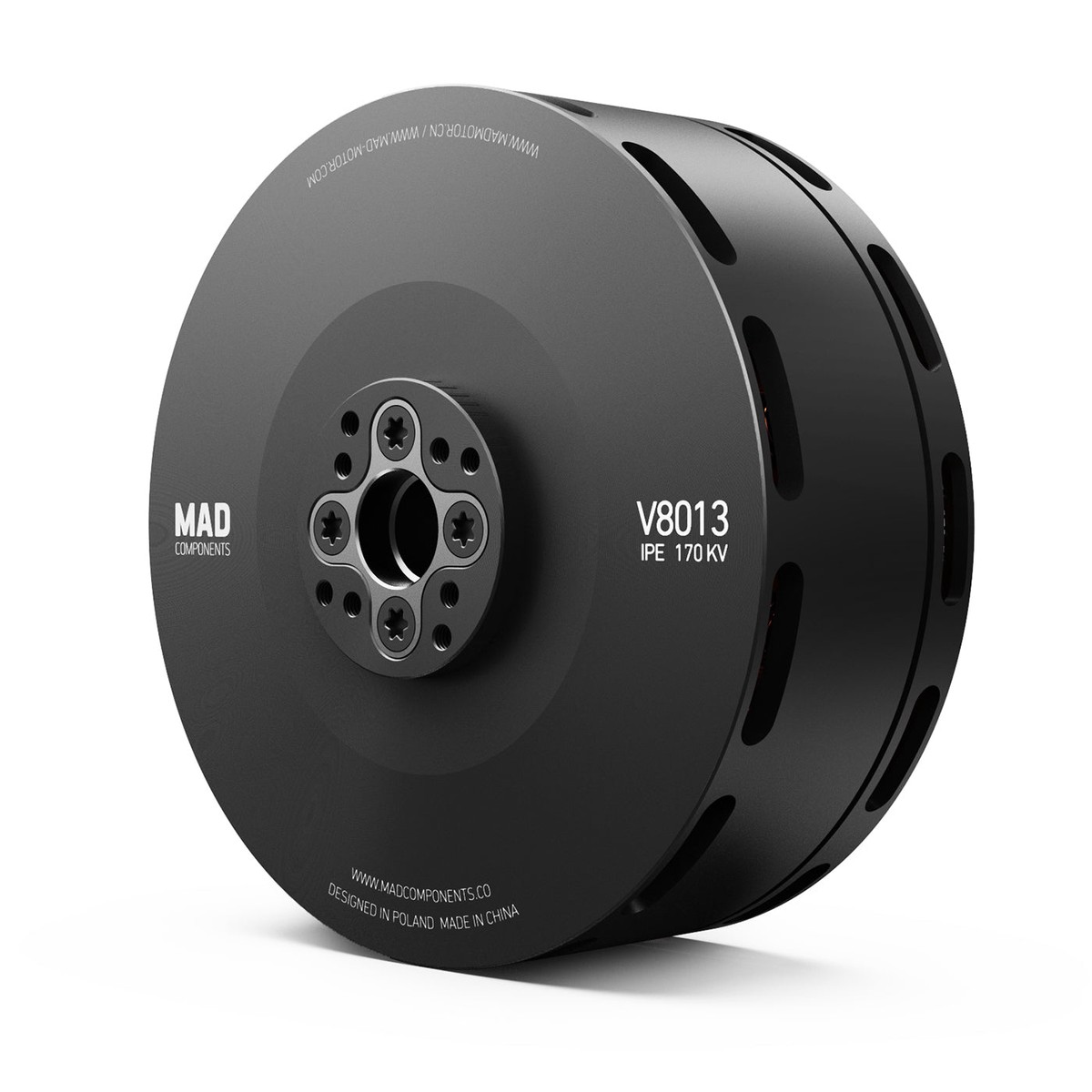

MAD V8013 IPE eVTOL Drone Motor 135KV/150KV/170KV, IP35, 12S LiPo, Mounting Holes

Overview

MAD V8013 IPE is an eVTOL drone motor designed for VTOL multirotor platforms. Published configuration guidance targets 4.56.5 kg per rotor payload with a 28″ carbon propeller, and lists maximum thrust up to 14.5 kg per rotor. It is intended to provide reliable power support for endurance-focused UAV flights.

For integration and compatibility questions (KV selection, prop/ESC matching, mounting), contact https://rcdrone.top/ or [email protected].

Key Features

• Anticorrosive stator
• Centrifugal heat dissipation: YES
• Protection rating: IP35
• Balance specifications: rotor balance <= 25 mg; motor balance <= 10 mg
• Multiple mounting patterns for motor and propeller plates (see Specifications)

Specifications

Motor Data (V8013 IPE V1.0)

Drawing Dimensions & Mounting (from drawing)

KV Variant Performance Summary (from performance sheets)

Note: Documentation contains multiple weight figures (unit motor weighs 1910 g in one description; performance sheets list motor weights by KV variant). Confirm the required variant and configuration before integration.

Performance Sheet Test Notes (verbatim content, summarized)

• Measurement basis statement: data measured with input voltage 48 V, at temperature 25C and sea level; rotational speed adjusted by throttle.
• 135KV current zone note: over 74A non-working zone; 2474A short-term (about 1030 s) working zone; below 24A sustainable working zone.
• 150KV current zone note: over 78A non-working zone; 2478A short-term (about 1030 s) working zone; below 24A sustainable working zone.
• 170KV current zone note: over 104A non-working zone; 36104A short-term (about 1030 s) working zone; below 36A sustainable working zone.

Recommended VTOL Matching (Solution Table)

Note: For a coaxial configuration, a total thrust loss of 25% should be considered.

Whats Included

• Motor x1
• Propeller Plate x1
• Locating Pin x1
• 4.0mm Bullet Connector x3
• Heat Shrinkable Tube x3
• M4*12 Motor Screws x4
• M3*14 Propeller Screws x4
• Sticker x2

Performance Charts (Provided)

The MAD V8013 IPE eVTOL motor datasheet lists key specs like 135KV rating, 4565V range, 950g weight, and efficiency above 83%.

The MAD V8013 150KV eVTOL motor is listed at 544 g with up to 15 kg max thrust, 4.56.5 kg efficient payload, and >80% efficiency.

MAD V8013 170KV eVTOL motor is rated for 12S setups and lists 534g weight with efficiency above 76% and thrust curve data.

MAD V8013 IPE motor mechanical dimensions and bolt-hole patterns help confirm mounting and clearance during eVTOL builds.

Details

The MAD V8013 IPE motor drawing details the overall diameter and the M3/M4 bolt patterns to help plan mounting and adapter plates.

The MAD V8013 IPE eVTOL drone motor comes with a propeller plate, locating pin, 4.0 mm bullet connectors, heat shrink tubing, and mounting screws for installation.

The MAD V8013 motor is listed as an energy-efficient 35 kW unit for 4565 V setups, with up to 145 kgf thrust and a 950 g weight.

The MAD V8013 150KV IPE eVTOL motor is rated up to 12S and lists 15kgf thrust, 544g weight, and over 80% efficiency.

The MAD V8013 170KV eVTOL drone motor is rated for 12S setups and lists a 534 g motor weight with thrust and efficiency curves for tuning.
