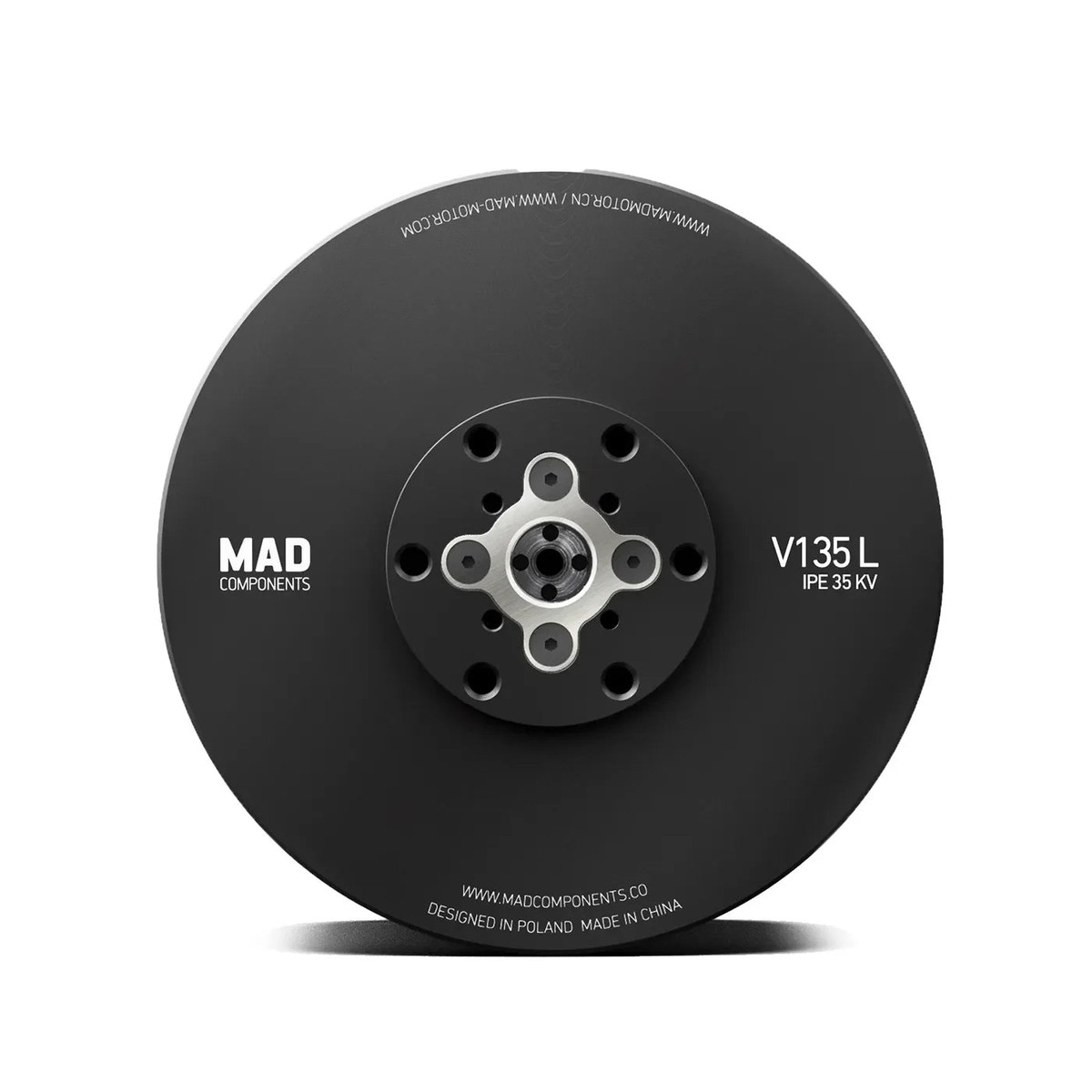

Name: MAD V135L IPE VTOL Motor - 24S 35KV 70kgf Brushless Motor for the Flying eVTOL
SKU: A2380054462
Availability: InStock

Description
Reviews (0)

MAD V135L IPE VTOL Motor Overview

The MAD V135L IPE V2.0 is a high-performance brushless drone motor designed for heavy-lift drones. With a motor size of 145×66 mm and a protection degree of IP35, it features advanced heat dissipation and robust build quality, including an anticorrosive stator from Taiwan. This motor provides a maximum thrust of 70 kg and supports a nominal voltage of 24S lipo battery, making it ideal for large-scale UAV applications. It also offers significant power output, up to 20261W, and a maximum current of 211A. The motor is well-suited for quadcopters, hexacopters, and octocopters with substantial take-off weights, and includes comprehensive accessories for ease of installation.

MAD V135L IPE VTOL Motor Specifications

Motor Data

Specification	Detail
Motor Model	MAD V135L IPE V2.0
Stator	TAIWAN / Anticorrosive
Motor Size	D:145 66 mm
Degree of Protection	IP35
Centrifugal Heat Dissipation	YES
Propeller Mounting Holes	D:50 M66
Shaft Diameter	IN: 20 mm
Bearing	EZO 6904ZZ *2
Number of Pole Pairs	19
Varnished Wire Degree	180C
Magnet Degree	180C
Cable Length	150 mm (extended Enameled wires)
Rotor Balance	10 mg
Motor Balance	20 mg
Motor Mounting Holes	D:50 M64
Disruptive Test	500 V
Additional Accessories	Propeller Plate 1, Locate Pin 1, 8.0mm Bullet Connector3, Heat Shrinkable Tube3, M625mm 4 Motor Screws, M640mm 6 Propeller Screws, Sticker*2

Specifications

Specification	Detail
RPM/V	35 KV
No Load Current	2.55A / 30V
Motor Weight	2245 g
Maximum Current	211 A
Maximum Thrust	70 kg
Recommended ESC	MAD AMPX 300A (12-24S)
UAV Take-off Weight	24S-54 / 112kg — Quadcopter 168kg — Hexacopter 224kg — Octocopter
Nominal Voltage	24S lipo battery
Internal Resistance	44m
Product Boxed Weight	3225g (260 x 210 x 120 mm)
Maximum Power	20261W
Maximum Torque	51.2 Nm
Recommended Propellers	54×24
Single Rotor Take-off Weight	25kg ~ 30kg
