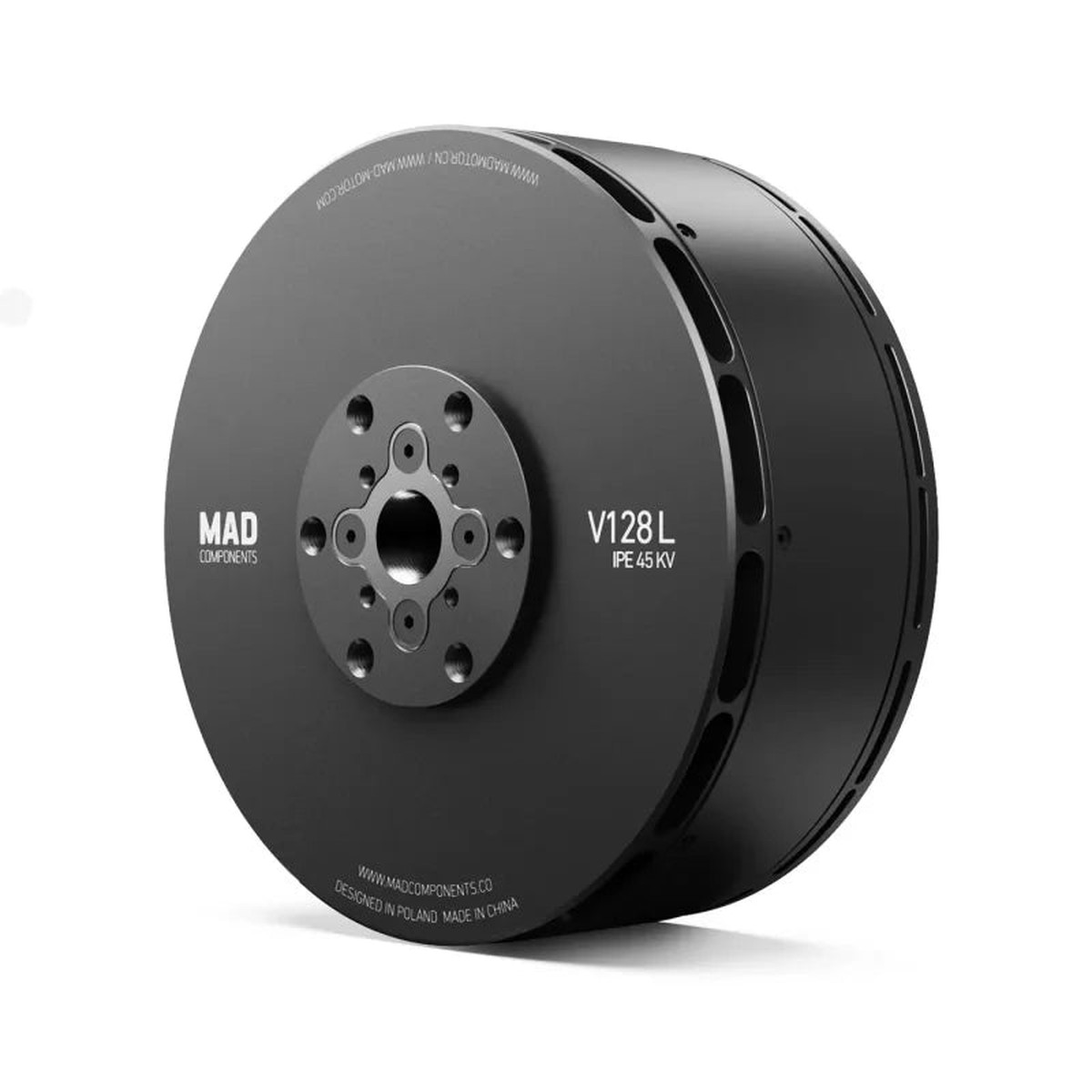

Name: MAD V128L IPE V2.0 VTOL Drone Motor
SKU: WKA86610370159
Availability: InStock

Description
Reviews (0)

MAD V128L IPE 2.0 VTOL Drone Motor Overview

The MAD V128L IPE V2.0 vtol drone motor is a high-performance motor designed for large UAV applications, featuring a robust build with advanced anticorrosive stator and protective IP35 rating. It supports significant power output and torque, with a maximum thrust capacity of 70 kg and maximum power of 21091W. The motor is well-suited for heavy-lift drones, with compatibility for quadcopters, hexacopters, and octocopters with take-off weights up to 176 kg. It includes various accessories and supports 24S lipo battery setups, making it ideal for demanding aerial operations requiring reliability and high efficiency.

MAD V128L Designed to carry payloads of 20-26kg per rotor, with 47.5 carbon propeller. Max thrust is up to 50kg per rotor, unit motor weighs only 1910g. with large pitch VOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional aerial UAVs.

MAD V128L IPE 2.0 VTOL Drone Motor Specifications

Motor Data

Parameter	Specification
Motor Model	MAD V128L IPE V2.0
Stator	TAIWAN / Anticorrosive
Motor Size	D:145 59 mm
Degree of Protection	IP35
Centrifugal Heat Dissipation	YES
Propeller Mounting Holes	D:50 M66
Shaft Diameter	IN: 20 mm
Bearing	EZO 6904ZZ *2
Additional Accessories	Propeller Plate 1, Locate Pin 1, 8.0mm Bullet Connector3, Heat Shrinkable Tube3, M625mm 4 Motor Screws, M640mm 6 Propeller Screws, Sticker*2
Number of pole pairs	19
Varnished wire Degree	220C
Magnet Degree	180C
Cable Length	150 mm (extended Enameled wires)
Rotor Balance	10 mg
Motor Balance	20 mg
Motor Mounting Holes	D:50 M64
Disruptive test	500 V

Specifications

Parameter	45 KV
RPM/V	45 KV
No Load Current	1.28A / 30V
Motor Weight	1910 g
Maximum Current	219.3 A
Maximum Thrust	70 kg
Recommended ESC	MAD AMPX 200A (12-24S), 300A (12-24S)
UAV Take-off Weight	24S-47.5 / 88kg–Quadcopter 132kg–Hexacopter 176kg–Octocopter
Nominal Voltage	24S lipo battery
Internal resistance	60.4m
Product Boxed Weight	2860g (260 x 210 x 120 mm)
Maximum Power	21091W
Maximum Torque	43.9 Nm
Recommended Propellers	47.5×17.4
Single Rotor Take-off Weight	20kg ~ 26kg
