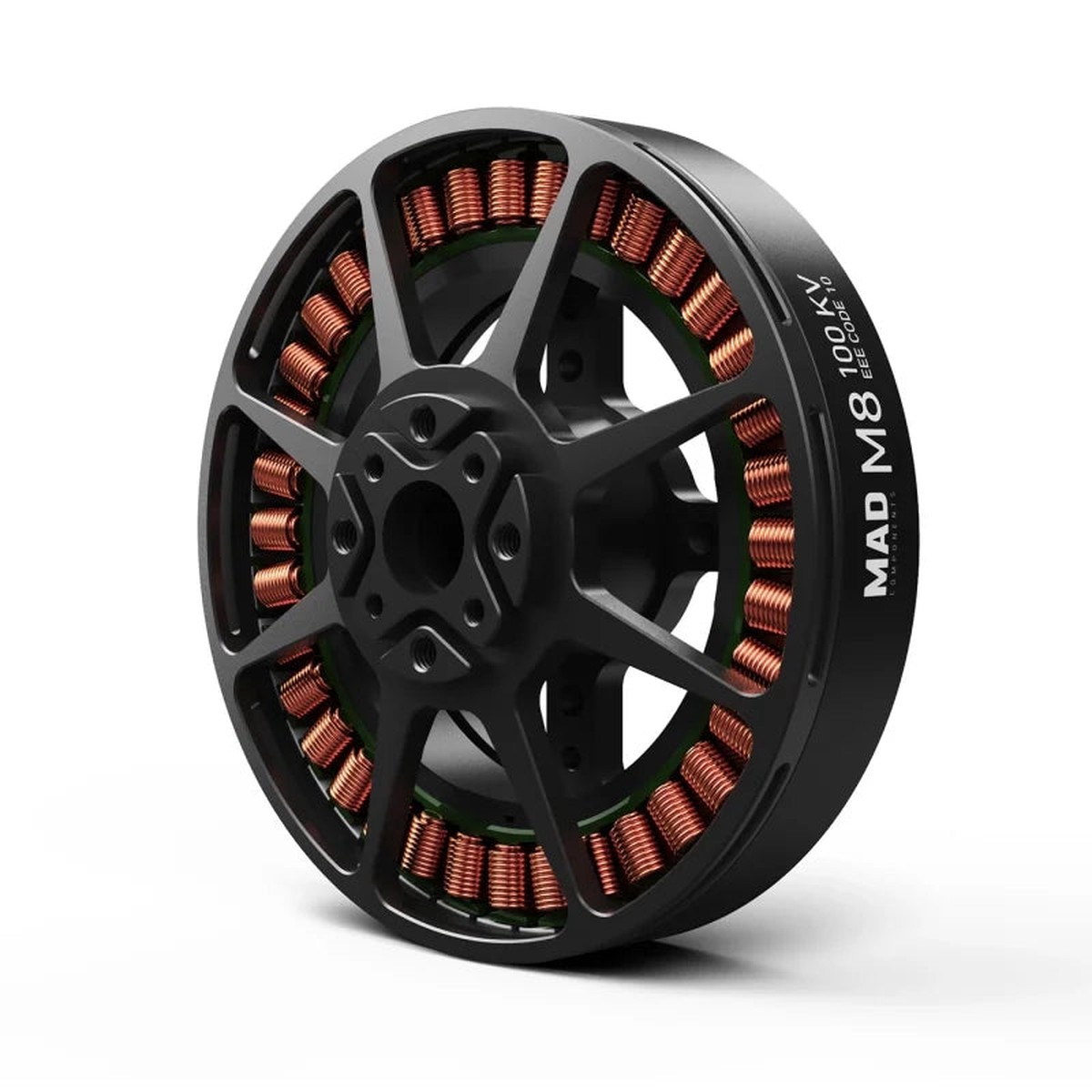

Name: MAD M8C10 EEE Drone Motor - KV100 KV90 Long Range Drone Motor with 28-29inch Propeller Max Thrust is Up to 10.5kg Per Rotor
SKU: WKA86610370182
Availability: InStock

Description
Reviews (0)

MAD M8C10 EEE Drone Motor Specification

Motor Data
Motor Model	MAD M8C10 EEE V2.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire Degree	180C
Motor Size	D:87.1 28.7 mm	Motor Balance	150C
Degree of Protection	Rain protection	Cable Length	80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	5 mg
Propeller Mounting Holes	D:20 M34, D:23 M44	Motor Balance	10 mg
Shaft Diameter	IN: 15 mm	Motor Mounting Holes	D:36 M44, D:48 M34
Bearing	6802ZZ*2	Disruptive test	500 V

Motor Data
Motor Model	MAD M8C10 EEE V1.0	Number of pole pairs
Stator	TAIWAN / Anticorrosive	Varnished wire Degree
Motor Size	D:87.1 28.7 mm	Magnet Degree
Degree of Protection	Rain protection	Cable Length
Centrifugal Heat Dissipation	Independent	Rotor Balance
Propeller Mounting Holes	D:20 M34, D:23 M44	Motor Balance
Shaft Diameter	IN: 15 mm	Motor Mounting Holes
Bearing	EZO 6802ZZ*2	Disruptive test
Additional Accessories	Propeller Plate 1, Locating Pin 1, M410mm 4 (Motor Screws), M314mm 4 (Propeller Screws), 3.5mm Bullet Connector 3, Heat Shrinkable Tube 3, Sticker*2

Specifications
RPM/V	90 KV
Nominal Voltage	12S lipo battery
No Load Current	0.82A / 30V
Internal resistance	122 m
Motor Weight	298 g
Product Boxed Weight	548g (150 x 150 x 65 mm)
Maximum Current	38.8 A
Maximum Power	1863W
Maximum thrust	9.8 kg
Maximum Torque	3.8 Nm
Recommended ESC	MAD AMPX 40A (5-14S) HV
Recommended Propellers	32X12, 32×9.6
UAV take-off weight	12S-32″/16kg–Quadcopter
	24kg–Hexacopter 32kg–Octocopter
Single rotor take-off weight	3kg ~ 4.5kg

Specifications

RPM/V

100 KV

Nominal Voltage

12S lipo battery

No Load Current

0.93A / 30V

Internal resistance

110 m

Motor Weight

290 g

Product Boxed Weight

551g (150 x 150 x 65 mm)

Maximum Current

45.5 A

Maximum Power

2089W

Maximum thrust

10.6 kg

Maximum Torque

4.0 Nm

Recommended ESC

MAD AMPX 60A (5-14S) HV

Recommended Propellers

28×12, 29×9.6, 30×10.0, 32×9.6

UAV take-off weight

12S-30″/16kg–Quadcopter

24kg–Hexacopter 32kg–Octocopter

Single rotor take-off weight

4kg ~ 5.5kg

Introducing the MAD M8C10 EEE Drone Motor, designed for enthusiasts and professionals alike! This motor offers an impressive KV100/KV90 rating, making it suitable for long-range drone applications. With a maximum thrust of up to 10.5kg per rotor, this motor is capable of handling a recommended maximum weight of 3.00-4.50 kgf. Note that actual performance may vary depending on factors such as battery level, propeller type, hover thrust, air pressure, and other conditions.
