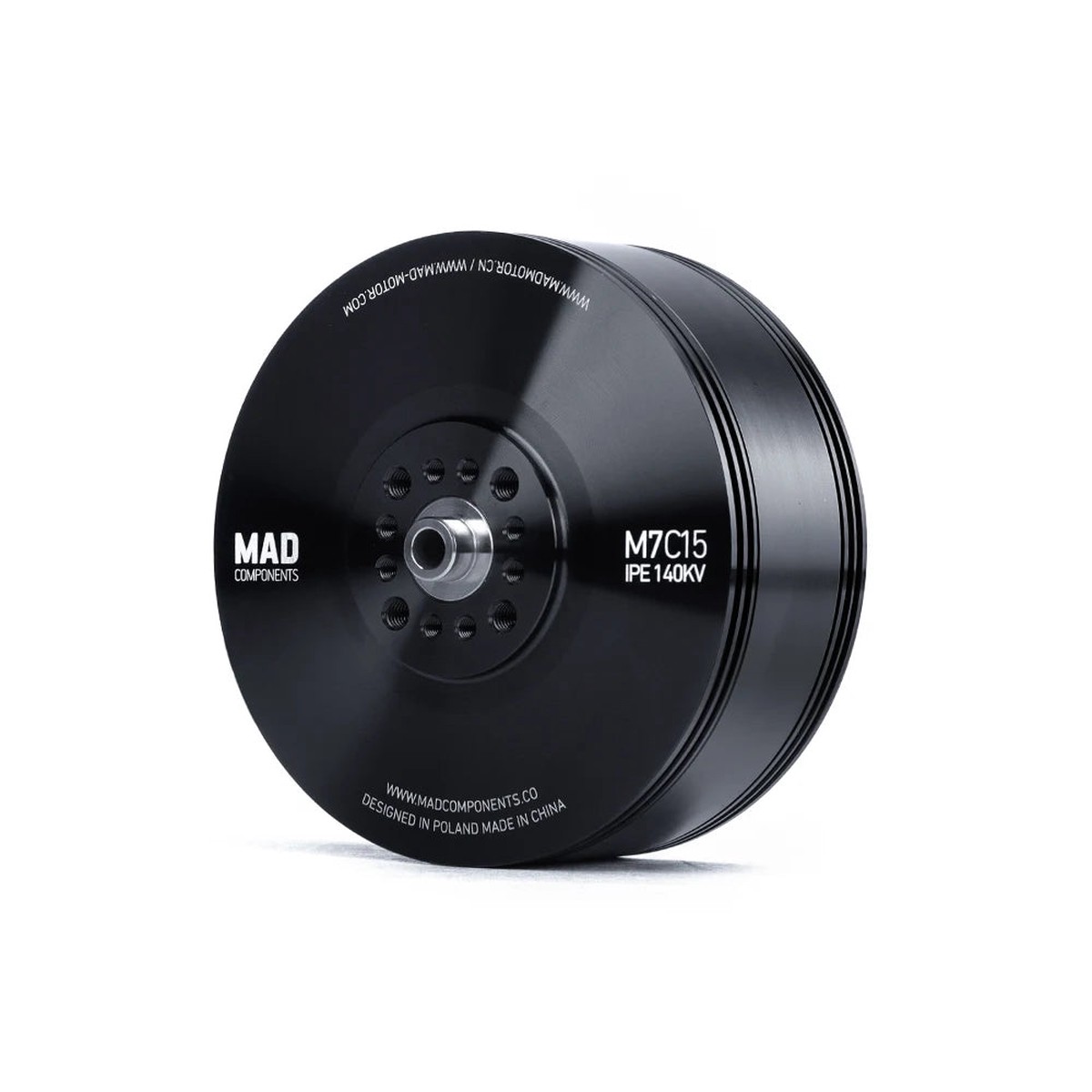

MAD M7C15 IPE Drone Motor – 12S 140KV 220KV 15.5kgf Brushless Motor for the Heavy Hexacopter Octocopter Fireflighting and Tethered Drone

MAD M7C15 IPE Drone Motor Overview

The M7C15 IPE Manned Drone Motor is a high-performance motor designed for use in manned drones. This motor features a robust build with anticorrosive stator and a motor size of 79.2 42.7 mm. It offers an impressive degree of protection with an IP45 rating and incorporates effective centrifugal heat dissipation.

Key specifications include a maximum current of 78.3A and a maximum power output of 3693W, supporting significant thrust up to 15.5 kg and a maximum torque of 5.0 Nm. The motor operates at a nominal voltage of 12S Lipo and has a recommended electronic speed controller (ESC) of MAD AMPX 80A (5-14S). It is capable of efficient performance with a low internal resistance of 38.2m and a no-load current of 1.5A at 22V.

The M7C15 IPE motor is well-suited for heavy-lift applications, such as quadcopters, hexacopters, and octocopters, with UAV take-off weights ranging from 20kg to 40kg. Additionally, it supports single rotor take-off weights between 4kg and 6kg. The motor is also equipped with durable 688ZZ bearings and is compatible with propellers sized 26×7.8 and 27×8.1, ensuring stability and balance during operation.

MAD M7C15 IPE Drone Motor Specifications

MAD M7C15 IPE 140KV Drone Motor

MAD M7C15 IPE 220KV Drone Motor

MAD M7C15 IPE Drone Motor Details

The MAD M7C15 IPE Drone Motor is an energy-efficient, professional-grade brushless motor with two options: 140KV and 220KV. With a recommended maximum thrust of 15.5kgf, this motor’s performance may vary depending on battery level, propeller type, hover thrust, air pressure, and other conditions. It features 45g efficiency and an impressive 76% efficiency rate.
