MAD M7C10 V3 Drone Motor – 100KV 120KV 190KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner Motor for Endurance Flight

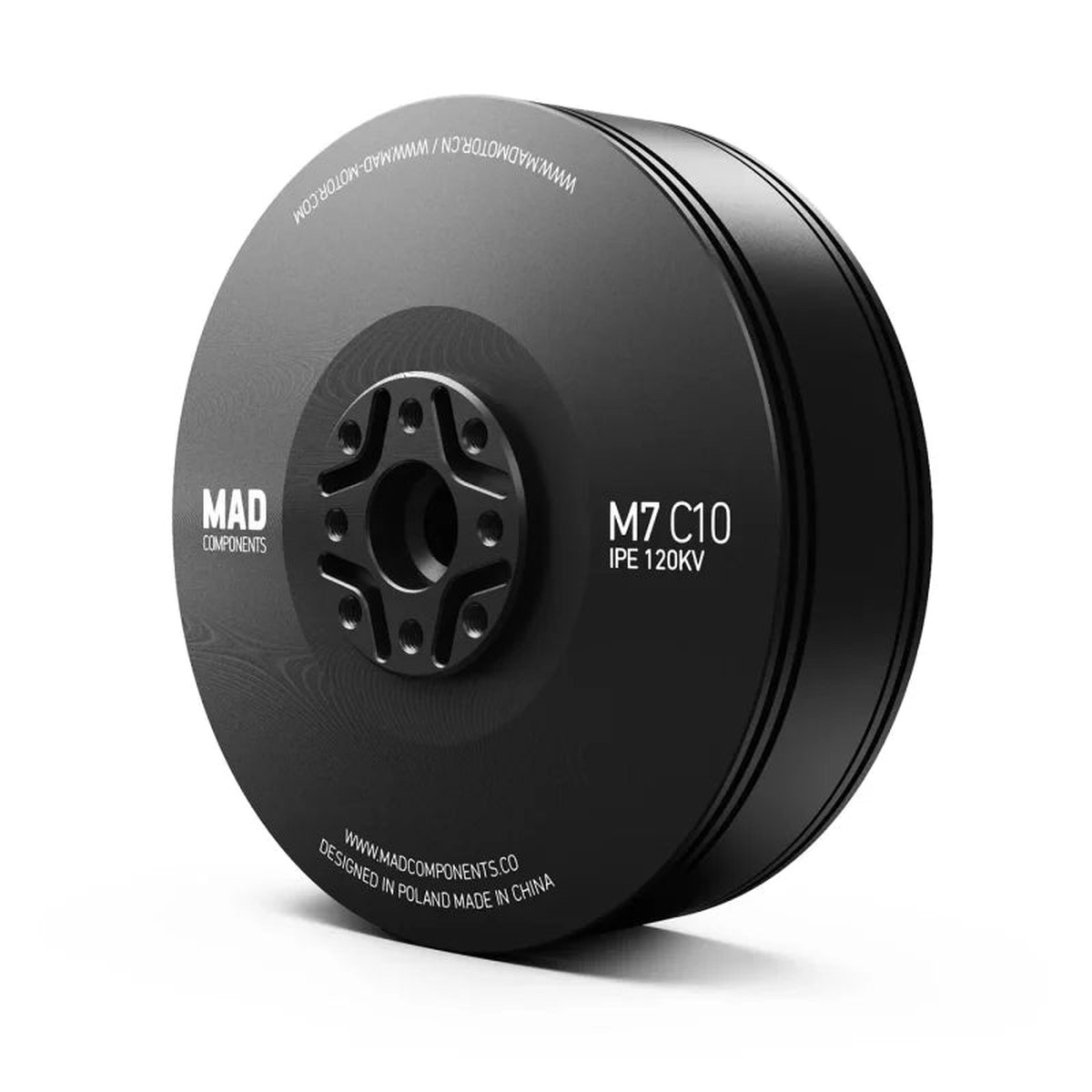

MAD M7C10 V3 Drone Motor Overview

The MAD M7C10 IPE V2.0 Drone Motor is a versatile and robust motor designed for high-performance UAV applications. Manufactured with high-quality, anticorrosive materials from Japan, this motor offers excellent durability and reliability. It features an IP45 protection rating and independent centrifugal heat dissipation, ensuring efficient operation under demanding conditions. The motor is available in three KV ratings (100 KV, 120 KV, and 190 KV), each tailored to different power needs:

• 100 KV Version:

  • Nominal Voltage: 12S lipo battery
  • Maximum Current: 25.5A
  • Maximum Power: 1205W
  • Maximum Thrust: 7.6 kg
  • Recommended Propellers: 26×7.8, 27×8.1, 28×8.4

• 120 KV Version:

  • Nominal Voltage: 12S lipo battery
  • Maximum Current: 34.8A
  • Maximum Power: 1639W
  • Maximum Thrust: 8.7 kg
  • Recommended Propellers: 26×7.8, 27×8.1, 28×8.4

• 190 KV Version:

  • Nominal Voltage: 12S lipo battery
  • Maximum Current: 36A
  • Maximum Power: 857W
  • Maximum Thrust: 5.8 kg
  • Recommended Propellers: 27×8.1, 28×8.4

The MAD M7C10 IPE V2.0 is suitable for a range of UAV types, including quadcopters, hexacopters, and octocopters, with varying take-off weights and single rotor capacities. This motor provides a reliable and efficient solution for both commercial and industrial UAV applications, ensuring optimal performance and longevity.
