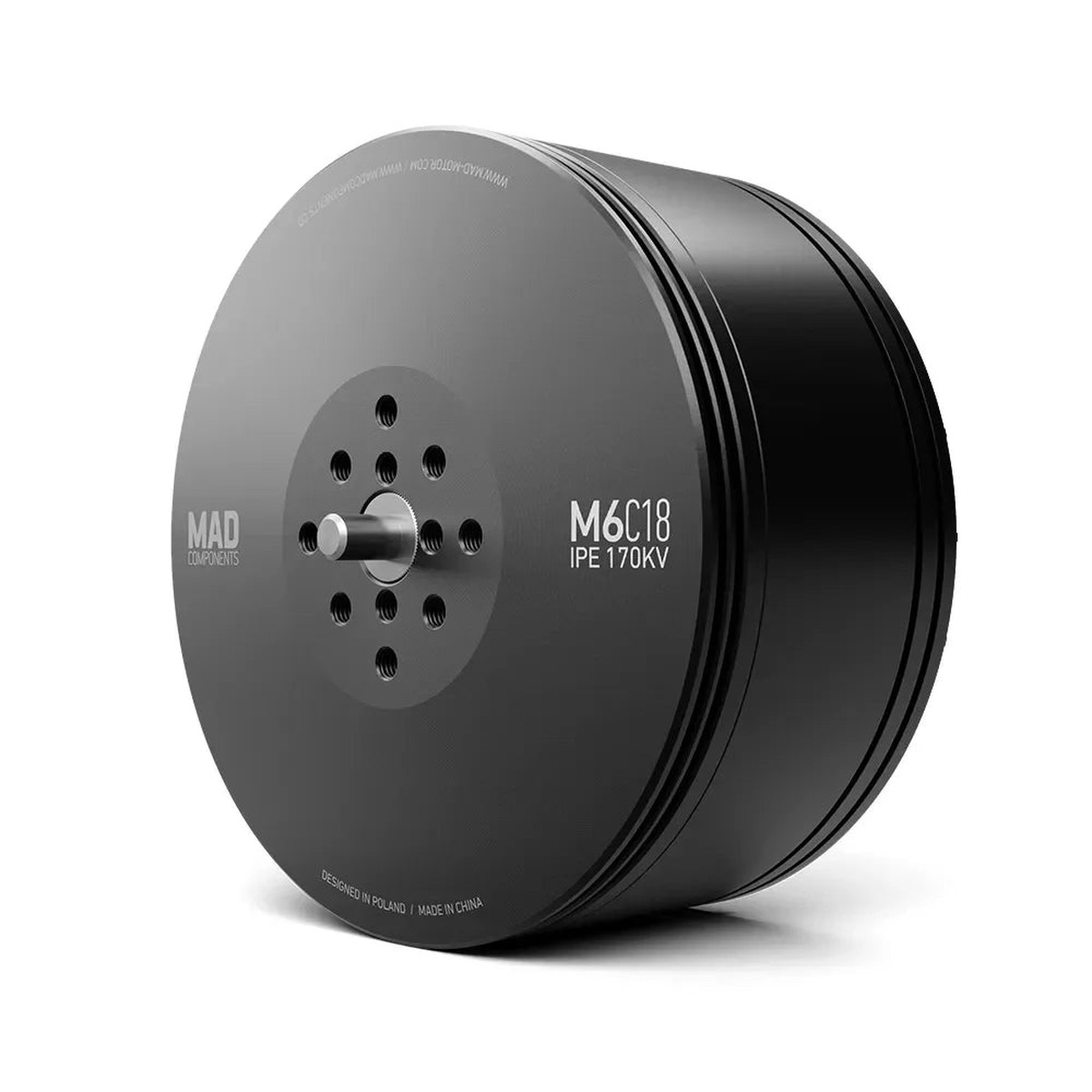

Name: MAD M6C18 IPE V3 Drone Motor - 12S 170KV 6S 330KV Brushless Motor for 13KG Quadcopter 20KG Hexacopter
SKU: WKA86610370164
Availability: InStock

Description
Reviews (0)

MAD M6C18 IPE V3 Drone Motor Overview

The MAD M6C18 IPE V3.0 is a versatile and durable drone motor designed for various UAV applications. It features an anticorrosive stator from Taiwan, high-temperature resistance (180C varnished wire and 150C magnet), and IP45 protection with centrifugal heat dissipation. The motor supports multiple propeller mounting options and maintains high rotor and motor balance. Available in 170 KV and 330 KV versions, it provides up to 3429W and 2161W of power respectively, with a maximum thrust of 13.3 kg and 9.4 kg. Suitable for quadcopters, hexacopters, and octocopters, it accommodates take-off weights up to 26 kg. Recommended ESCs include MAD AMPX 80A (5-14S) and AMPX 120A (5-14S).

MAD M6C18 IPE V3 Drone Motor Specifications

Motor Data

Parameter	Value
Motor Model	MAD M6C18 IPE V3.0
Number of Pole Pairs	14
Stator	TAIWAN / Anticorrosive
Varnished Wire Degree	180C
Motor Size	D: 72 41.4 mm
Magnet Degree	150C
Degree of Protection	IP45
Cable Length	150 mm 16# AWG (Black) silicone
Centrifugal Heat Dissipation	YES
Rotor Balance	5 mg
Propeller Mounting Holes	D: 12 M34, D: 18 M34, D: 22 M34
Motor Balance	10 mg
Shaft Diameter	IN: 6 mm
Motor Mounting Holes	D: 25 M34
Bearing	EZO 696ZZ *2
Disruptive Test	500 V
Additional Accessories	M6 Prop Adapter 1, M6 Propeller Plate 1, 4-6 Adapter Ring 1, 3.5mm Bullet Connector 3, Heat Shrinkable Tube 3, M310mm 4 Motor Screws, M36mm 4 Prop Adapter Fixing Screws, M312mm 2 Propeller Screws, Sticker1

Specifications

Parameter	170 KV	330 KV
RPM/V	170 KV	330 KV
Nominal Voltage	12S lipo battery	6S lipo battery
No Load Current	1.6A / 30V	3.4A / 20V
Internal Resistance	48m	10.5m
Motor Weight	380 g	390 g
Product Boxed Weight	539g (110 x 110 x 55 mm)	549g (110 x 110 x 55 mm)
Maximum Current	73.1 A	96.1 A
Maximum Power	3429W	2161W
Maximum Thrust	13.3 kg	9.4 kg
Maximum Torque	4.28 Nm	2.93 Nm
Recommended ESC	MAD AMPX 80A (5-14S)	MAD AMPX 80A (5-14S), AMPX 120A (5-14S)
Recommended Propellers	21×6.3, 22×6.6, 22.1×7.4, 22.2×7, 24×7.5	21×6.3, 22×6.6, 22.1×7.4
UAV Take-off Weight	6S-22/ 13kg–Quadcopter 19.5kg–Hexacopter 26kg–Octocopter	6S-22/ 11kg–Quadcopter 16.5kg–Hexacopter 22kg–Octocopter
Single Rotor Take-off Weight	4kg ~ 6kg	4kg ~ 5kg

Drawing and mount holes
