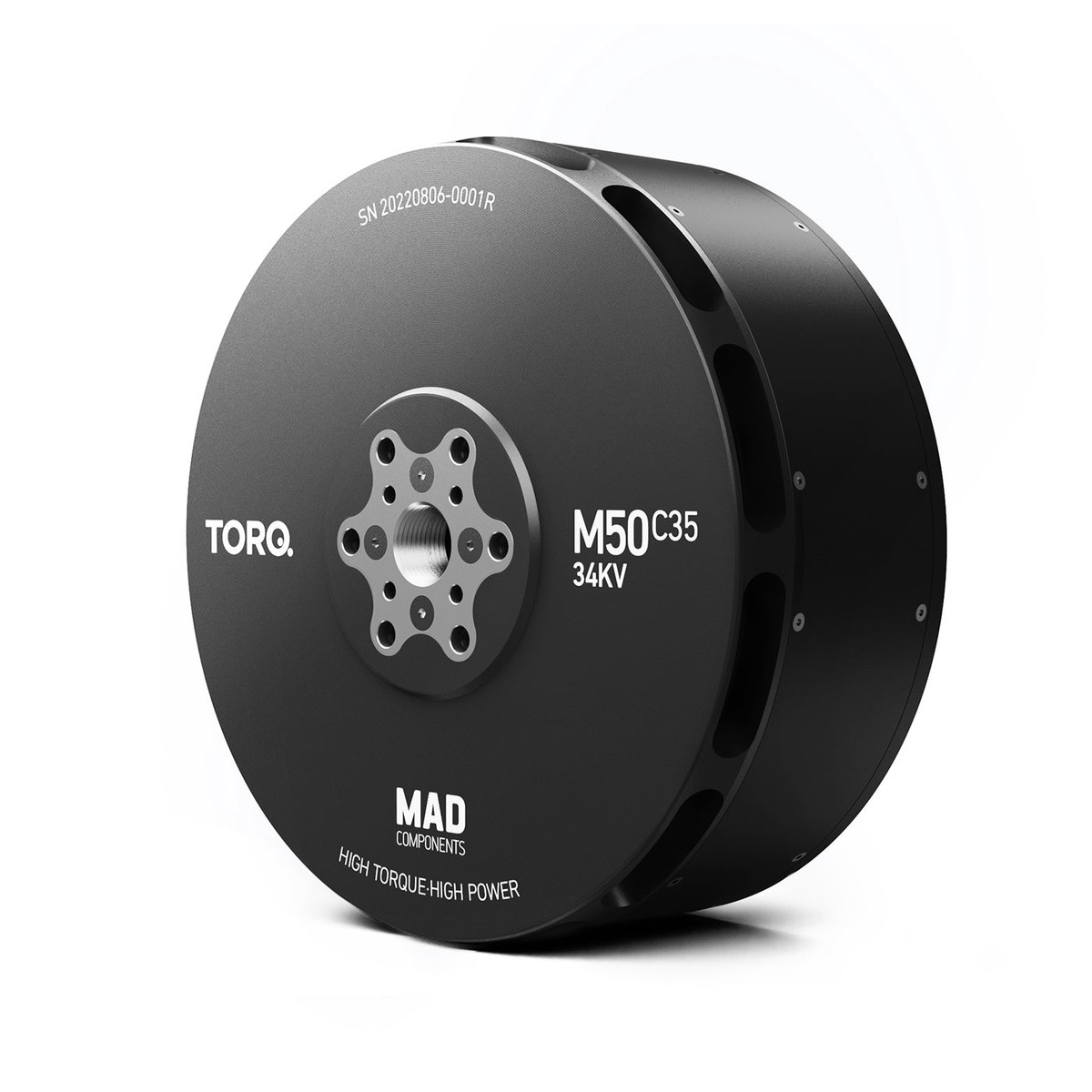

Name: MAD M50C35 PRO IPE Manned Drone Motor 9KV/34KV/40KV, IP35, 12S-24S, Max 113.7 kgf
SKU: ELAC22173209678
Availability: InStock

Description
Reviews (0)

Overview

MAD M50C35 PRO IPE is a manned drone motor designed as a high-power propulsion solution for manned drones and ultra-heavy UAV platforms, with support for 12S and 24S voltage systems.

Sustained thrust	30~45kg
Max thrust	113.7kg
Support voltage	12S,24S
Weight	4300g

Key Features

Rated thrust: 3040 kgf
Peak thrust: 92.6 kgf
Continuous output: 25 kW
Motor weight: 4360g
Supports 1224S voltage systems

For configuration validation and technical support (ESC/prop matching), contact support@ or visit https:///.

Specifications

Motor Data

Motor Model	MAD M50C35 IPE V1.0	Number of pole pairs	31
Stator	Anticorrosive	Varnished wire Degree	220C
Motor Size	D:191 94 mm	Magnet Degree	180C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires)
Centrifugal Heat Dissipation	YES	Rotor Balance	20 mg
Propeller Mounting Holes	D:50 M66	Motor Balance	30 mg
Shaft Diameter	IN: 25 mm	Motor Mounting Holes	D:80 M66
Bearing	NSK 6818ZZCM	Disruptive test	1000 V

Drawing and Mount Holes

Motor mounting holes	80-M66
Propeller mounting holes	50-M66
Motor outside diameter	191
Side-view dimension	83
Step/offset dimension	11
Boss/feature diameter	90
Shaft	25, 35
Hole pattern note	50-6.26

9KV (Industry Professional Edition)

Recommended hover thrust: 30~40 kgf
Maximum thrust: 92.6 kgf
Optimized weight: 4360 g
Efficiency: >78%
Test header: MAD M50C35 IPE 9KV + FLUXER PRO 63×22 GLOSSY + FOC IGBT 60A (80-440V)
Label: 400V, MAX 128C

RPM/V	9 KV	Nominal Voltage	100S lipo battery
No Load Current	0.92A/30V	Internal resistance	58.8m
Motor Weight	4360 g	Product Boxed Weight	5910g (330 x 265 x 135 mm)
Maximum Current	49.1 A	Maximum Power	19494W
Maximum thrust	92.6 kg	Maximum Torque	63.9 Nm
Recommended ESC	FOC IGBT 60A (80-440V)	Recommended Propellers	63×22
UAV take-off weight	24S-63″/ 140kg–Quadcopter 210kg–Hexacopter 280kg–Octocopter	Single rotor take-off weight	30kg ~ 40kg

9KV Performance Table (400V)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [kgf]	Efficiency [%]	Efficiency [gf/W]
30	398	2.74	1090.0	696.7	7.930	839	11	63.92	10.5
35	398	3.7	1472.0	1117.6	10.880	981	16	75.93	10.7
40	398	5.85	2328.0	1730.3	14.820	1115	21	74.33	8.8
45	398	8.09	3219.0	2360.2	18.090	1246	26	73.32	8.0
50	398	10.23	4071.0	3107.0	21.690	1368	31	76.32	7.7
55	398	12.7	5052.0	3993.6	25.700	1484	37	79.05	7.3
60	398	15.38	6114.0	4991.2	29.810	1599	43	81.64	7.1
65	398	18.79	7471.0	6168.2	34.590	1703	48	82.56	6.5
70	398	22.56	8968.0	7369.9	38.950	1807	56	82.18	6.2
75	398	25.18	9986.0	8364.9	42.200	1893	59	83.77	5.9
80	397	29.22	11586.0	10498.4	49.930	2008	68	90.61	5.8
85	397	34.95	13861.0	11991.3	54.480	2102	75	86.51	5.4
90	396	40.04	15868.0	13572.0	59.130	2192	81	85.53	5.1
95	397	48.14	19102.0	15072.8	63.440	2269	89	78.91	4.6
100	397	49.14	19494.0	15334.1	63.920	2291	93	78.66	4.8

34KV (Industry Professional Edition)

Recommended hover thrust: 35~45 kgf
Maximum thrust: 113.7 kgf
Optimized weight: 4365 g
Efficiency: >83%
Test header: MAD M50C35 IPE 34KV + FLUXER PRO 63×22 GLOSSY + AMPX 300A (12-24S)
Label: 24S

RPM/V	34 KV	Nominal Voltage	24S lipo battery
No Load Current	3.7A / 30V	Internal resistance	14.7m
Motor Weight	4365 g	Product Boxed Weight	5915g (330 x 265 x 135 mm)
Maximum Current	251.5 A	Maximum Power	24987W
Maximum thrust	113.7 kg	Maximum Torque	78.4 Nm
Recommended ESC	MAD AMPX 300A (12-24S)	Recommended Propellers	63×22
UAV take-off weight	24S-63″/ 160kg–Quadcopter 240kg–Hexacopter 320kg–Octocopter	Single rotor take-off weight	35kg ~ 45kg

34KV Performance Table (24S)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	100.6	10.63	1069.4	855.5	8.841	924	13360	80.00	12.5
35	100.54	15.2	1528.2	1246.2	11.259	1057	17031	81.50	11.1
40	100.78	21.82	2199.0	1775.0	14.232	1191	22773	80.70	10.4
45	100.61	30.57	3075.6	2511.5	17.858	1343	28863	81.70	9.4
50	100.46	42	4219.3	3534.7	22.608	1493	35262	83.80	8.4
55	100.58	54.55	5486.6	4706.2	27.554	1631	42642	85.80	7.8
60	100.56	68.22	6860.2	5919.3	32.374	1746	49381	86.30	7.2
65	100.52	83.9	8433.6	7198.8	36.761	1870	56551	85.40	6.7
70	100.4	102.19	10259.9	8889.7	42.723	1987	63961	86.60	6.2
75	100.27	122.51	12284.1	10566.1	48.070	2099	72525	86.00	5.9
80	100.2	147.52	14781.5	12591.8	54.532	2205	80002	85.20	5.4
85	100.08	171.25	17138.7	14472.0	59.414	2326	87814	84.40	5.1
90	99.9	203.99	20378.6	16845.9	66.584	2416	96733	82.70	4.7
95	99.58	232.09	23111.5	18677.9	71.430	2497	106740	80.80	4.6
100	99.36	251.48	24987.1	20739.3	78.409	2526	113654	83.00	4.5

40KV (Industry Professional Edition)

Recommended hover thrust: 30~40 kgf
Maximum thrust: 90.9 kgf
Optimized weight: 4337 g
Efficiency: >82%
Test header: MAD M50C35 IPE 40KV + CB2 PROP 60×20 MATT + AMPX 300A (12-24S)
Label: 24S, MAX 140C

RPM/V	40 KV	Nominal Voltage	24S lipo battery
No Load Current	3.6A/20V	Internal resistance	10m
Motor Weight	4337 g	Product Boxed Weight	5887g (330 x 265 x 135 mm)
Maximum Current	216.6 A	Maximum Power	20967W
Maximum thrust	90.9 kg	Maximum Torque	52.1 Nm
Recommended ESC	MAD AMPX 300A (12-24S)	Recommended Propellers	57×19, 60×20
UAV take-off weight	24S-60″/ 140kg–Quadcopter 210kg–Hexacopter 280kg–Octocopter	Single rotor take-off weight	30kg ~ 40kg

40KV Performance Table (CB2 PROP 57×19 MATT, 24S, MAX 130C)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	98.66	12.3	1213.5	910.8	8.091	1075	12865	75.10	10.6
35	98.68	18.03	1779.2	1361.3	10.569	1230	16662	76.50	9.4
40	98.54	25.34	2497.0	1991.0	13.688	1389	21496	79.70	8.6
45	98.53	36.78	3623.9	2921.9	17.637	1582	27746	80.60	7.7
50	98.37	49.01	4821.1	3998.3	21.830	1749	34236	82.90	7.1
55	98.3	63.68	6259.7	5276.9	26.482	1903	40549	84.30	6.5
60	98.17	77.5	7608.2	6398.5	29.851	2047	46604	84.10	6.1
65	98.17	98.03	9623.6	7949.1	34.791	2182	53790	82.60	5.6
70	98.01	118.31	11595.6	9438.8	38.938	2315	61280	81.40	5.3
75	97.92	140.81	13788.1	11195.9	43.606	2452	68220	81.20	4.9
80	97.94	164.23	16084.7	12996.4	48.407	2564	74006	80.80	4.6
85	97.83	195.21	19097.4	15201.5	54.069	2685	81462	79.60	4.3
90	98.12	229.66	22534.2	17847.1	60.871	2800	85765	79.20	3.8

40KV Performance Table (CB2 PROP 60×20 MATT, 24S, MAX 140C)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	98.47	12.4	1221.0	895.0	7.117	1201	14430	73.30	11.8
35	98.46	19.2	1890.4	1414.0	10.040	1345	18964	74.80	10.0
40	98.33	26.8	2635.2	1976.4	12.592	1499	22645	75.00	8.6
45	98.33	35.8	3520.2	2678.9	15.571	1643	27640	76.10	7.9
50	98.43	47.4	4665.6	3601.8	19.270	1785	33945	77.20	7.3
55	98.35	59.8	5881.3	4593.3	23.075	1901	39362	78.10	6.7
60	98.26	73.1	7182.8	5753.4	31.419	2024	45693	80.10	6.4
65	98.43	86.5	8514.2	6777.3	32.284	2123	51637	79.60	6.1
70	98.42	100.8	9920.7	7847.3	33.471	2239	56700	79.10	5.7
75	98.49	118.4	11661.2	9200.7	37.012	2374	62129	78.90	5.3
80	98.47	131	12899.6	10100.4	39.211	2460	67134	78.30	5.2
85	98.37	148.6	14617.8	11416.5	42.112	2589	72374	78.10	5.0
90	96.56	169.7	16386.2	12699.3	44.935	2699	78315	77.50	4.8
95	97.35	193	18788.6	14523.5	48.976	2832	86016	77.30	4.6
100	96.8	216.6	20966.9	16102.6	52.129	2950	90890	76.80	4.3

Recommended Configurations

34KV Recommend ESC: AMPX 300A (12-24S); propeller: CB2 prop 63X22″ inch carbon fiber propeller.
40KV Recommend ESC: AMPX 300A (12-24S); propeller: CB2 57X19. Alternative: AMPX 200A (12-24S) with propeller: fluxer pro 60X20.
59KV Recommend FOC combo: HB40-63X22 drone arm set; HB40-64×20 drone arm set; HB40-60X19 drone arm set; HB40-57X19 drone arm set.

Whats Included

Motor x1
Propeller Plate x1
Locate Pin x1
8.0mm Bullet Connector x3
Heat Shrinkable Tube x3
M6*25 Motor Screws x6
M6*45 Prop Adapter Screws x6
M6*60 Propeller Screws x6
Sticker x2

Applications

Manned drone propulsion systems
eVTOL aircraft, cargo UAVs, and electric paramotor platforms
Projects requiring validated ESC + prop combinations for high thrust configurations

Details

MAD M50C35 PRO IPE motor drawings show the overall dimensions and mounting hole layout to help plan fitment and installation.

The MAD M50C35 PRO IPE motor package includes a propeller plate, locate pin, 8.0mm bullet connectors, heat-shrink tubing, mounting screws, and stickers for installation.

MAD M50C35 motor performance data includes a 9kW rating at 400V, with thrust and efficiency figures and a detailed specification table.

The MAD M50C35 motor spec sheet lists a 24S setup with efficiency and thrust data, including up to 113.7 kgf max thrust.

The M50C35 40KV drone motor spec sheet lists key figures like 3040 kgf range, 433.7 g weight, and up to 82% efficiency along with performance curves and tables.
