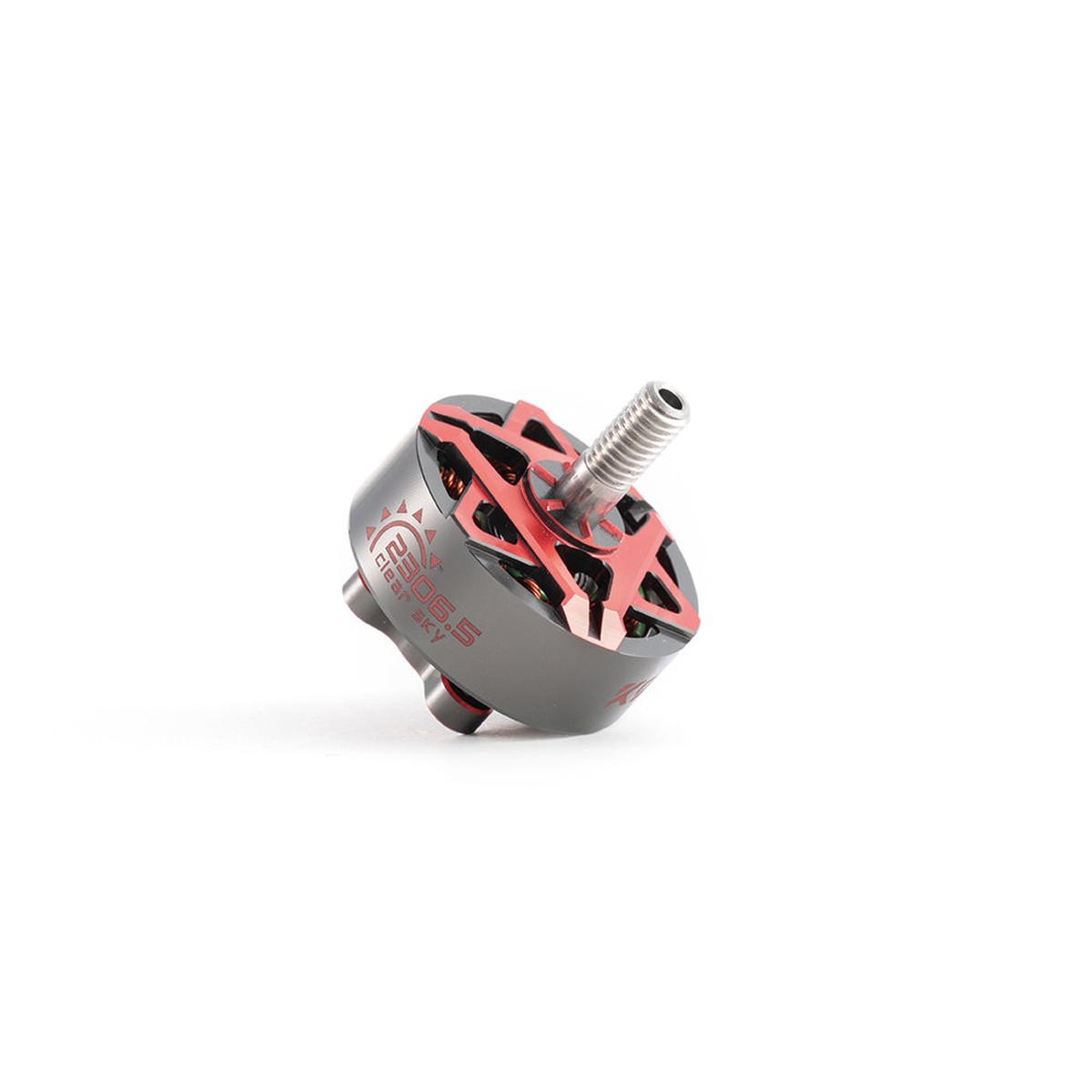

MAD KONKER Clear Sky 2306.5 FPV Motor 1960KV, 4mm M5 Shaft, 12N14P, OFSC Copper, N52 Magnets

Overview

MAD KONKER Clear Sky 2306.5 FPV motor 1960KV is a 12N14P brushless motor designed for 5-inch FPV setups, with M5 propeller mounting and a 150 mm silicone lead.

Key Features

• Dazzling color options: Blue / Orange / Red
• OFSC copper wire
• N52 arc-shaped magnet segment (manufacturer states: burst power 15% over flat magnets)
• Titanium alloy shaft with hexagonal reinforcing ribs (manufacturer states: 30% stronger versus standard steel; 45% lighter than aluminum)
• Dual motor specifications concept: Precision-Tailored Profiles, Adaptive Mode Switching, Dual Personality

Specifications

Clear Sky 2306.5 (V1.0)

Motor Data (Clear Sky series)

2306.5 Dimension Marks (from drawing)

• Overall length marking: 31.8
• Step/offset marking: 13.1
• Mounting circle marking: 16-M3X4
• Diameter marking: 29.3
• Prop shaft marking: M5
• Cable length marking: 150 mm
• Additional marking: 3

Test Data (6S)

Clear Sky 2306.5 V1.0 1960KV Prop: HQJ40

Clear Sky 2306.5 V1.0 1960KV Prop: GF 51466-3

Whats Included

• M5 Nut 1
• M38mm Pan head motor screws 4
• M310mm Pan head motor screws 4
• M34mm Pan head motor screws 1
• Gasket 1
• O-Ring 1
• Sticker 2

For compatibility questions (prop/nut size, mounting screws, and 6S setup guidance), contact [email protected] or visit https://rcdrone.top/.

Details

MAD KONKER Clear Sky FPV motors come in multiple color options to match your build while keeping a compact brushless motor design.

The MAD KONKER Clear Sky 2306.5 FPV motor is offered in orange, red, and blue color options to match your build style.

Dual motor specifications with adaptive mode switching and precision-tailored profiles support use across varied riding conditions.

The MAD KONKER Clear Sky 2306.5 FPV motor features an OFSC copper wire build for consistent power delivery.

The Clear Sky 2306.5 motor uses N52 arc-shaped magnet segments, with a callout noting 15% burst power over flat magnets.

The Clear Sky 2306.5 motor uses a titanium alloy shaft with hexagonal reinforcing ribs, with the spec sheet noting 30% stronger than standard steel and 45% lighter than aluminum.

The MAD KONKER Clear Sky 2306.5 FPV motor comes with a KONKER box, mounting screws, a gasket, O-rings, and stickers for setup.

MAD KONKER Clear Sky 2306.5 FPV motor specs list a 29.331.8 mm body, M5 prop mounting, 4 mm shaft, and 150 mm 20# AWG silicone leads for 5-inch FPV builds.

MAD KONKER Clear Sky 2207.5 motor specs list 1960KV or 2100KV options with 34g weight and a 150mm lead for easier mounting and wiring.

Clear Sky 2207.5 V1.0 motor test results list voltage, current, RPM, thrust, and efficiency across throttle levels for 1960KV and 2200KV options.

The 2306.5 motor is listed in 1860KV and 1960KV options with up to 43.1A max current, 1.77kg thrust, and 1011W power.

Clear Sky 2306.5 V1.0 motor specs include a 1505mm cable length and 6S performance tables for 1850KV and 1960KV options.
