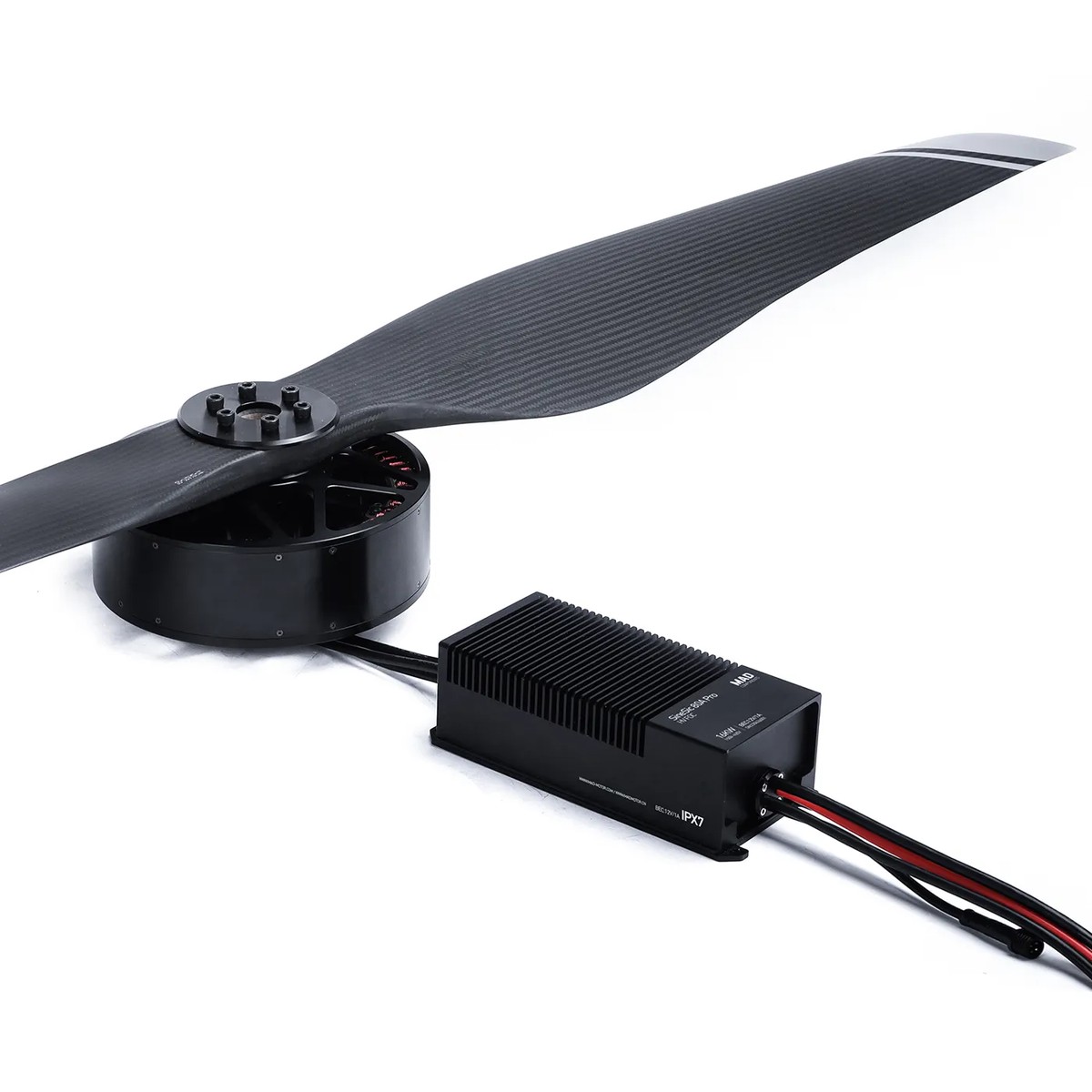

Name: MAD Hummingbird HB40 Drone Power Combo 64x20 - M50C35 EEE V2.0 Motor + SineSic Pro 80A ESC
SKU: ELAC22173209486
Availability: InStock

Description
Reviews (0)

Overview

The MAD Hummingbird HB40 is a drone power combo integrating a motor, FOC ESC, and propeller for high-capacity multi-rotor and e-VTOL applications. Each rotor supports a recommended continuous thrust of 40 kg, with motor maximum power up to 19136 W and maximum thrust up to 95.3 kg. Recommended operating voltage range is 100-600V.

Key Features

Integrated propulsion combo: motor + ESC + propeller
Designed for high-capacity multi-rotor / e-VTOL platforms and heavy payload lifting drones
High-quality aviation-grade aluminum construction
Japanese bearing for stable rotation and anti-fall properties
High-performance curved magnets; rated for elevated temperature operation (performance increase by 5%)
ESC protection level: IP67

Specifications

Motor Data (MAD M50C35 EEE V2.0)

RPM/V	9 KV
Motor Size	D:191 x 94 mm
Internal resistance	174.5 m
No Load Current	0.92A / 30V
Motor Weight	4200 g
Nominal Voltage	354V~400V
Cable Length	150 mm (extended Enameled wires)
Maximum Current	53.2 A
Maximum Power	19136 W
Maximum thrust	95.3 kg
Recommended Continue thrust	40 kg
Shaft Diameter	IN: 25 mm
Stator	TAIWAN / Anticorrosive
Mounting patterns	80-M6x6; 50-M6x6; 32-M4x4; 50-6.2×6

ESC Data (SineSic Pro 80A 16KW (150V~435V))

Size (LWH)	197.088.059.5 mm
Weight	1400 g
Protection Level	IP67
Continuous Current	80A (under good cooling)
Instant Current	150A (under good cooling)
Recommended Battery	96~100S LiPo
PWM Input Signal Voltage	3.3V/5V
Cable Length (Input)	690 mm (10AWG Silicone Flexible Wire)
Cable Length (output)	600 mm (10AWG Silicone Flexible Wire)
Cable Length (Signal)	1250 mm (9-Core PVC Flexible Wire)
Cable Length (LED wire)	155 mm (4-Core PVC Flexible Wire with Waterproof Connector)
Wiring / connectors	Output U/V/W; Red V+; Black V-; PWM input (GND Black, PWM input White); 12V/1A Output (Red); CAN1/CAN2 harness

Propellers Data (CB2 64X20 MATT)

Size	64×20 (1625.6 x 508mm)
Material	High quality carbon fiber + Resin
Type	fixed
Single Weight	885 g
Propeller mounting hole	50mm; 25mm; M6

Test Data

Analytical graph data was measured at an input voltage of 400 V, at a temperature of 25C and sea level. Test tables below are provided for 354 V and 400 V.

354V

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	353.71	2.78	983.3	792.1	7.774	973	12111	80.6	12.3
35	353.71	4.49	1588.2	1326.2	11.307	1120	17875	83.5	11.3
40	353.71	6.19	2189.5	1880.2	14.082	1275	22172	85.9	10.1
45	353.73	8.95	3165.9	2770.6	18.632	1420	29165	87.5	9.2
50	353.7	11.21	3965.9	3469.9	21.405	1548	34221	87.5	8.6
55	353.66	14.67	5188.2	4587.0	26.073	1680	40026	88.4	7.7
60	353.71	18.3	6472.9	5773.9	30.496	1808	47330	89.2	7.3
65	353.7	22.14	7830.9	6972.4	34.678	1920	53635	89	6.8
70	353.67	26.25	9283.8	8291.1	38.811	2040	60524	89.3	6.5
75	353.65	30.6	10821.7	9602.9	42.851	2140	65769	88.7	6.1
80	353.58	35.85	12675.8	11296.1	47.730	2260	73533	89.1	5.8
85	353.59	40.99	14493.7	12807.8	52.067	2349	80450	88.4	5.6
90	353.61	47.39	16757.6	14826.2	57.623	2457	88258	88.5	5.3
95	353.56	52.52	18569.0	16199.6	61.656	2509	94465	87.2	5.1
100	353.54	52.29	18486.6	16120.0	61.402	2507	92769	87.2	5.0

400V

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [Nxm]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	399.41	2.53	1010.5	774.3	7.791	949	12460	76.6	12.3
35	399.43	4.03	1609.7	1335.1	11.223	1136	17548	82.9	10.9
40	399.42	5.56	2220.8	1846.2	13.937	1265	22163	83.1	10.0
45	399.43	7.75	3095.6	2637.0	17.834	1412	27725	85.2	9.0
50	399.45	10.12	4042.4	3470.2	21.532	1539	33120	85.8	8.2
55	399.4	12.89	5148.3	4468.7	25.461	1676	39068	86.8	7.6
60	399.4	16.02	6398.4	5591.6	29.681	1799	45312	87.4	7.1
65	399.38	19.83	7919.7	6951.5	34.466	1926	51759	87.8	6.5
70	399.39	23.46	9369.7	8194.1	38.432	2036	58390	87.5	6.2
75	399.39	27.22	10871.4	9597.9	42.373	2163	64031	88.3	5.9
80	399.35	31.79	12695.3	11168.1	47.189	2260	71722	88.0	5.6
85	399.33	37.28	14887.0	13035.8	52.949	2351	80688	87.6	5.4
90	399.32	41.96	16755.5	14677.2	57.067	2456	86640	87.6	5.2
95	399.31	47.01	18771.6	16201.2	61.785	2504	92543	86.3	4.9
100	399.29	47.92	19134.0	16489.3	62.909	2503	95320	86.2	5.0

Whats Included

Hummingbird HB40 power combo: MAD M50C35 EEE V2.0 motor + SineSic Pro 80A 16KW (150V~435V) ESC + CB2 64×20 MATT propeller

For compatibility checks (battery voltage, connectors, wiring) and support, contact support@ or visit https:///.

Details

The Hummingbird HB40 power combo pairs a MAD motor with a 64×20 prop and matching ESC for a complete drivetrain setup.

MAD Hummingbird HB40 power combo drawings list motor and ESC dimensions to help confirm fitment in a 64×20 build.

MAD Hummingbird HB40 power combo documentation includes ESC wire sequence details, propeller mounting dimensions, and performance test data at 354V and 400V.
