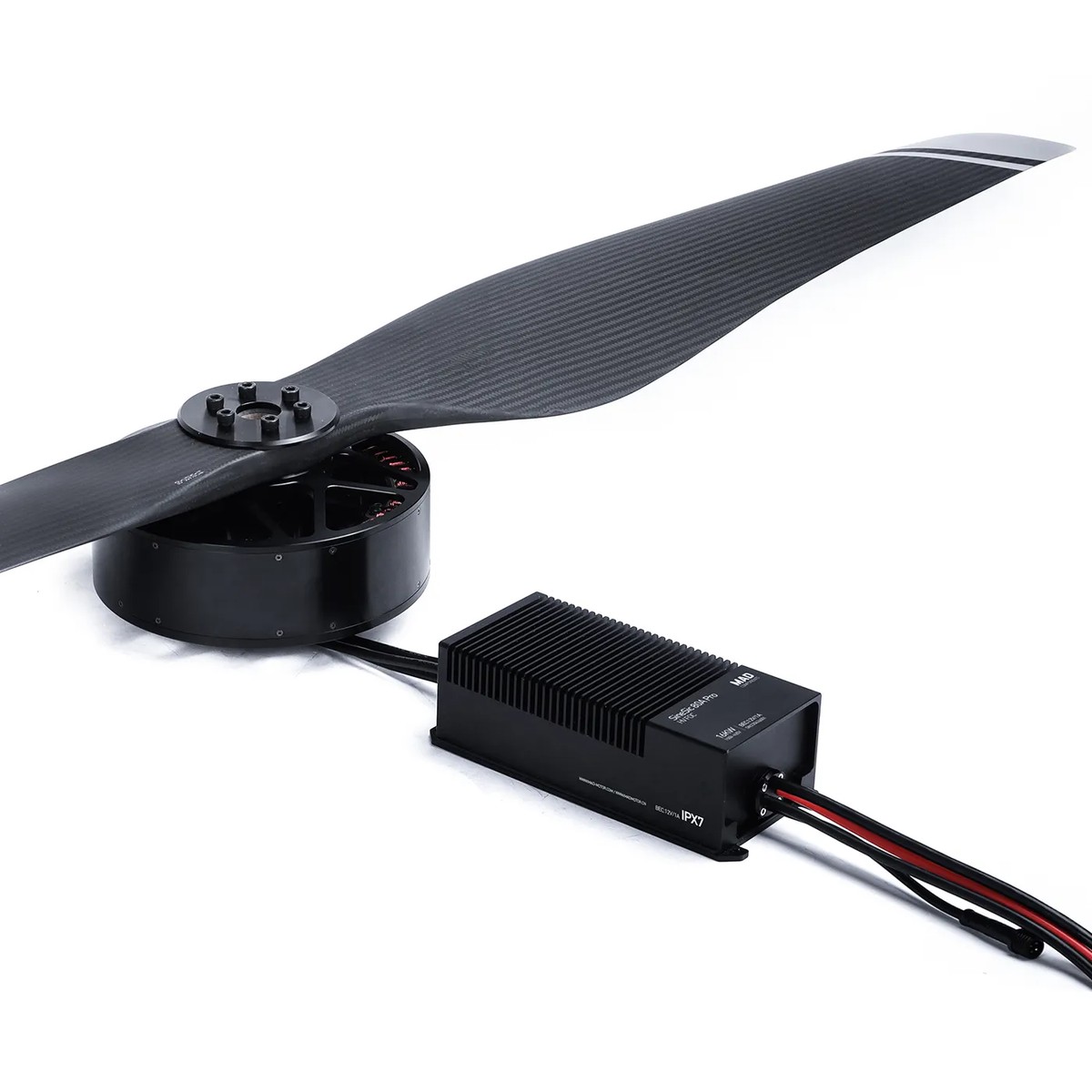

MAD Hummingbird HB40-57X19 Drone Power Combo: M50C35 EEE V2.0 + SineSic Pro 80A 16KW + CB2 57×19

MAD Hummingbird HB40-57X19 Drone Power Combo: M50C35 EEE V2.0 + SineSic Pro 80A 16KW + CB2 57×19

MAD Hummingbird HB40-57X19 Drone Power Combo: M50C35 EEE V2.0 + SineSic Pro 80A 16KW + CB2 57×19

Original price was: $447.00.Current price is: $134.10.
  • SKU:ELAC22173209487
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

MAD Hummingbird HB40-57X19 is a drone power combo (integrated motor + ESC + propeller) designed for high-capacity multi-rotor and e-VTOL applications. The drone arm set (motor, ESC, propeller) is not sold separately; it is an integrated combo with the FOC ESC included. Each rotor provides a continuous thrust of 40 kg (88.1BL) and has a maximum power output of 19 KW (equivalent to 25 hp), intended for large drones carrying heavy loads, flying car, delivery drone, and urban mobility platforms.

Key Features

  • Great weight-to-power ratio for high-capacity multi-rotor and e-VTOL applications; suitable for heavy payload lifting drones.
  • Recommended operating voltage range: 100-600V.
  • Propulsion system unit (motor/ESC/propeller) engineered for compatibility in large-scale aircraft with optimal power.
  • Aviation-grade aluminum construction (stated) to enhance safety and durability.
  • Stable rotation and anti-fall properties (stated) with Japanese bearing.
  • High-performance curved magnets and resistance to elevated temperatures (stated), with a performance increase by 5%.

Specifications

Motor Data

Motor Model MAD M50C35 EEE V2.0
RPM/V 9 KV
Motor Size D:191 x 94 mm
Internal resistance 174.5 m
No Load Current 0.92A / 30V
Motor Weight 4200 g
Recommended Continue thrust 40 kg
Nominal Voltage 354V~400V
Cable Length 150 mm (extended Enameled wires)
Maximum Current 55.5 A
Maximum Power 19770 W
Maximum thrust 90.6 kg
Shaft Diameter IN: 25 mm
Stator TAIWAN / Anticorrosive

ESC Data

ESC Model SineSic Pro 80A 16KW (150V~435V)
Size (L*W*H) 197.0*88.0*59.5 mm
Protection Level IP67
Recommended Battery 96~100S LiPo
Cable Length(input) 690 mm (10AWG Silicone Flexible Wire)
Cable Length(output) 600 mm (10AWG Silicone Flexible Wire)
Weight 1400g
Continuous Current 80A (under good cooling )
Instant Current 150A (under good cooling )
PWM Input Signal Voltage 3.3V/5V
Cable Length(Signal) 1250 mm (9-Core PVC Flexible Wire)
Cable Length(LED wire) 155 mm (4-Core PVC Flexible Wire with Waterproof Connector)

Propellers Data

Propellers Model CB2 57X19 MATT (1447.8 x 482.6mm)
Material High quality carbon fiber + Resin
Single Weight 790 g
Type fixed

Analytical Graph Notes (stated)

  • Graph header: Hummingbird HB40 / CB2 PROP 60×19 MATT / SineSic Pro 80A 16KW (150V~435V) / 400V
  • Definitions: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed
  • Measurement conditions (stated): input voltage 400 V, temperature 25C, sea level; rotational speed adjusted by throttle.

Product Drawing (dimensions and hole patterns as labeled)

  • Motor labeled dimensions/features: 191, 90, 83, 11, 80-M6X6, 50-M6X6, 32-M4X4, 25, 35, 50-6.2X6
  • ESC labeled dimensions/features: 59.5, 88, 65, 179, 174, 197, 4.3, M3 T14
  • Propeller mounting hole labeled: 50mm, 25mm, M6

ESC Line Sequence Definition (labels)

  • Motor outputs: Output U, Output V, Output W
  • Power input: Red V+, Black V-
  • Blade positioning / Temperature monitoring
  • Connect light board: GND (Black), Green LED (White), Red LED (Red)
  • PWM input: GND (Black), PWM in (White)
  • Signal: GND (Blue), CAN1H (Green), CAN1L (Yellow), CAN2H (Pink), CAN2L (Orange)
  • 12V/1A Output: Red

Test Data (Hummingbird HB40 / CB2 PROP 57×19 MATT / SineSic Pro 80A 16KW (150V~435V))

354V

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 353.67 3.16 1117.6 864.9 7.447 1109 12063 77.4 10.8
35 353.69 4.79 1694.2 1378.4 10.164 1295 16706 81.4 9.9
40 353.69 7.01 2479.4 2084.5 13.523 1472 22033 84.1 8.9
45 353.73 9.81 3470.1 2986.9 17.445 1635 28056 86.1 8.1
50 353.68 12.61 4459.9 3917.9 20.659 1811 33513 87.8 7.5
55 353.67 15.8 5588.0 4911.4 24.064 1949 39151 87.9 7.0
60 353.7 19.98 7066.9 6238.7 28.437 2095 45591 88.3 6.5
65 353.68 24.21 8562.6 7538.4 32.470 2217 51882 88 6.1
70 353.61 28.33 10017.8 8893.2 36.061 2355 57466 88.8 5.7
75 353.62 34.57 12224.6 10841.6 41.729 2481 66092 88.7 5.4
80 353.6 38.65 13666.6 12158.5 44.332 2619 71351 89 5.2
85 353.6 45.31 16021.6 14263.6 49.729 2739 78803 89 4.9
90 353.53 52.65 18613.4 16391.3 55.134 2839 86573 88.1 4.7
95 353.57 56.61 20015.6 17440.1 57.270 2908 90082 87.1 4.5
100 353.56 55.46 19608.4 17101.2 56.585 2886 89686 87.2 4.6

400V

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 399.41 2.82 1126.3 844.5 7.259 1111 12034 75 10.7
35 399.44 4.34 1733.6 1385.3 10.176 1300 16983 79.9 9.8
40 399.41 6.22 2484.3 2050.5 13.230 1480 21296 82.5 8.6
45 399.4 8.63 3446.8 2938.4 16.975 1653 27713 85.3 8.0
50 399.41 11.27 4501.4 3884.7 20.609 1800 33574 86.3 7.5
55 399.35 14.47 5778.6 5044.1 24.676 1952 40641 87.3 7.0
60 399.36 17.57 7016.8 6177.5 28.051 2103 45483 88 6.5
65 399.36 21.61 8630.2 7636.1 32.452 2247 53044 88.5 6.1
70 399.41 25.65 10244.9 8990.4 36.378 2360 59625 87.8 5.8
75 399.41 30.69 12257.9 10849.4 41.558 2493 67324 88.5 5.5
80 399.36 35.54 14193.3 12529.2 45.771 2614 73653 88.3 5.2
85 399.29 40.81 16295.0 14370.3 50.303 2728 81161 88.2 5.0
90 399.32 46.8 18688.2 16290.2 55.163 2820 87958 87.2 4.7
95 399.31 50.38 20117.2 17512.3 57.487 2909 92089 87.1 4.6
100 399.31 49.51 19769.8 17263.0 56.591 2913 90649 87.3 4.6

Whats Included

  • M50C35 EEE motor (MAD M50C35 EEE V2.0, 9 KV)
  • SineSic Pro 80A ESC (16KW, 150V~435V)
  • CB2 57×19 propeller (CB2 57X19 MATT, carbon fiber + resin)

Applications

  • Large multi-rotor drones for heavy payload lifting
  • e-VTOL platforms
  • Urban mobility and delivery drone platforms

For compatibility checks (battery voltage, wiring, and signal connections) and order support, contact support@ or visit https:///.

Details

The Hummingbird HB40 power combo pairs a motor with a 2-blade prop and an ESC module, with a spec chart for setup and tuning reference.

Motor and ESC dimension diagrams with key specs help confirm fitment and mounting space in your drone build.

The HB40-57×19 combo documentation includes ESC line sequence wiring, propeller mounting dimensions, and performance test tables for setup reference.
