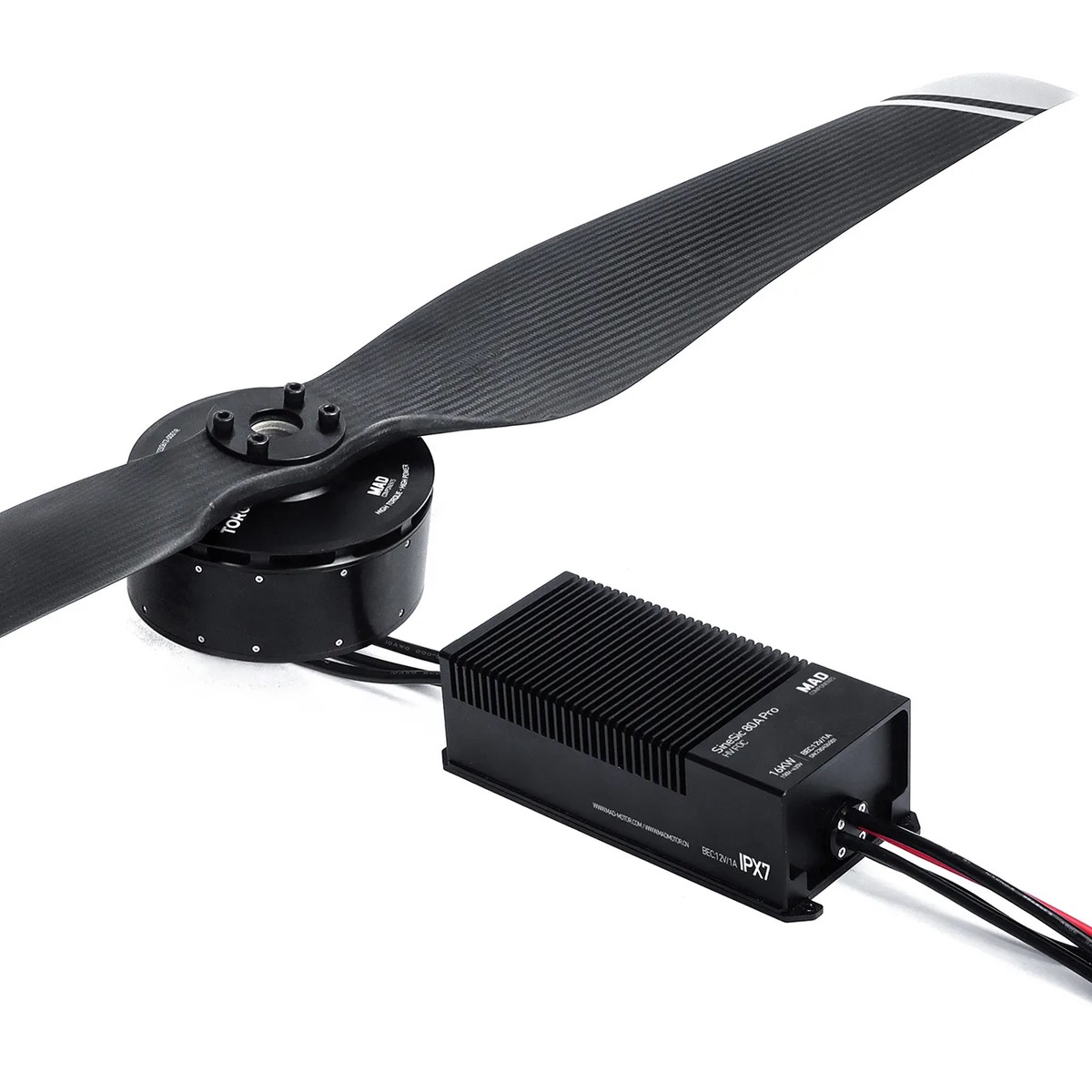

MAD Hummingbird HB30 Drone Power Combo: M40C30 IPE V3.0 10KV + SineSic Pro 80A 16KW + CB2 52×19

Overview

MAD Hummingbird HB30 is a drone power combo integrating motor, FOC ESC, and propeller as one matched propulsion set for large multi-rotor/e-VTOL platforms. Each rotor supports a recommended continuous thrust of 30 kg and a maximum power output of 18 kW (equivalent to 24 horsepower). The combo includes: MAD M40C30 IPE motor, SineSic Pro 80A ESC, and CB2 52×19 in propeller.

Key Features

• Designed for high-capacity multi-rotor and e-VTOL applications; suitable for heavy payload lifting drones.
• Recommended operating voltage range: 100-600 V.
• Integrated propulsion unit with matched motor, ESC, and propeller for large-scale aircraft power needs.
• Aviation-grade aluminum construction for improved durability.
• Stable rotation and anti-fall properties (Japanese bearing).
• Curved magnets with elevated temperature resistance; stated performance increase: 5%.

For pre-sales fitment checks (battery, voltage, wiring, and integration), contact [email protected].

Specifications

Combo Configuration

• System name: Hummingbird HB30
• Motor: M40C30 IPE
• ESC: SineSic Pro 80A
• Propeller: CB2 52×19 in

Motor Data

ESC Data

Propellers Data

Whats Included

• MAD M40C30 IPE V3.0 motor (10 KV)
• SineSic Pro 80A 16KW ESC (150V~435V)
• CB2 52×19 in propeller (MATT)

Drawings & Wiring (Extracted)

Motor Dimension Markings

• D: 151.4 mm
• 81 mm
• 90 mm
• 65-M6X6
• 50-M6X6
• 32-M4X4
• 50-6.1X6
• 25 mm
• 22 mm

ESC Dimension Markings

• 59.5 mm
• 88 mm (with internal markings 67 mm and 58 mm)
• 65 mm
• 179 mm
• 189.6 mm
• 197 mm
• 174 mm
• 4.3
• M3 Y14

ESC Line Sequence Definition (Labels)

• Motor outputs: Output U, Output V, Output W
• Battery input: Red V+, Black V-
• Blade positioning / Temperature monitoring (connector shown)
• Connect light board (connector shown): GND (Black), Green LED (White), Red LED (Red)
• PWM input (connector shown): PWM (White), GND (Black)
• Signal harness (connector shown): GND (Blue), CAN1L (Green), CAN1H (Yellow), GND (Black), CAN2L (Teal), CAN2H (Orange)
• 12V/1A Output (Red)

Propeller Mounting Hole Markings

• 50 mm
• 25 mm
• M6

Analytical Graph Notes (Extracted)

Analytical Graph of Motor Operation definitions: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed. Measurement note: data measured at an input voltage of 400 V, at a temperature of 25C and sea level; rotational speed adjusted by throttle.

Test Data (Extracted)

354V

400V

Applications

• Large multi-rotor drones and e-VTOL propulsion
• Heavy-load aerial platforms
• Delivery drone and urban mobility platforms
• Flying car propulsion use-cases (platform-dependent)

Details

The Hummingbird HB30 combo pairs an M40C30 IPE 10KV motor with a finned SineSic Pro 80A ESC and CB2 52×19 prop for a matched power setup.

Dimensional drawings and key ESC specs help confirm fit and wiring clearance for the HB30 motor and SineSic Pro 80A ESC during builds.

The HB30 combo documentation includes a wiring layout, propeller mounting dimensions, and thrust test data to help with setup and tuning.
