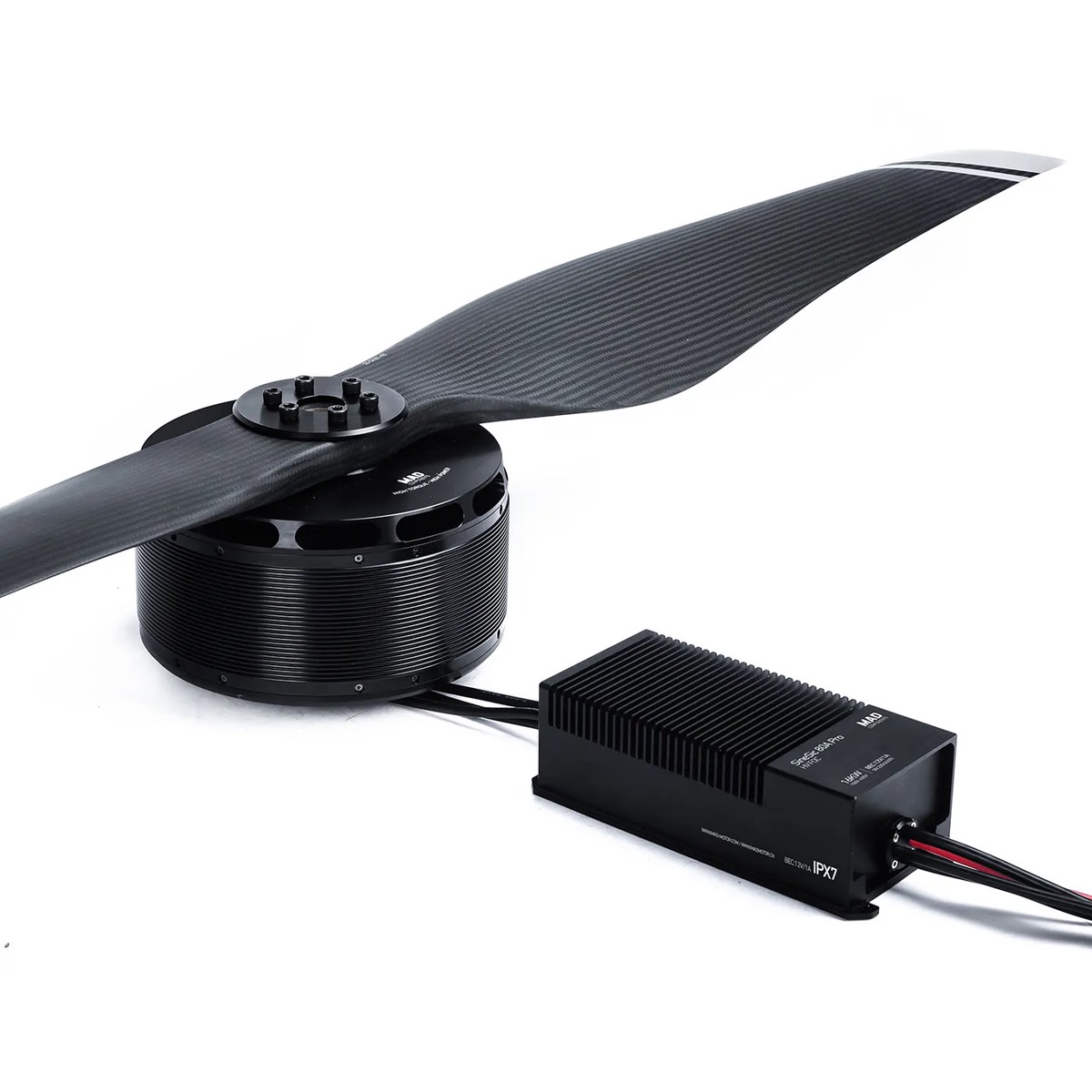

MAD HB60-64X20 Drone Power Combo (Hummingbird) M50C60 IPE KV10 Motor + SineSic Pro 80A 16KW ESC + CB2 64×20

Overview

The MAD HB60-64X20 Drone Power Combo (Hummingbird HB60) is an integrated propulsion set combining motor, FOC ESC, and propeller for high-capacity multi-rotor and e-VTOL platforms. The combo is designed to provide a recommended continuous thrust of 60 kg and supports a maximum power value of 24637 W (24 kW class). Recommended operating voltage range: 100-600V.

Key Features

• Great weight-to-power ratio, designed for high-capacity multi-rotor and e-VTOL applications for heavy payload lifting.
• Integrated propulsion system unit with motor, ESC, and propeller for large-scale aircraft with optimal power.
• Aviation-grade aluminum construction for durability.
• Japanese bearing for stable rotation and anti-fall properties.
• High-performance curved magnets designed to resist elevated temperatures (noted performance increase by 5%).

For integration and compatibility questions (battery, wiring, mounting), contact https://rcdrone.top/ or [email protected].

Specifications

Combo Configuration

• Motor: MAD M50C60 IPE (KV10)
• ESC: SineSic Pro 80A 16KW (150V~435V)
• Propeller: CB2 64×20 inch (MATT)

Motor Data

ESC Data

Propellers Data

Analytical Graph of Motor Operation (400V)

I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed. Data measured at input voltage 400 V, temperature 25C, sea level; rotational speed adjusted by throttle.

Dimensions & Interfaces

Motor Dimension (as labeled)

• 120.5
• 11
• 194
• 196
• 70
• 25; 35
• 50-M6X6
• 80-M6X6
• 50-6.2X6

ESC Dimension (as labeled)

• 59.5; 88; 65
• 67; 58
• 179; 189; 197
• 174
• 4.3
• M3*14
• 3

ESC Line Sequence Definition (as labeled)

• Outputs: Output U, Output V, Output W
• Power input: Red V+, Black V-
• Blade positioning / Temperature monitoring
• Connect light board: GND (Black), Green LED (White), Red LED (Red)
• PWM input: GND (Black), PWM input (White)
• CAN wiring: CAN1 (Blue), CAN1H (Green), CAN1L (Yellow), CAN2H (Purple), CAN2L (Orange)
• 12V/1A Output (Red)

Propeller Mounting Hole (as labeled)

• 50mm
• M6
• 25mm

Test Data

354V Test Data

400V Test Data

Whats Included

• MAD M50C60 IPE motor (MAD M50C60 IPE V1.0)
• SineSic Pro 80A FOC ESC (SineSic Pro 80A 16KW, 150V~435V)
• CB2 64×20 inch carbon fiber propeller (CB2 64X20 MATT)

Applications

• Large multi-rotor heavy-lift drones
• e-VTOL aircraft
• Delivery drones and urban mobility platforms

Details

The MAD Hummingbird HB60-64×20 power combo pairs an M50C60 KV10 motor with a SineSic Pro 80A 16kW ESC and a CB2 64×20 prop for streamlined drivetrain setup.

Motor and ESC dimension drawings provide key measurements to help plan mounting and wiring in a drone build.

The included wiring layout and CB2 64×20 propeller dimension drawing help confirm connections and mounting during installation.
