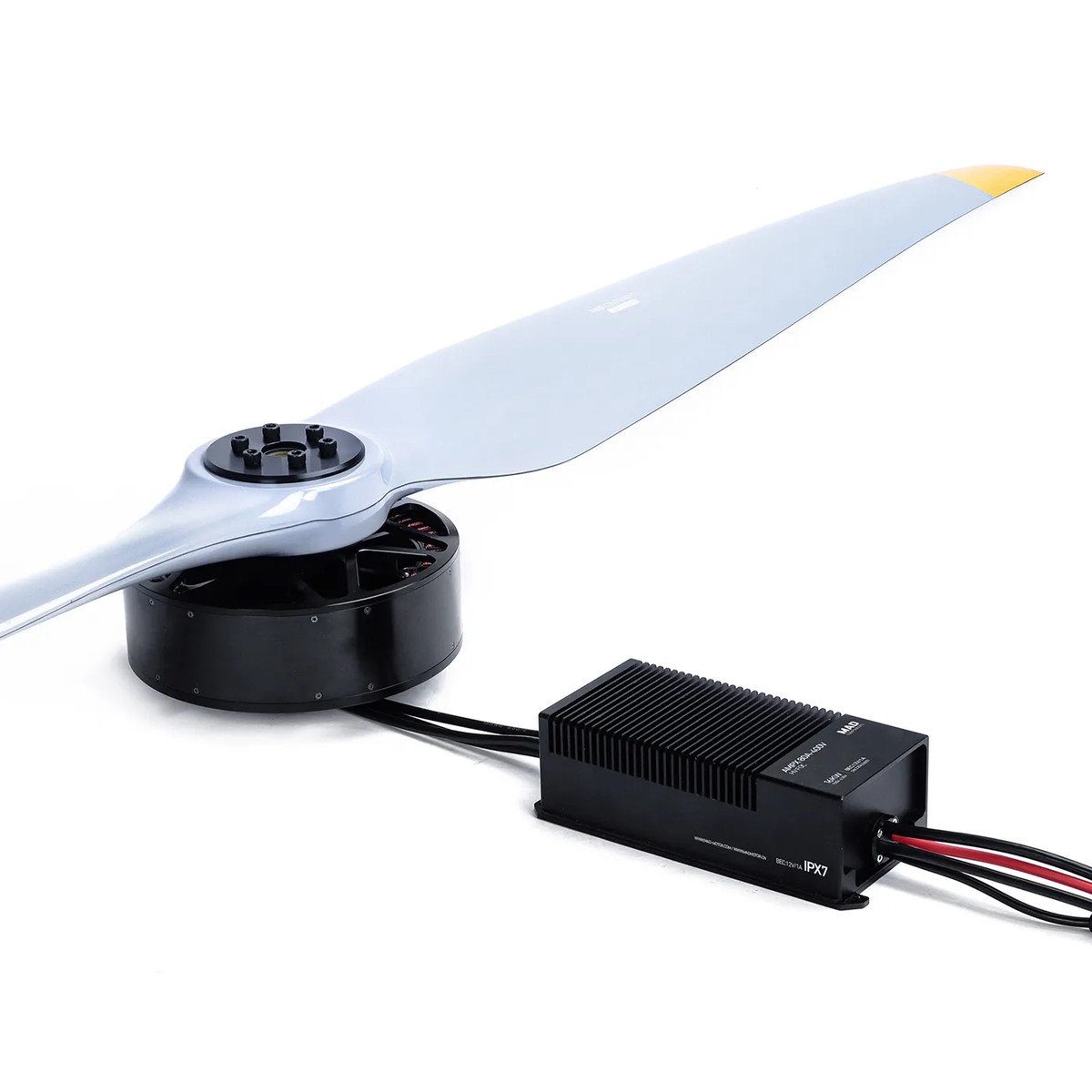

Name: MAD HB40 Drone Power Combo - M50C35 EEE V2.0 9KV Motor, SineSic Pro 80A 16kW ESC, Fluxer 63x22
SKU: ELAC22173209485
Availability: InStock

Description
Reviews (0)

Overview

The MAD HB40 drone power combo integrates a motor, FOC ESC, and propeller as a matched propulsion system for large multi-rotor and e-VTOL platforms. The system is rated for 40 kg continuous thrust per rotor and up to 19 kW maximum power, for heavy-load applications. Configuration: MAD M50C35 EEE V2.0 motor + SineSic Pro 80A ESC + FLUXER PRO 63×22 in (glossy) propeller. Recommended operating voltage range: 100-600 V.

Key Features

Designed for high-capacity multi-rotor and e-VTOL applications (heavy-payload lifting).
Integrated propulsion unit with matched motor, ESC, and propeller.
Recommended operating voltage range: 100-600 V.
High-quality aviation-grade aluminum construction (durability-focused).
Stable rotation and anti-fall properties supported by Japanese bearing.
Curved magnets designed for elevated-temperature resistance (performance increase by 5% stated).

Specifications

Motor (MAD M50C35 EEE V2.0)

RPM/V (KV)	9 KV
Motor size	D:191 x 94 mm
Internal resistance	174.5 m
No load current	0.92 A / 30 V
Motor weight	4200 g
Nominal voltage	354 V-400 V
Cable length	150 mm (extended enameled wires)
Maximum current	53.4 A
Maximum power	19142 W
Maximum thrust	93 kg
Recommended continuous thrust	40 kg
Shaft diameter	IN: 25 mm
Stator	TAIWAN / Anticorrosive

ESC (SineSic Pro 80A 16KW (150V~435V))

ESC model	SineSic Pro 80A 16KW (150V~435V)
Size (LWH)	197.088.059.5 mm
Weight	1400 g
Protection level	IP67
Continuous current	80 A (under good cooling)
Instant current	150 A (under good cooling)
PWM input signal voltage	3.3 V / 5 V
Recommended battery	96~100S LiPo
Cable length (input)	690 mm (10AWG silicone flexible wire)
Cable length (output)	600 mm (10AWG silicone flexible wire)
Cable length (signal)	1250 mm (9-core PVC flexible wire)
Cable length (LED wire)	155 mm (4-core PVC flexible wire with waterproof connector)

Propeller (FLUXER 63X22 GLOSSY)

Propeller model	FLUXER 63X22 GLOSSY (1600.2 x 558.8 mm)
Material	High quality carbon fiber + resin
Type	Fixed
Single weight	1083 g

ESC Line / Signal Definition (as labeled)

Power input: Red V+, Black V-
Motor outputs: Output U, Output V, Output W
Interfaces/functions labeled: blade positioning/temperature monitoring, connect light board, PWM input, CAN1, CAN2, 12V/1A output

Test Data

Analytical graph/test notes state: data measured at an input voltage of 400 V, at a temperature of 25C and sea level; rotational speed adjusted by the throttle.

354 V Test Table

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	353.68	3.09	1092.9	908.4	8.961	968	12270	83.1	11.2
35	353.69	4.68	1655.3	1418.9	11.980	1131	17063	85.7	10.3
40	353.66	6.65	2351.8	2039.2	15.213	1280	22008	86.7	9.4
45	353.7	9.16	3239.9	2820.6	18.968	1420	27779	87.1	8.6
50	353.63	12.1	4278.9	3768.5	23.068	1560	33780	88.1	7.9
55	353.68	15.35	5429.0	4801.4	27.114	1691	40352	88.4	7.4
60	353.68	19.31	6829.6	6005.0	31.699	1809	46801	87.9	6.9
65	353.62	23.33	8250.0	7284.6	36.024	1931	52449	88.3	6.4
70	353.65	27.13	9594.5	8442.8	39.521	2040	59395	88	6.2
75	353.68	32.18	11381.4	10026.5	44.533	2150	66751	88.1	5.9
80	353.59	37.55	13277.3	11705.6	49.482	2259	74365	88.2	5.6
85	353.56	44.12	15599.1	13613.2	55.341	2349	82174	87.3	5.3
90	353.59	49.34	17446.4	15225.8	59.321	2451	87230	87.3	5.0
95	353.59	54.14	19143.4	16569.6	63.520	2491	94370	86.6	4.9
100	353.59	53.4	18881.7	16349.4	62.701	2490	92954	86.6	4.9

400 V Test Table

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	399.39	2.72	1086.3	897.2	8.869	966	12248	82.6	11.3
35	399.44	4.18	1669.7	1384.7	11.859	1115	16823	82.9	10.1
40	399.39	5.99	2392.3	2057.4	15.313	1283	21335	86	8.9
45	399.42	8.39	3351.1	2851.2	19.448	1400	28333	85.1	8.5
50	399.42	10.9	4353.7	3761.3	23.143	1552	33868	86.4	7.8
55	399.41	13.35	5332.4	4634.4	26.264	1685	39527	86.9	7.4
60	399.37	16.88	6741.4	5872.9	31.105	1803	45995	87.1	6.8
65	399.41	20.33	8120.0	7098.4	35.140	1929	52180	87.4	6.4
70	399.38	24.38	9736.9	8554.7	40.045	2040	59592	87.9	6.1
75	399.34	28.8	11501.0	10049.6	44.698	2147	66446	87.4	5.8
80	399.37	33.23	13271.1	11517.0	49.098	2240	72801	86.8	5.5
85	399.37	38.37	15323.8	13225.2	53.764	2349	79231	86.3	5.2
90	399.34	44.67	17838.5	15257.3	59.982	2429	89785	85.5	5.0
95	399.31	48.16	19230.8	16481.5	62.829	2505	93588	85.7	4.9
100	399.3	47.94	19142.4	16391.8	62.462	2506	92356	85.6	4.8

What’s Included

MAD M50C35 EEE V2.0 motor (9 KV)
SineSic Pro 80A ESC (16KW, 150V~435V)
FLUXER PRO 63×22 in GLOSSY carbon fiber propeller

Applications

Large multi-rotor drones
e-VTOL platforms
Heavy-load aerial platforms
Delivery drone and urban mobility concepts

For integration/selection questions, contact support@ or visit https:///.

Details

The MAD Hummingbird HB40 power combo pairs a drone motor and ESC with a spec sheet that includes basic parameters and performance curves.

MAD HB40 drone power combo documentation includes motor and ESC dimension diagrams to help plan mounting, stack layout, and wiring.

The MAD HB40 drone power combo includes a clear ESC wiring layout, propeller mounting measurements, and reference test data for setup and tuning.
