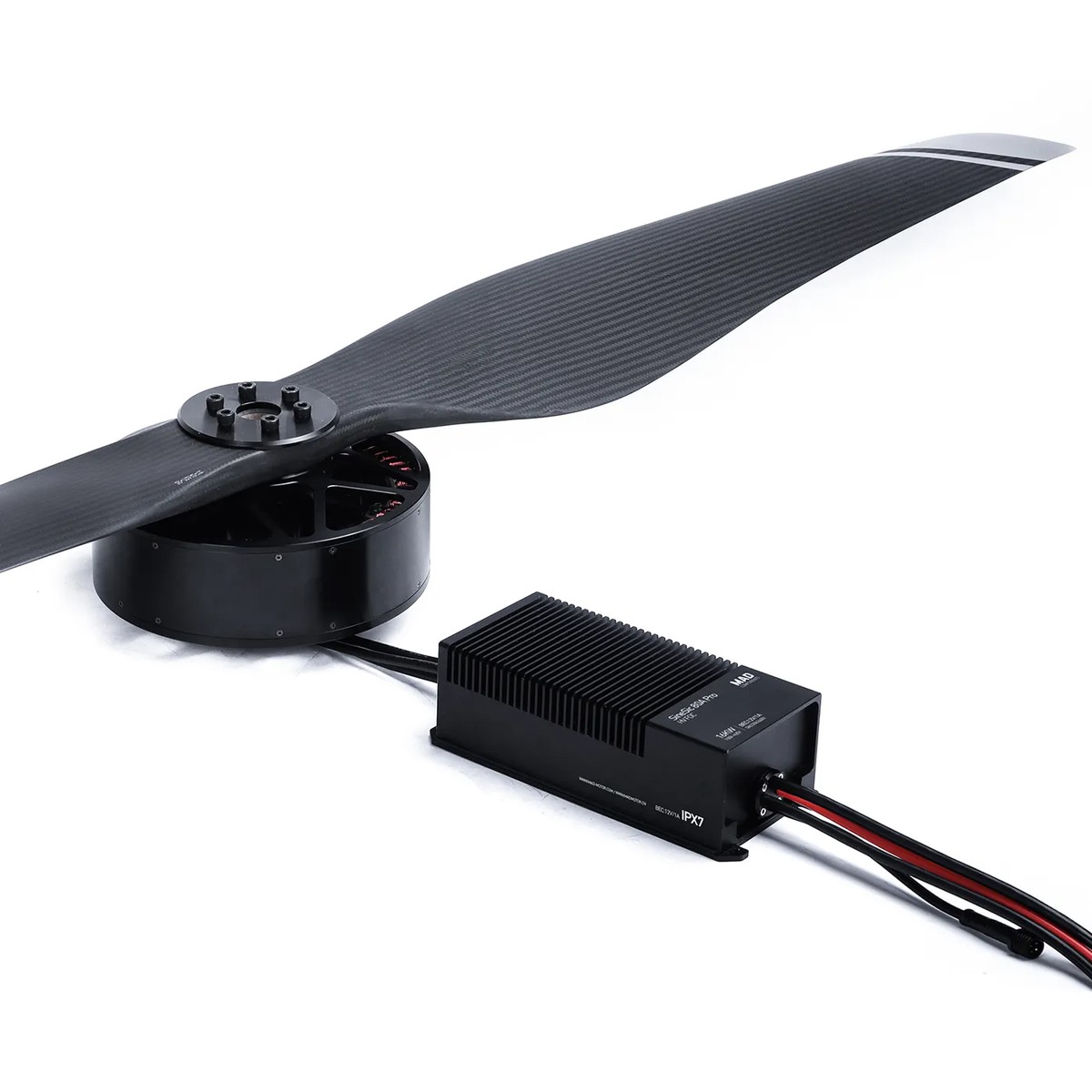

MAD HB40-60X19 drone arm set (M50C35 EEE V2.0 + SineSic Pro 80A 16kW + CB2 60×19)

MAD HB40-60X19 drone arm set (M50C35 EEE V2.0 + SineSic Pro 80A 16kW + CB2 60×19)

MAD HB40-60X19 drone arm set (M50C35 EEE V2.0 + SineSic Pro 80A 16kW + CB2 60×19)

Original price was: $6,307.50.Current price is: $147.00.
  • SKU:A2380047542
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

This drone arm set is the MAD Hummingbird HB40-60X19 integrated propulsion combo for high-capacity multi-rotor and e-VTOL platforms, combining the MAD M50C35 EEE V2.0 motor, SineSic Pro 80A 16KW ESC (150V~435V), and CB2 60×19 inch propeller.

Key Features

  • Designed for high-capacity multi-rotor and e-VTOL applications; suitable for heavy payload lifting drones.
  • Recommended operating voltage range: 100V-600V.
  • Propulsion system unit with motor + ESC + propeller for large-scale aircraft power matching.
  • Aviation-grade aluminum construction.
  • Japanese bearing for stable rotation and anti-fall properties.
  • High-performance curved magnets; resistant to elevated temperatures (performance increase by 5%).

Specifications

Combo Configuration

  • Motor: MAD M50C35 EEE V2.0 (9KV)
  • ESC: SineSic Pro 80A 16KW (150V~435V)
  • Propeller: CB2 60×19 inch (CB2 60X19 MATT, 1524 x 482.6mm)

Motor Data (MAD M50C35 EEE V2.0)

Motor Model MAD M50C35 EEE V2.0
RPM/V 9KV
Motor Size D:191 x 94 mm
Internal Resistance 174.5 m
No Load Current 0.92A / 30V
Motor Weight 4200 g
Recommended Continue Thrust 40 kg
Nominal Voltage 354V~400V
Cable Length 150 mm (extended Enameled wires)
Maximum Current 52.1A
Maximum Power 20121W
Maximum Thrust 93.8 kg
Shaft Diameter IN: 25 mm
Stator TAIWAN / Anticorrosive

ESC Data (SineSic Pro 80A 16KW)

ESC Model SineSic Pro 80A 16KW (150V~435V)
Size (L*W*H) 197.0*88.0*59.5 mm
Protection Level IP67
Recommended Battery 96~100S LiPo
Cable Length (Input) 690 mm (10AWG Silicone Flexible Wire)
Cable Length (Output) 600 mm (10AWG Silicone Flexible Wire)
Weight 1400g
Continuous Current 80A (under good cooling)
Instant Current 150A (under good cooling)
PWM Input Signal Voltage 3.3V/5V
Cable Length (Signal) 1250 mm (9-Core PVC Flexible Wire)
Cable Length (LED Wire) 155 mm (4-Core PVC Flexible Wire with Waterproof Connector)

Propeller Data (CB2 60X19 MATT)

Propellers Model CB2 60X19 MATT (1524 x 482.6mm)
Material High quality carbon fiber + Resin
Single Weight 810 g
Type fixed

Drawings & Dimensions

Motor Dimension (selected callouts)

  • Outer diameter marking: 191
  • Hole pattern markings: 80-M6X6; 50-M6X6; 32-M4X4; 50-6.2X6
  • Additional markings: 90; 83; 11; 25; 35

ESC Dimension (selected callouts)

  • Body size: 197.0 x 88.0 x 59.5 mm
  • Drawing markings: 59.5; 88; 67; 58; 65; 174; 179; 188; 197; 4.3; M3*14

Propeller Mounting Hole (callouts)

  • 50mm; 25mm; M6

ESC Line Sequence Definition

  • Phase outputs: Output U / Output V / Output W
  • Power input: Red V+ / Black V-
  • Blade positioning / Temperature monitoring
  • Connect light board
  • LED wiring labels: GND (Black), Green LED (White), Red LED (Red)
  • PWM input: GND (Black), PWM input (White)
  • CAN wiring labels: GND (Blue), CAN1H (Green), CAN1L (Yellow), CAN2H (Black), CAN2L (Orange)
  • 12V/1A Output: Red

Test Data

354V

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [Nm] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 353.71 3.15 1114.2 865.3 7.651 1080 12318 77.7 11.1
35 353.7 4.79 1694.2 1405.6 10.594 1267 17455 83 10.3
40 353.71 6.95 2458.3 2081.2 13.869 1433 23169 84.7 9.4
45 353.72 9.53 3371.0 2935.2 17.562 1596 28960 87.1 8.6
50 353.63 12.3 4349.6 3815.9 20.846 1748 35107 87.7 8.1
55 353.69 15.76 5574.2 4923.5 24.929 1886 41411 88.3 7.4
60 353.64 19.44 6874.8 6052.8 28.699 2014 47601 88 6.9
65 353.65 23.53 8321.4 7334.1 32.727 2140 53243 88.1 6.4
70 353.64 28.41 10046.9 8940.9 37.447 2280 60572 89 6.0
75 353.61 32.9 11633.8 10357.7 41.075 2408 66872 89 5.7
80 353.58 39.45 13948.7 12347.8 46.996 2509 75362 88.5 5.4
85 353.59 44.5 15734.8 13893.9 50.505 2627 80643 88.3 5.1
90 353.56 52.15 18438.2 16125.5 56.509 2725 89613 87.5 4.9
95 353.52 52.28 20003.2 16125.5 59.843 2801 93053 87.4 4.8
100 353.57 52.11 20120.9 16125.5 59.403 2810 92183 87.2 4.7

400V

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [Nm] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 399.44 2.74 1094.5 852.6 7.539 1080 12092 77.9 11.0
35 399.46 4.35 1737.7 1433.4 10.778 1270 17438 82.5 10.0
40 399.42 6.09 2432.5 2050.9 13.686 1431 22516 84.3 9.3
45 399.44 8.37 3343.3 2890.8 17.146 1610 27748 86.5 8.3
50 399.41 11.11 4437.4 3858.2 21.174 1740 33966 86.9 7.7
55 399.37 13.84 5527.3 4860.9 24.547 1891 39766 87.9 7.2
60 399.37 17.35 6929.1 6150.7 28.919 2031 45996 88.8 6.6
65 399.39 20.99 8383.2 7452.0 32.945 2160 52773 88.9 6.3
70 399.37 25.26 10088.1 8912.2 37.327 2280 60032 88.3 6.0
75 399.35 30.13 12032.4 10629.9 42.295 2400 67249 88.3 5.6
80 399.33 34.35 13717.0 12151.3 46.028 2521 75880 88.6 5.4
85 399.33 40.37 16121.0 14231.8 51.694 2629 81846 88.3 5.1
90 399.35 46.36 18513.9 16206.0 56.708 2729 89811 87.5 4.9
95 399.29 50.39 20120.2 17595.6 59.817 2809 94085 87.5 4.7
100 399.29 50.23 20056.3 17491.3 59.399 2812 93757 87.2 4.7

Whats Included

  • MAD M50C35 EEE V2.0 motor (9KV)
  • SineSic Pro 80A 16KW ESC (150V~435V)
  • CB2 60X19 MATT propeller (1524 x 482.6mm)

Applications

  • Large multi-rotor and e-VTOL drones
  • Heavy-load UAV platforms
  • Delivery drone and urban mobility platforms

For integration and compatibility questions (battery voltage, wiring, mounting), contact [email protected] or visit https://rcdrone.top/.

Details

The Hummingbird HB40 set pairs an M50C35 motor with a SineSic Pro 80A ESC and CB2 60×19 prop for a matched drivetrain.

Motor and ESC dimension drawings with key ESC data help confirm fitment and wiring layout for your HB40-60X19 arm build.

The set includes a clear ESC wiring layout, 60×19 propeller mounting dimensions, and test data tables at 35V and 400V for setup reference.
