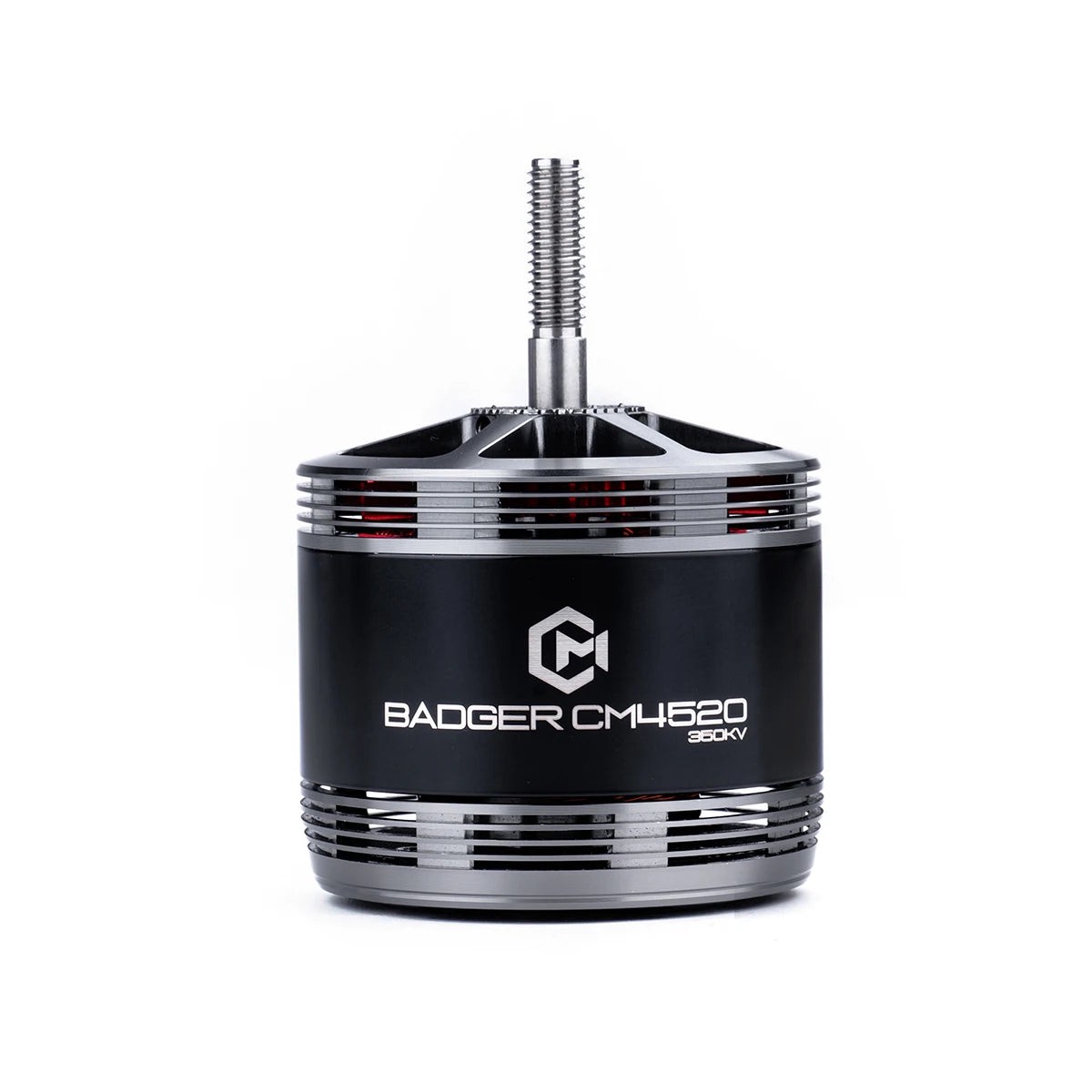

MAD CM 4520 BADGER FPV Drone Motor – 12S 350KV 10.9kgf Brushless for 13-15 inch Three-blade prop long range FPV RACING Cinelifter drone

MAD CM 4520 BADGER FPV Drone Motor – 12S 350KV 10.9kgf Brushless for 13-15 inch Three-blade prop long range FPV RACING Cinelifter drone

MAD CM 4520 BADGER FPV Drone Motor – 12S 350KV 10.9kgf Brushless for 13-15 inch Three-blade prop long range FPV RACING Cinelifter drone

Original price was: $123.47.Current price is: $61.74.
  • SKU:A2380054471
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

MAD CM 4520 BADGER FPV Drone Motor Summary

The MAD BADGER CM4520 V1.0 Brushless Motor is designed for robust drone applications, offering a 350KV rating and a maximum thrust of 10.9 kg. Operating with a nominal voltage of 6S lipo battery, it supports a maximum power of 4473W and a maximum current of 99.5 A. The motor weighs 383 g and features an internal resistance of 39.9m. It includes anticorrosive stator materials, IP45 degree of protection, and a 750 mm 14# Awg(Red/Black) silicone cable. This motor is compatible with propellers like 13X8X3, 15X7X3, and APC 15X8, making it suitable for high-performance and demanding UAV operations.

MAD CM 4520 BADGER FPV Drone Motor SPECIFICATIONS

Motor Data
Motor Model MAD BADGER CM4520 V1.0 Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 220C
Motor Size D:53 49.7 mm Magnet Degree 180C
Degree of Protection IP45 Cable Length 750 mm 14# Awg(Red/Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance 5 mg
Propeller Mounting Holes M6 Nut Motor Balance 10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:30 M34
Bearing 606 ZZ *3 Disruptive test 500 V
Additional Accessories M3*8mm 4 Cup head Screws, M6 Nut1, Propeller Plate 1, MAD Sticker6
Specifications
RPM/V 350KV Nominal Voltage 6S lipo battery
No Load Current 1.35A / 20V Internal resistance 39.9m
Motor Weight 383 g Product Boxed Weight 630 g
Maximum Current 99.5 A Maximum Power 4473W
Maximum thrust 10.9 kg Maximum Torque 2.54 Nm
Recommended ESC Recommended Propellers 13X8X3, 15X7X3, APC 15X8
