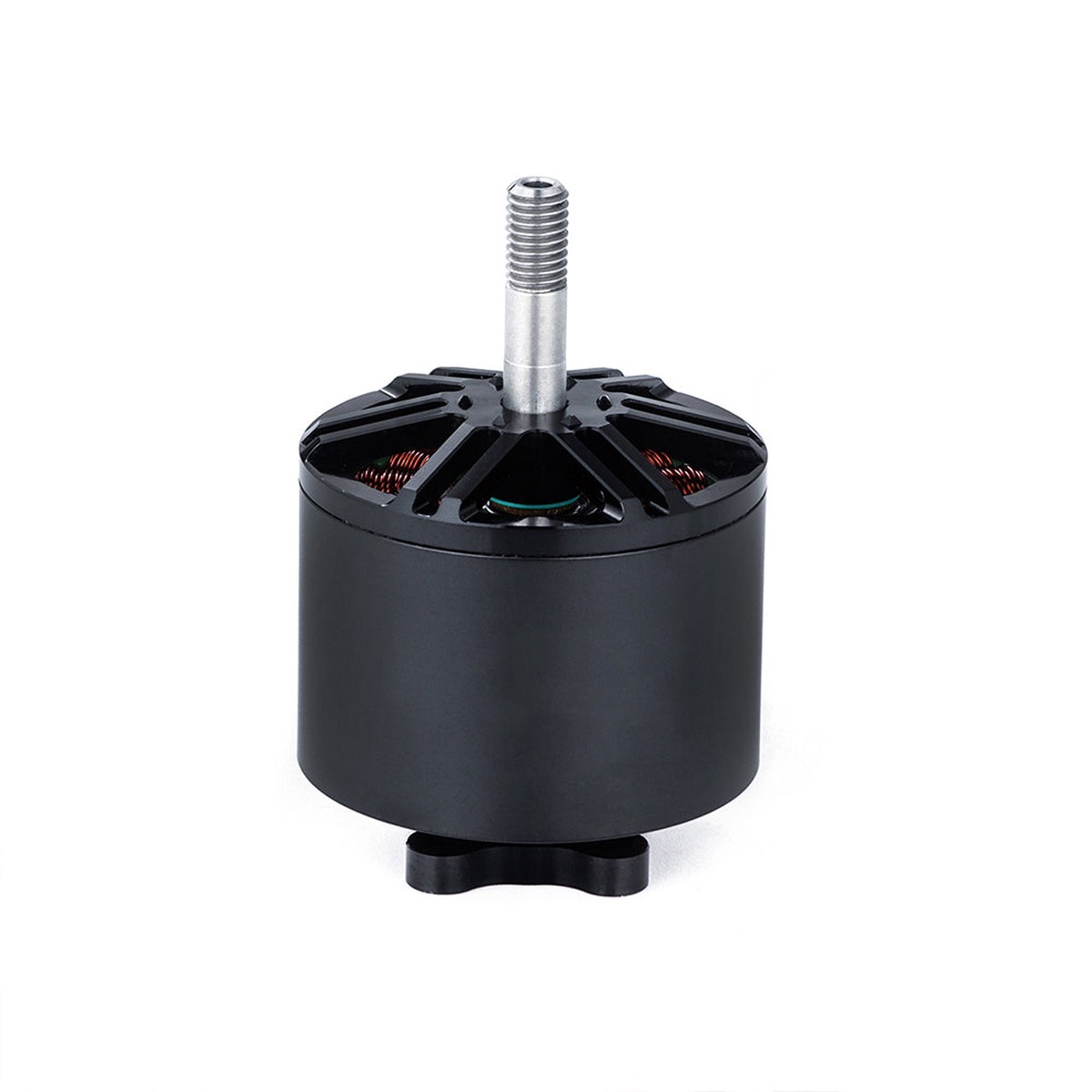

MAD BSC 3120 FPV Drone Motor 500KV / 700KV / 1000KV – Brushless (BSC3120 V1.0)

Overview

MAD BSC3120 V1.0 is a BSC series FPV drone motor designed as an entry-level option that balances cost effectiveness with consistent build quality for a wide range of pilots, from beginners to experienced users. KV options shown include 500KV, 700KV-8S, and 1000KV-6S.

Key Features

• BSC3120 energy-efficient class motor platform (500KV / 700KV / 1000KV variants shown)
• Rotor balance: 5 mg
• M5 nut propeller mounting interface
• 300 mm 16# Awg (Black) silicone cable

Specifications

General (Motor Data)

500KV (12S, prop: 10x5x3)

700KV (8S, prop: 10x5x3)

1000KV (6S, prop: 10x5x3)

Whats Included

Applications

• FPV drone motor replacement or custom builds

For product compatibility questions (frame, prop, ESC, and battery matching) or order support, contact [email protected] or visit https://rcdrone.top/.

Details

The BSC3120 motor uses an M5 shaft with an 19 mm M3x4 mounting pattern and a 37.1 mm body for straightforward fitment planning.

The MAD BSC3120 V1.0 brushless motor sheet provides key specs, performance curves, and dimension drawings to help plan your build.

The MAD BSC3120 V1.0 700KV motor includes an 8S performance chart with key figures like 146.5g weight and up to 5.0kg max thrust.

Details

The MAD BSC 3120 brushless motor uses an 19 mm M3x4 mounting pattern and a 37.1 mm diameter body for straightforward frame fitment.

MAD BSC3120 V1.0 motor documentation includes the 500KV rating along with performance data and dimensional drawings for build planning.

MAD BSC3120 700KV motor performance data includes 8S test results and key specs like 146.5g weight and up to 5.0kg thrust.

BSC3120 V1.0 motor test data outlines the 1000KV setup with efficiency curves and detailed thrust measurements for tuning and prop selection.
