MAD BSC 2207.5 V2.0 FPV Drone Motor for 5-Inch, 1777/1999/2111KV, 34g, 4mm Shaft

MAD BSC 2207.5 V2.0 FPV Drone Motor for 5-Inch, 1777/1999/2111KV, 34g, 4mm Shaft

MAD BSC 2207.5 V2.0 FPV Drone Motor for 5-Inch, 1777/1999/2111KV, 34g, 4mm Shaft

Original price was: $21.50.Current price is: $17.20.
  • SKU:WKA86610369623
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The MAD BSC 2207.5 V2.0 is a FPV drone motor designed for 5-inch FPV drones, built with a one solid construction concept for consistent output and durability. It is offered in 1777KV, 1999KV, and 2111KV options, with published electrical parameters and 6S thrust test data for common GF propellers.

Key Features

  • Titanium alloy axle: lightweight damping, ultra-high bending strength, impact-resistant durability, and precise power transfer.
  • Precise power: smooth and predictable power at low RPMs for quicker attitude changes.
  • N52H curved magnet: N52H arc magnets with enhanced magnetic properties.
  • High slot fill factor: premium oxygen-free single-crystal copper wiring for reliable and efficient operation.

Specifications

Motor data

Motor Model MAD BSC2207.5 V2.0
Motor Size D:28 31.6 mm
Motor Number of Slots 12N14P
Propeller Mounting M5 Nut
Shaft Diameter IN: 4 mm
Motor Balance D:16 M34
Rotor Balance 5 mg
Cable Length 150mm 20# (Black) silicone
Compatible Models Designed for 5-inch FPV Drones

Technical specifications (by KV option)

Parameter 1777 KV 1999 KV 2111 KV
RPM/V 1777 KV 1999 KV 2111 KV
No Load Current 1.15A / 10V 1.25A / 10V 1.4A / 10V
Maximum Current 36.9 A 42 A 44.7 A
Motor Weight 34g 34g 34g
Internal Resistance 70 m 55 m 46 m
Maximum Thrust 1.75 kg 1.8 kg 1.85 kg
Maximum Power 850 W 970 W 1041 W
Product Boxed Weight 46g 46g 46g

6S thrust test data: MAD BSC2207.5 V2.0 1777KV

Propeller Throttle [%] Voltage [V] Current [A] Input Power [W] RPM Thrust [gf] Efficiency [gf/W]
GF 5128 50 24.48 7.8 190.2 18071 619 3.3
GF 5128 55 24.43 9.4 230.4 19432 713 3.1
GF 5128 60 24.35 11.5 280.8 20776 828 2.9
GF 5128 65 24.25 13.5 327.9 22217 924 2.8
GF 5128 70 24.16 16.1 389.9 23177 1049 2.7
GF 5128 75 24.07 18.6 448.7 24536 1147 2.6
GF 5128 80 23.94 21.2 506.3 25501 1243 2.5
GF 5128 85 23.81 23.7 563.8 26378 1323 2.3
GF 5128 90 23.64 26.5 626.7 27407 1419 2.3
GF 5128 95 23.46 30.0 702.6 28285 1533 2.2
GF 5128 100 23.14 34.7 803.4 29881 1648 2.1
GF 51466 50 24.40 8.0 194.0 17830 615 3.2
GF 51466 55 24.35 9.9 239.8 19162 721 3.0
GF 51466 60 24.27 11.8 286.6 20421 822 2.9
GF 51466 65 24.17 14.1 341.8 21886 935 2.7
GF 51466 70 24.08 16.6 399.0 23056 1043 2.6
GF 51466 75 23.99 19.2 460.6 24268 1135 2.5
GF 51466 80 23.86 21.7 517.8 25082 1229 2.4
GF 51466 85 23.73 24.5 582.3 26030 1327 2.3
GF 51466 90 23.56 27.6 650.3 26950 1445 2.2
GF 51466 95 23.38 30.6 715.7 27920 1536 2.1
GF 51466 100 23.06 36.9 850.2 29288 1751 2.1

6S thrust test data: MAD BSC2207.5 V2.0 1999KV

Propeller Throttle [%] Voltage [V] Current [A] Input Power [W] RPM Thrust [gf] Efficiency [gf/W]
GF 4937 50 24.44 8.7 213.8 18282 649 3.0
GF 4937 55 24.39 10.7 260.0 19706 751 2.9
GF 4937 60 24.31 13.1 317.7 21180 882 2.8
GF 4937 65 24.21 15.4 372.1 22271 987 2.7
GF 4937 70 24.12 17.9 431.5 23681 1090 2.5
GF 4937 75 24.03 20.8 499.8 24669 1195 2.4
GF 4937 80 23.90 23.5 561.6 25556 1286 2.3
GF 4937 85 23.77 26.1 621.3 26340 1371 2.2
GF 4937 90 23.60 29.2 690.0 27357 1469 2.1
GF 4937 95 23.42 32.7 764.9 28049 1507 2.0
GF 4937 100 23.10 40.0 925.1 30017 1735 1.9
GF 51466 50 24.46 9.5 232.3 18627 680 2.9
GF 51466 55 24.41 11.7 284.8 19943 783 2.8
GF 51466 60 24.33 14.1 343.2 21513 897 2.6
GF 51466 65 24.23 16.5 399.7 22693 1000 2.5
GF 51466 70 24.14 19.3 465.6 23910 1118 2.4
GF 51466 75 24.05 22.6 543.0 24914 1203 2.2
GF 51466 80 23.92 25.3 604.8 25763 1320 2.2
GF 51466 85 23.79 28.0 665.5 26508 1399 2.1
GF 51466 90 23.62 31.3 739.7 27236 1503 2.0
GF 51466 95 23.44 34.8 815.9 27958 1567 1.9
GF 51466 100 23.12 42.0 970.7 30128 1802 1.9

6S thrust test data header: MAD BSC2207.5 V1.0 2111KV (6S)

Propeller Throttle [%] Voltage [V] Current [A] Input Power [W] RPM Thrust [gf] Efficiency [gf/W]
GF 51466 50 24.10 10.5 252.1 20773 762 3.0
GF 51466 55 24.05 12.6 302.3 21765 835 2.8
GF 51466 60 24.00 15.5 372.7 22871 919 2.5
GF 51466 65 23.94 18.9 451.5 24058 1024 2.3
GF 51466 70 23.88 22.2 529.4 25344 1142 2.2
GF 51466 75 23.81 25.6 609.1 26570 1266 2.1
GF 51466 80 23.74 29.6 702.7 27697 1425 2.0
GF 51466 85 23.68 33.4 791.6 29073 1540 1.9
GF 51466 90 23.60 37.3 880.8 30129 1668 1.9
GF 51466 95 23.51 41.6 977.5 31066 1784 1.8
GF 51466 100 23.29 44.7 1041.1 31864 1849 1.8

Whats Included

  • MAD BSC 2207.5 V2.0 motor 1
  • M5 Nut 1
  • M38mm pan head motor screws 4
  • M34mm pan head motor screws 1
  • Gasket 1
  • O-ring 1
  • Sticker 2

For compatibility or KV selection help, contact [email protected] or visit https://rcdrone.top/.

Applications

  • 5-inch FPV drone builds
  • 6S performance tuning and propeller matching using the provided GF prop test data

Details

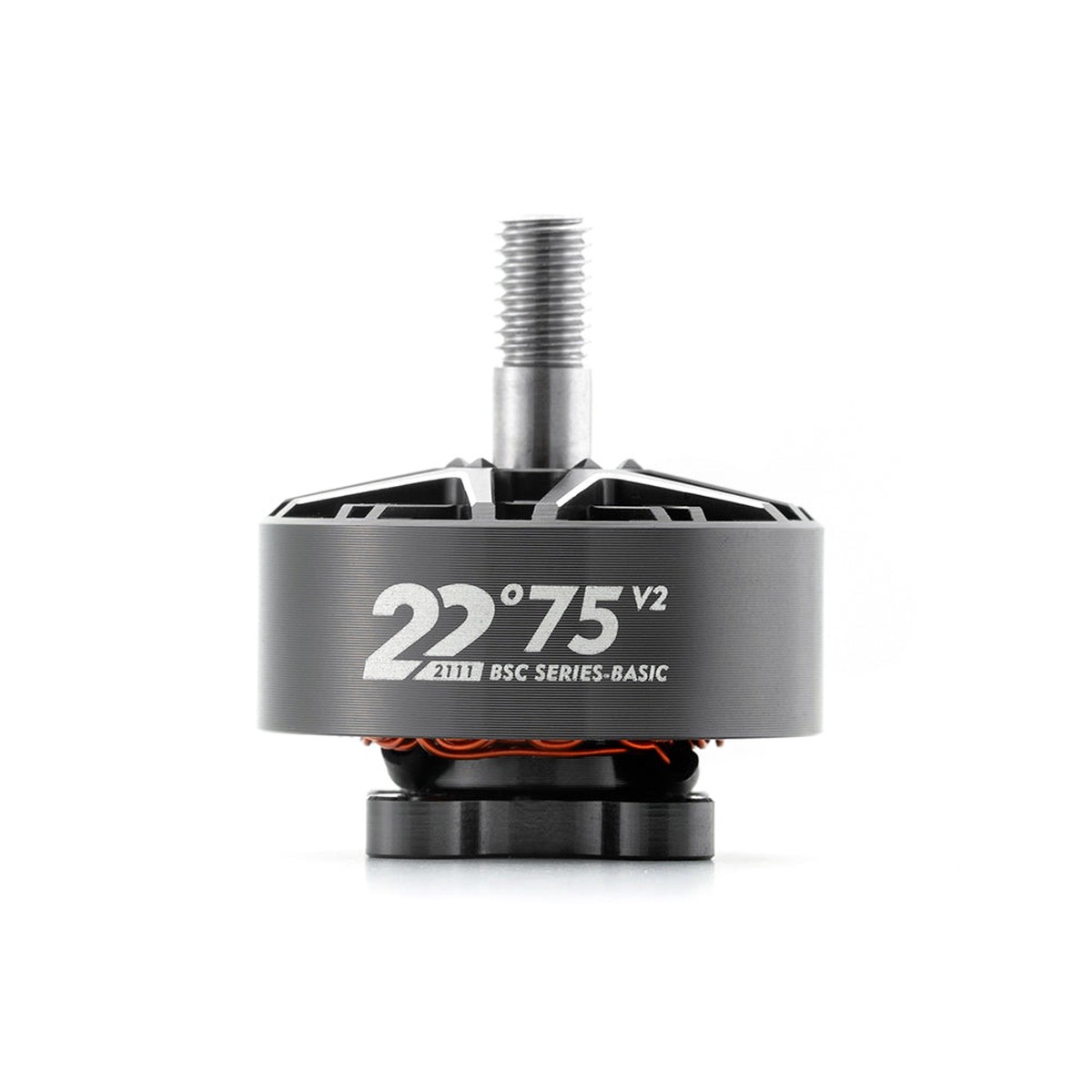

The MAD BSC2207.5 V2 motor is designed for 5-inch FPV drones and features a compact 2207.5-size housing with clear top labeling.

The MAD BSC 2207.5 V2 motor features a titanium alloy axle, N52H curved magnets, and a high slot fill factor for efficient power delivery.

MAD BSC 2207.5 V2 FPV drone motors feature a compact black design with a threaded shaft for straightforward prop mounting on 5-inch builds.

MAD BSC 2207.5 V2.0 FPV motor documentation lists 1.85kg maximum thrust, 1041W maximum power, 34g motor weight, and included mounting hardware.

BSC 2207.5 V2 motor options include 1777KV, 1999KV, and 2111KV with a listed motor weight of 34g and max current up to 44.7A.

MAD BSC2207.5 V2.0 1777KV motor 6S test data lists RPM, thrust, current draw, and efficiency across throttle settings for GF props.

The BSC2207.5 V2.0 1999KV motor includes a 6S performance table listing throttle, voltage, current, input power, RPM, thrust, and efficiency for compatible propellers.

The MAD BSC2207.5 2111KV motor includes a 6S test chart with throttle-by-throttle voltage, current, RPM, thrust, and efficiency values.
