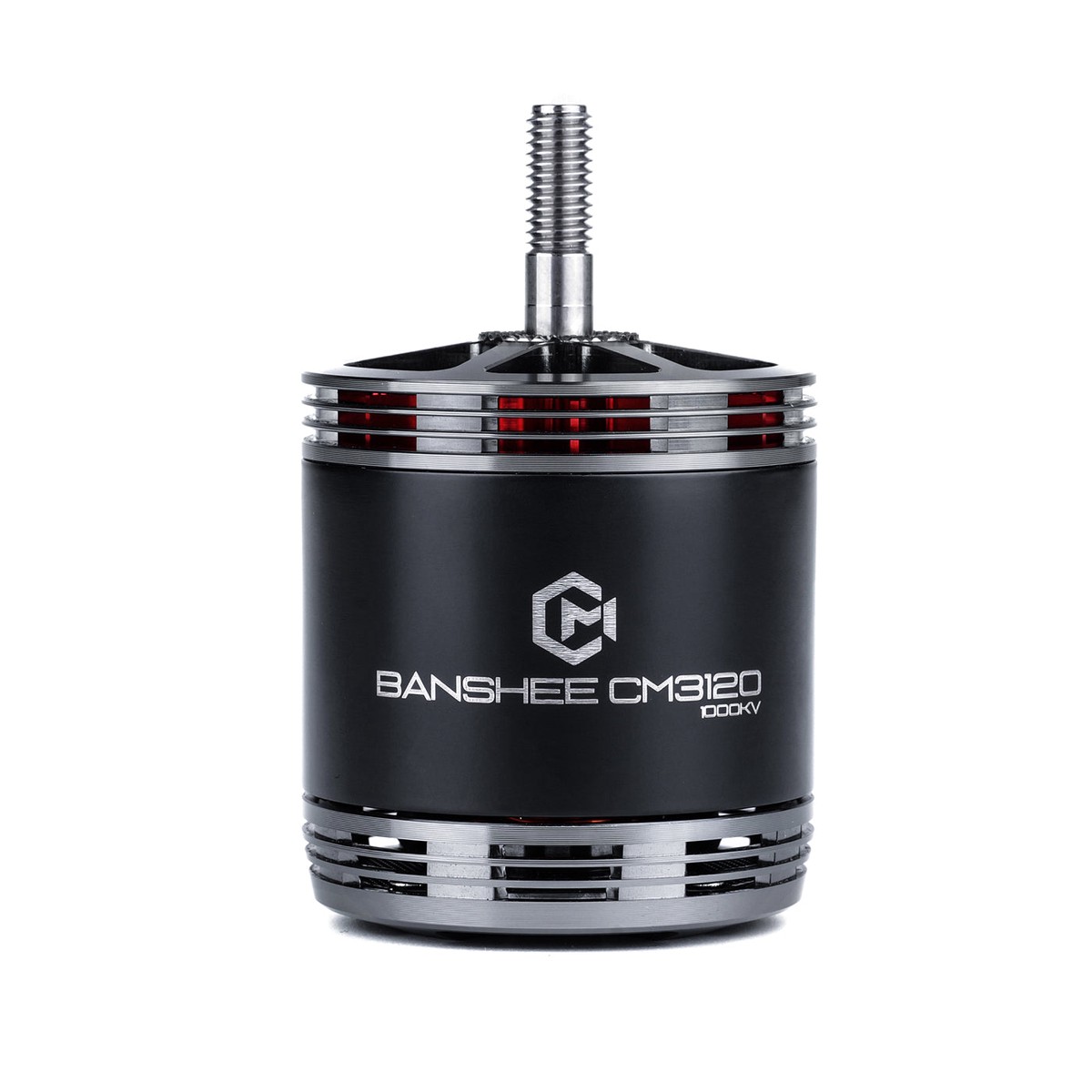

MAD BANSHEE CM3120 V1.0 FPV Drone Motor 500KV/700KV/1000KV (6S/8S/12S Data), M5 Nut, 19mm M3x4

Overview

MAD BANSHEE CM3120 V1.0 is an FPV drone motor from the CM Series, designed for film shooting work with high dust protection and improved heat dissipation. The design includes two ultra-thin stainless steel dust filters inside the stator and a split exhaust blade inside the rotor.

Key Features

• Two ultra-thin stainless steel dust filters inside the stator
• Split exhaust blade inside the rotor
• Anticorrosive stator

Specifications

Mounting / Drawing Dimensions

• Overall length: 59
• Front section length: 16.8
• Outer diameter: 37.1
• Mounting pattern: 19 – M3x4
• Prop nut: M5

500KV Test Data (10x5x3)

700KV Test Data (10x5x3)

1000KV Test Data (10x5x3)

For compatibility checks and ordering support, contact support@ or visit https:///.

Details

MAD BANSHEE CM3120 V1.0 uses an M5 shaft with a 19 mm M3 mounting pattern and a 37.1 mm motor body for fit checks.

The MAD BANSHEE CM3120 V1.0 motor is rated for 12S setups and lists 141g weight with up to 4.1kg max thrust on the spec sheet.

The MAD BANSHEE CM3120 V1.0 motor is listed as a 700KV 8S option with a 139g weight and up to 5.0kgf thrust, with test curves to help compare prop setups.

Details

The MAD BANSHEE CM3120 V1.0 motor uses an M5 shaft and a 37.1 mm body, with a 59 mm overall length for fitting your build.

Banshee CM3120 V1.0 motor performance data lists 12S support, 141 g weight, 6.1 kg max thrust, and a 110C max temperature rating.

The MAD BANSHEE CM3120 V1.0 motor is listed as a 700KV option with 8S support, 139g weight, and a max operating temperature of 90C.

The BANSHEE CM3120 V1.0 1000KV motor is rated for 6S setups and lists a 140g weight with up to 5.9kgf max thrust.
