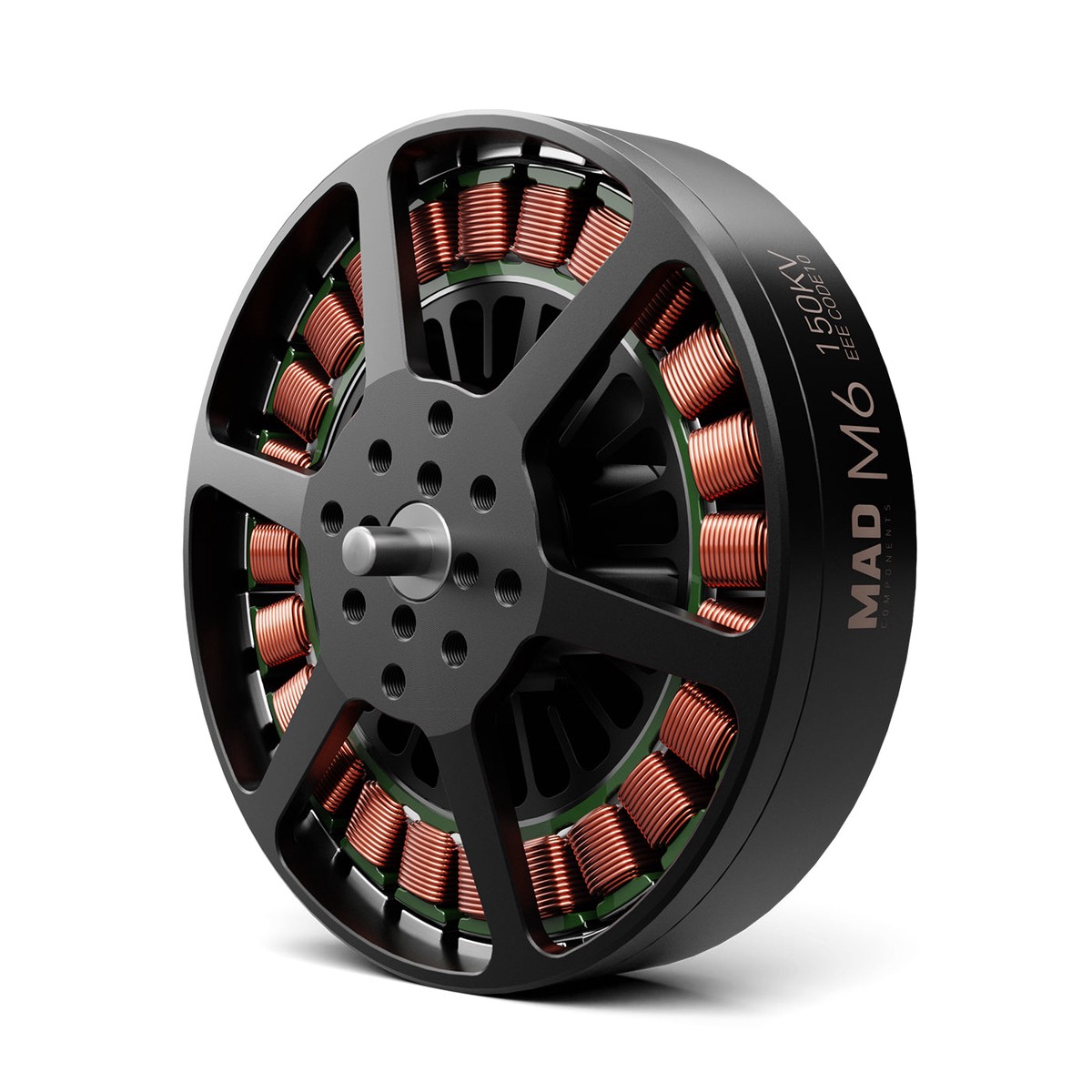

Name: MAD Antimatter M6C10 EEE V2.0 Drone Motor 150KV/200KV/250KV/300KV for 6S-12S Builds
SKU: ELAC22173209696
Availability: InStock

Description
Reviews (0)

Overview

MAD Antimatter M6C10 EEE is a drone motor designed for medium to heavy-lift multi-rotor platforms. It is engineered for 2.55 kg single-axis payloads, optimized for 1824 inch carbon fiber propellers, and supports a broad voltage range from 6S to 12S.

Key Features

Sustained thrust: 2.5~5kg
Max thrust: 10.4kg
KV / voltage options: 150KV/12S; 200KV/12S; 250KV/12S; 300KV/6S
Lightweight design (motor weight by KV option): 209g, 210g, 220g, 213g
Rain protection
Independent centrifugal heat dissipation

Specifications

General (M6C10 EEE V2.0)

Motor model	MAD M6C10 EEE V2.0
Number of pole pairs	14
Stator	Anticorrosive
Varnished wire degree	180C
Magnet degree	150C
Motor size	D:72 31.4 mm
Degree of protection	Rain protection
Cable length	60 mm 16# Awg(Black) silicone
Centrifugal heat dissipation	Independent
Rotor balance	5 mg
Motor balance	10 mg
Bearing	696ZZ*2
Disruptive test	500 V

Mounting / Dimensions (drawing)

Motor mounting holes	25-M3x4; 32-M4x4
Propeller mounting holes	12-M3x4; 18-M3x4; 22-M3x4
Key dimensions shown	72; 31.4; 25; 6.4; 4; 10.5; 7; 1.4; 5.8; 12-3.2×2; 2.9
Shaft diameter	IN: 6 mm

150KV (12S)

Efficiency (shown)	>82%
Recommended hover thrust	3.0~4.0 kgf
Maximum thrust	8.5 kgf
Motor weight	209 g
RPM/V	150KV
No load current	0.7A / 20V
Nominal voltage	12S lipo battery
Internal resistance	120m
Maximum current	36.3 A
Maximum power	1732W
Maximum torque	2.38 Nm
Recommended ESC	MAD AMPX 40A (5-14S) HV
Recommended propellers	21×6.3, 22×6.6, 22×7.0, 22.1×7.4, 24×7.2
Single rotor take-off weight	3kg ~ 4kg
Product boxed weight	379g (110 x 110 x 55 mm)

200KV (12S)

Efficiency (shown)	>80%
Recommended hover thrust	3.0~4.0 kgf
Maximum thrust	9.6 kgf
Motor weight	201 g
RPM/V	200KV
No load current	1.03A / 20V
Nominal voltage	12S lipo battery
Internal resistance	64m
Maximum current	47 A
Maximum power	2238W
Maximum torque	2.3 Nm
Recommended ESC	MAD AMPX 60A (5-14S)
Recommended propellers	19×5.7, 20×6.0, 21×6.3
Single rotor take-off weight	3kg ~ 4kg
Product boxed weight	371g (110 x 110 x 55 mm)

250KV (8-12S)

Efficiency (shown)	>79%
Recommended hover thrust	4.0~5.0 kgf
Maximum thrust	10.4 kgf
Motor weight	213 g
RPM/V	250KV
No load current	1.3A / 20V
Nominal voltage	8-12S lipo battery
Internal resistance	41m
Maximum current	62.7 A
Maximum power	2992W
Maximum torque	2.40 Nm
Recommended ESC	MAD AMPX 60A (5-14S)
Recommended propellers	18×6.1, 18.1×8.2, 21×6.3, 22×6.6, 22.1×7.4
Single rotor take-off weight	4kg ~ 5kg
Product boxed weight	383g (110 x 110 x 55 mm)

300KV (6S)

Efficiency (shown)	>82%
Recommended hover thrust	2.5~3.5 kgf
Maximum thrust	7.4 kgf
Motor weight	214 g
RPM/V	300KV
No load current	1.5A / 20V
Nominal voltage	6S lipo battery
Internal resistance	45m
Maximum current	59.2 A
Maximum power	1385W
Maximum torque	2.04 Nm
Recommended ESC	XROTOR Pro 60A (4-6S)
Recommended propellers	21×6.3, 22×6.6, 22.1×7.4, 24×7.2
Single rotor take-off weight	2.5kg ~ 3.5kg
Product boxed weight	384g (110 x 110 x 55 mm)

Whats Included

Motor x1
Propeller Plate x1
Prop Adapter x1
46 Adapter Ring x1
3.5mm Bullet Connector x3
Heat Shrinkable Tube x3
M3*8 Motor Screws x4
M4*8 Motor Screws x4
M3*6 Prop Adapter Screws x4
M3*12 Propeller Screws x2
Sticker x2

Applications

Medium to heavy-lift multi-rotor drones requiring 2.55 kg payload capacity per motor
Large-propeller (1824 inch) efficiency-focused builds using 6S to 12S power systems

For compatibility checks (prop/ESC/battery selection) and build support, contact support@ or visit https:///.

Details

The MAD Antimatter M6C10 EEE V2.0 motor layout includes clearly marked dimensions and multiple M3/M4 mounting patterns for fitment planning.

The MAD Antimatter M6C10 EEE V2.0 motor package includes a propeller plate, adapter kit, screws, 5.3mm bullet connectors, and heat-shrink tubing for installation.

The MAD Antimatter M6C10 EEE V2.0 150KV motor is listed at 209g and notes efficiency above 82% for efficient power delivery.

MAD Antimatter M6C10 EEE V2.0 12S test data helps compare thrust, current draw, and power across different throttle levels.

The MAD Antimatter M6C10 EEE V2.0 motor is listed at 200KV with 201g weight and an efficiency rating above 80%.

The MAD M6C10 EEE V2.0 motor is rated at 250KV with a listed 213 g weight and thrust figures up to 10.4 kg for power setup planning.

Test data lists thrust, RPM, power, and current draw for the MAD Antimatter M6C10 EEE V2.0 motor across 12S and 8S setups with different propellers.

The MAD Antimatter M6C10 EEE V2.0 motor is rated at 300KV and lists key setup details like 214g weight, 2535 kgf thrust, and 6S support.

Test data tables provide thrust, current draw, power, and efficiency figures for the MAD Antimatter M6C10 EEE V2.0 motor across multiple prop setups.
